VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price

VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price thumbnail-1
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price thumbnail-2
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price thumbnail-3
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price thumbnail-4
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price thumbnail-5
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price thumbnail-6
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price photo-1
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price photo-2
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price photo-3
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price photo-4
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price photo-5
VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price photo-6
US$ 17,900 - 17,900 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
HANKUI/HUNK/OEM
Place of Origin:
Shandong, China
Type:
Vertical
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANKUI/HUNK/OEM
Place of Origin Shandong, China
Type Vertical
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 1200kg
Dimension(L*W*H) 1520x1300x1800mm
Voltage 380V/50Hz or customized
Condition New
Power(W) 3.7KW
Video

VMC 350 Hobby Universal Cnc Drilling and Milling Machine Price

Specification
Item
Unit
VMC350L
VMC420L
VMC460L
VMC550L
VMC600L
VMC650L
Table Size
mm
690x230
780x260
800x300
800x320
800x360
900x360
Load Capacity
kg
150
150
200
300
350
400
T Slot
3-16-63
16*3
3-14x80
14*3
3-14x115
18*3
X axis travel
mm
350
420
460
550
600
650
Y axis travel
mm
260
260
320
340
400
380
Z axis travel
mm
350
420
460
460
500
460
Distance from spindle center to table
mm
90-440
90-500
90-550
100-560
100-600
100-560
Distance from spindle center to column slide way
mm
294
315
395
410
430
460
Tool shank
BT30
BT30
BT30/40
BT40
BT40
BT40
Spindle speed
rpm
10000
10000
10000
8000
10000
8000
Spindle motor powder
kw
2.2/3.7
2.2/3.7
3.7
5.5
5.5
5.5
Max. diameter of tool
mm
Φ30/φ80
Φ50/φ100
Φ80/φ120
Φ80/φ150
Φ120/φ200
Φ80/φ150
Max length of tool
mm
120
150
200
300
350
300
Max weight of tool
kg
3
4
6
6
8
6
X/Y axis rapid moving speed
mm
20000
20000
20000
20000
30000
20000
Z axis rapid moving speed
mm
20000
20000
20000
20000
30000
20000
Feed Rate
mm/min
1-4000
1-4000
1-4000
1-10000
2.5-3000
1-10000
Positioning accuracy
mm
0.02
±0.01
±0.012
±0.01
0.015
±0.008
Repeated positioning accuracy
mm
0.01/300
±0.005/300
±0.007
±0.004/300
0.0075
±0.003/300
Out dimension
mm
1520x1300x1800
1650x1600x1900
1800x1750x2000
2100x2050x2100
2200x2100x2200
2350x2100x2150
Machine weight
kg
1200
1700
1900
2300
2600
3000

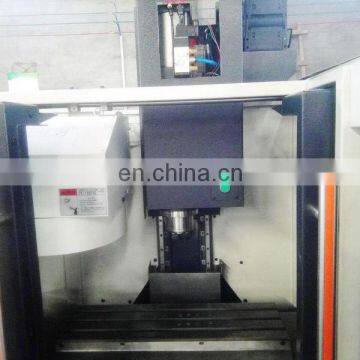

VMC Machine

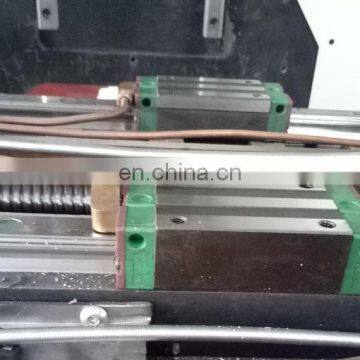

Detailed Image

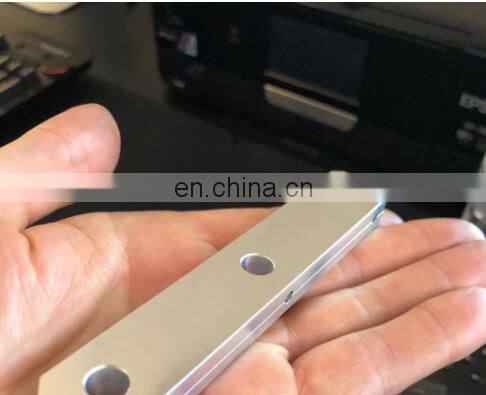

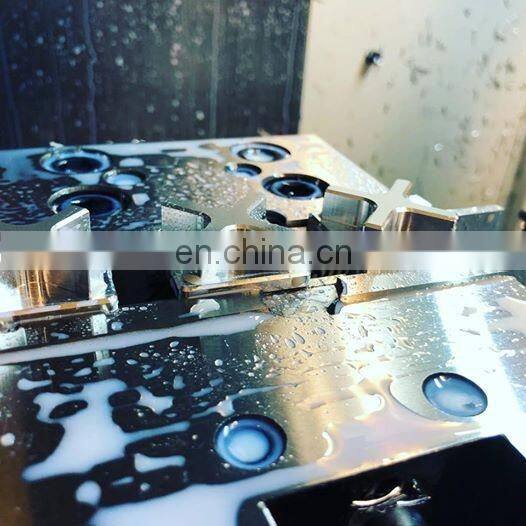

Workpieces Samples:

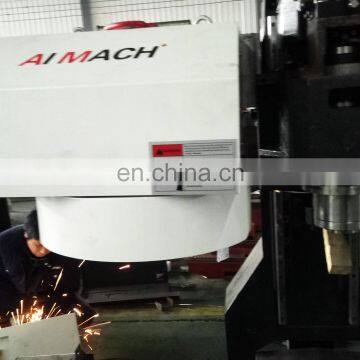

Our Company

Jinan Hankui international trade co., ltd,

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc.

Our Partners

 With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

Certifications

We have passed the ISO9001:2008, CE international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
