VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center

VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center thumbnail-1
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center thumbnail-2
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center thumbnail-3
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center thumbnail-4
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center thumbnail-5
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center thumbnail-6
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center photo-1
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center photo-2
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center photo-3
VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center photo-4

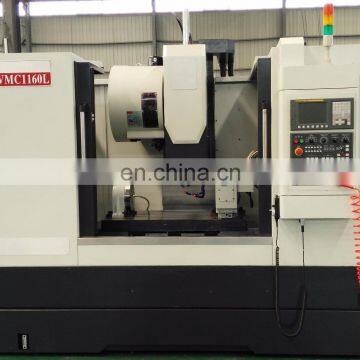

VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center photo-5

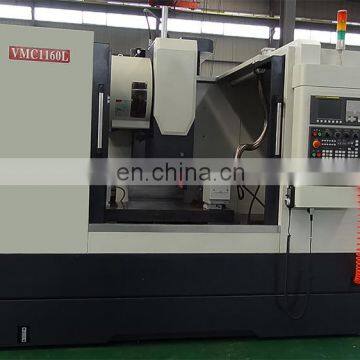

VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center photo-6
US$ 40,500 - 40,500 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
HANKUI/HUNK/OEM
Place of Origin:
Shandong, China
Type:
Vertical
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANKUI/HUNK/OEM
Place of Origin Shandong, China
Type Vertical
Certification ISO CE SGS
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 6800kg
Dimension(L*W*H) 3200*2500*3200mm
Voltage Customer's Requirement
Condition New
Power(W) 11kw
Product Description

VMC 1160L Fanuc Controller Chinese Cnc Vertical Machining Center

Application and Usage:

1. The VMC is suitable for the mechanical processing and mold making.

2. And it can adapt to the processing requirement from rough machining to finish machining.

2. It can also finish many working procedures like milling,drilling,tapping,boring.etc.

Technical Parameter
ITEM
Unit
VMC1160L
VMC1270L
VMC1370
VMC1380L
VMC1580
Table size
mm
1200*600
1360*700
1400*700
1400*800
1700X800
T slot
5-18*100
5-18*122
5-18*140
5-18*140
5-22*135
Load capacity
kg
800
800
1000
1000
1500
X-axis travel
mm
1100
1200
1300
1300
1500
Y-axis travel
mm
600
700
700
800
800
Z-axis travel
mm
600
600
700
700
700
Distance from Spindle center to column slide way
mm
650
785
785
855
810
Distance from Spindle
center to table
mm
120-720
87-687
120-720
150-850
13-830
Tool shank
BT40
BT40/BT50
BT50/155
BT40/BT50
BT50/155
Spindle servo motor power
kw
11
11-15
11-15
11/15
11-15
Max diameter of tool
mm
φ120
φ120
φ120
φ120
φ120
Max length of tool
mm
200
200
300
300
400
Max weight of tool
mm
8
8
12
8
15
X/Y -axis rapid moving speed
mm
36000
24000
16000
30000
16000
Z-axis rapid moving speed
mm
36000
18000
20000
30000
20000
Feed Rate
mm/min
1-10000
20-6000
20-5000
1-10000
20-5000
Positioning accuracy
mm
0.01
0.01
0.01
0.01
0.012
Repeated Positioning accuracy
mm
0.005
0.005
0.005
0.005
0.006
Out dimension
mm
3.2*2.5*3.2
3.3*2.8*3.2
3.4*3.0*3.0
3.4*3.1*3.61
4.5*3.2*3.6
N.W.
kg
6800
8000
10000
12000
13000
VMC Machine Center

Optional configuration:

VMC850L Cnc Machining Center

1)7.5kw servo motor, spindle speed 8000rpm, BT40
2) 24(standard) tools, Disc type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) Roxreth (Germany) linear guide way,
6) ROYAL/POSA/Kenturn (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

VMC1060L Cnc Milling Machine

1)11kw servo motor, spindle speed 8000rpm, BT40
2) 24(standard) tools, Disc type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) Roxreth (Germany) linear guide way,
6) ROYAL/POSA/Kenturn (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

VMC1160L Cnc Milling Machine Center

1)11kw servo motor, spindle speed 8000rpm, BT40
2) 24(standard) tools, Disc type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) Roxreth (Germany) linear guide way,
6) ROYAL/POSA/Kenturn (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

VMC1270L /VMC1380L /VMC1580L

1)15kw servo motor, spindle speed 8000rpm, BT40
2) 24(standard) tools, Disc type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) Roxreth (Germany) linear guide way,
6) ROYAL/POSA/Kenturn (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger


Certifications
Our Company

Jinan Hankui international trade co., ltd,

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc.


 With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
As the detailed machine model
Weight
No more than 15T



Packaging Details
The normal package is wooden box/Steel frame. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
