Home > Products > Vertical Machining Center > VMC1160L Mitsubishi Controller Cnc Vertical Milling Machine with Price

Share|

VMC1160L Mitsubishi Controller Cnc Vertical Milling Machine with Price

FOB Price

USD $40,500 - $40,500

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	HANKUI/HUNK/OEM	Place of Origin:	Shandong, China	Type:	Vertical
Certification:	ISO CE SGS	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 Months
Weight:	6800kg	Dimension(LWH):	320025003200mm	Voltage:	Customer's Requirement
Condition:	New	Power(W):	11kw

Product Description

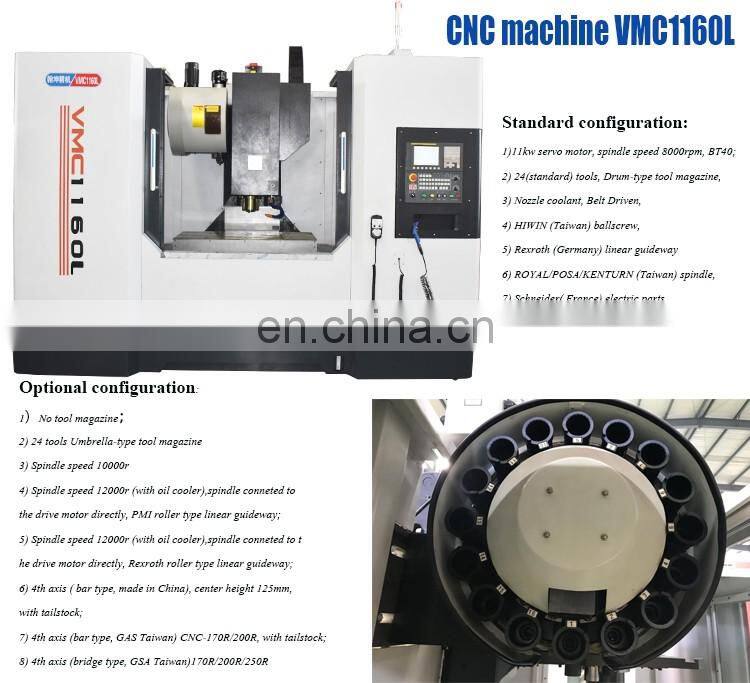

VMC1160L Mitsubishi Controller Cnc Vertical Milling Machine with Price

Application and Usage:

1. The VMC is suitable for the mechanical processing and mold making.

2. And it can adapt to the processing requirement from rough machining to finish machining.

2. It can also finish many working procedures like milling,drilling,tapping,boring.etc.

Technical Parameter

ITEM	Unit	VMC1160L	VMC1270L	VMC1370	VMC1380L	VMC1580
Table size	mm	1200*600	1360*700	1400*700	1400*800	1700X800
T slot		5-18*100	5-18*122	5-18*140	5-18*140	5-22*135
Load capacity	kg	800	800	1000	1000	1500
X-axis travel	mm	1100	1200	1300	1300	1500
Y-axis travel	mm	600	700	700	800	800
Z-axis travel	mm	600	600	700	700	700
Distance from Spindle center to column slide way	mm	650	785	785	855	810
Distance from Spindle center to table	mm	120-720	87-687	120-720	150-850	13-830
Tool shank		BT40	BT40/BT50	BT50/155	BT40/BT50	BT50/155
Spindle servo motor power	kw	11	11-15	11-15	11/15	11-15
Max diameter of tool	mm	φ120	φ120	φ120	φ120	φ120
Max length of tool	mm	200	200	300	300	400
Max weight of tool	mm	8	8	12	8	15
X/Y -axis rapid moving speed	mm	36000	24000	16000	30000	16000
Z-axis rapid moving speed	mm	36000	18000	20000	30000	20000
Feed Rate	mm/min	1-10000	20-6000	20-5000	1-10000	20-5000
Positioning accuracy	mm	0.01	0.01	0.01	0.01	0.012
Repeated Positioning accuracy	mm	0.005	0.005	0.005	0.005	0.006
Out dimension	mm	3.22.53.2	3.32.83.2	3.43.03.0	3.43.13.61	4.53.23.6
N.W.	kg	6800	8000	10000	12000	13000

VMC Machine Center

Certifications

Our Company

Jinan Hankui international trade co., ltd,

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	As the detailed machine model
Weight	No more than 15T
Packaging Details	The normal package is wooden box/Steel frame. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
