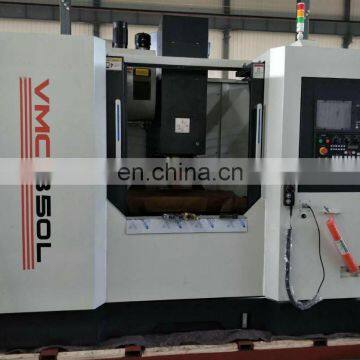

VMC850L China Vmc Cnc Milling Machine Center 3 Axis

It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process. So it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts. It can be matched the four rotary axis , in order to meet the requirements of special parts.

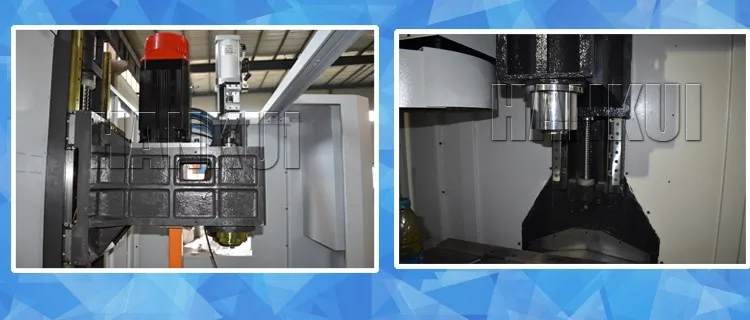

1)Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT250 cast iron; base is box type structure with symmetric compact and reasonable structure which ensures the basic parts of the high rigidity and bending resistance performance; the column is of A shape bridge span, together with bed inside grid reinforced, effectively ensure the rigidity and accuracy of the Z axis strong cutting force.

2)The guide rail of X, Z, Y axis are plastic rectangular guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on. Using automatic forced lubrication, it can improve the accuracy of machine tools.

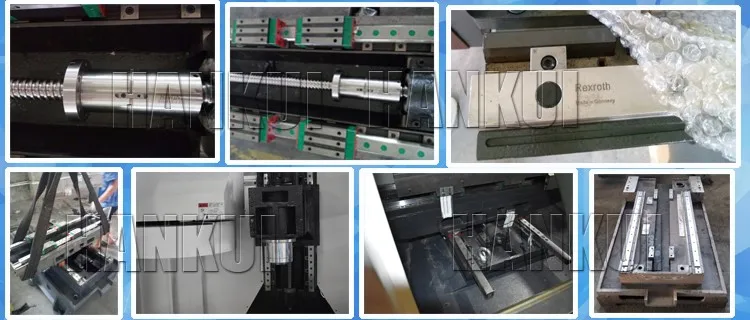

4)The feed of X, Y, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe

Standard configuration:

1.The CNC system: FANUC 0i mate MD
2.The high quality castings: Resin sand casting
3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The bearing: Japan NTN
8.The Internal protection: Total protection

Select the configuration:

1.M70B/M70A Mitsubishi
2.The CNC dividing head

3.NC rotary table

4.The chip cleaner

5.The taiwan famous brand manipulator knife storehouse

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

We have passed the ISO9001:2008 international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
