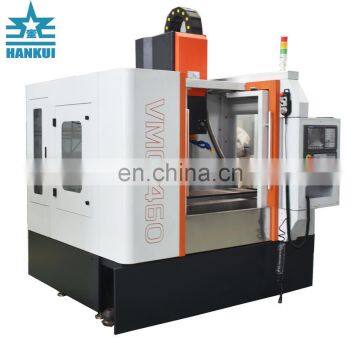

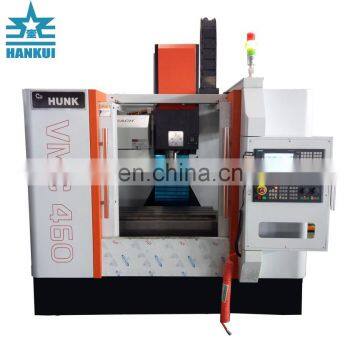

Small Milling Machine for Sale VMC460L
- T/T Credit Card
You May Like
Product Details
| Brand Name | hankui | Place of Origin | Shandong, China | |
| Condition | New |
Product Description
Small milling machine for sale VMC460L
I.Products information:
Optional configuration:
1)No tool magazine;
2)16 tools, Drum-type tool magazine, BT40 spindle;
3) 16 tools, Umbrella-type tool magazine, BT40 spindle;
4) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;
5) 4th axis ( bar type, made in China), center height 110mm, with tailstock;
6) 4th axis ( bar type, made in China), center height 125mm, with tailstock;
7) 4th axis (bar type, GAS Taiwan) CNC-120R/170R, with tailstock;
II.Technical parameter:
ITEM | UNIT | VMC460L |
Table size | mm | 800*300 |
Load capacity | kg | 200 |
T slot |
| 3-14*80 |
X-axis travel | mm | 460 |
Y-axis travel | mm | 320 |
Z-axis travel | mm | 460 |
Distance from Spindle center to table | mm | 90-550 |
Distance from Spindle center to column slide way | mm | 395 |
Tool shank |
| BT30/BT40 |
Spindle speed | rpm | 10000 |
Spindle motor power | kw | 3.7 |
Max. diameter of tool | mm | φ80/120 |
Max. length of tool | mm | 200 |
Max. weight of tool | kg | 6 |
X/Y -axis rapid moving speed | mm | 10000 |
Z-axis rapid moving speed | mm | 10000 |
feed rate | mm/min | 1-4000 |
positioning accuracy | mm | ±0.012 |
repeated positioning accuracy | mm | ±0.007 |
Out dimension | mm | 1850*1800*1900 |
Machine weight | Kg | 2500 |
III.The list of main purchased components
NO. | Name | Model Number | Place of origin | Quentity |
1 | Spindle | BT30(socketφ90) | Taiwan | 1 set |
2 | Boosting unclamping cylinder | 2T | Taiwan | 1 set |
3 | Disc cutter | BT30-10T | Taiwan | 1 set |
4 | X ball screw | 2005/P3 | Domestic | 1 pair |
5 | Y ball screw | 2005/P3 | Domestic | 1 pair |
6 | Z ball screw | 2005/P3 | Domestic | 1 pair |
7 |
| 7602017 TN P4DB | Ha’erbin | 1 pair |
8 | Special bearing | 7602015 TN P4DB | Ha’erbin | 2 pairs |
9 | Double disc coupling |
| Domestic | 3 |
10 | Cooling pump |
| Taiwan | 1 |
11 | Lubrication system | Single track damping type | Nanjing | 1 set |
1 12 | Pneumatic system |
| SMC | 1 set |
13 | Linear rolling guide | XY axis 20/Z axis 35 | Taiwan | 3 set |
IV.Detailed:
Parts:
V.Application:
VI. Test for CNC machine

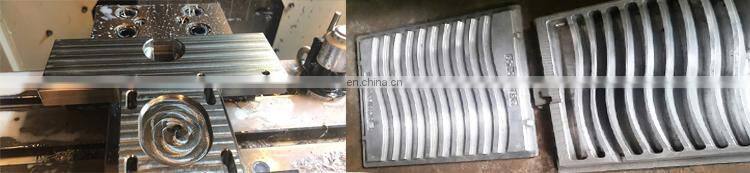

VII. Sample:
VIII. Packing:
IX:Company omformation:
X.Exhibition;
XI.Contact me:
XII.Related products


VMC350L VMC600L VMC850L
