Home > Manufacturing & Processing Machinery > Mining Machinery > Dredger > 1,000 Cbm/h Hydraulic Cutter Suction Dredging Vessel for Sand Dredging Machine for Sale
1,000 Cbm/h Hydraulic Cutter Suction Dredging Vessel for Sand Dredging Machine for Sale
US$ 800,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jin Meng Dredger
Place of Origin:
Shandong, China
Model Number:
JMD500
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
22 Inch Hydraulic Cutter Suction Sand Mining Dredger for Sand Dredging With Cutter Head for SaleUS$ 500,000 - 1,000,000MOQ: 1 Set -
JMD500 20 Inch China Hydraulic Cutter Suction Sand Pump Dredger Vessel for SaleUS$ 1,000,000 - 1,500,000MOQ: 1 Set
-
20 Inch Hydraulic Cutter Suction Dredger Boat Vessel for Soil Dredging in River and Sea for SaleUS$ 700,000 - 1,200,000MOQ: 1 Set
-
JMD500 20 Inch Hydraulic Cutter Suction Sand Dredging Ship Machinery With Spud Carriage for SaleUS$ 400,000 - 1,000,000MOQ: 1 Set
-
JMD600 26 Inch Hydraulic Cutter Suction Sand Dredger Machine and Equipment for Dredging Sea Sand DredgingUS$ 1,000,000 - 1,800,000MOQ: 1 Set
Brand Name
Jin Meng Dredger
Place of Origin
Shandong, China
Model Number
JMD500
Certification
ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
180T
Dimension(L*W*H)
41x8.5x2m
Power Type
Diesel
Condition
New
Draught
150 cm
Dredging Depth
12 m

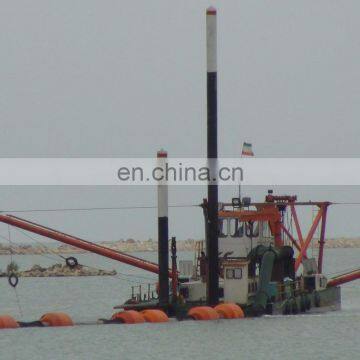

| 1. JMD500 1,000 cbm/h Hydraulic cutter suction dredging vessel for sand dredging machine for sale |
| Item | Speficifications | Remark | |||||
| LOA | 41m | ||||||
| Dredger assembly | 35*7.5*2.0m | Length* width* depth | |||||
| Engine room pontoon | 15.4*3.5*2.0m | Length* width* depth 1 pc | |||||
| Side pontoon | 27*2.0*2.0m | Length* width* depth 2 pcs | |||||
| Structure | Can be dismantle and assemble at working site | ||||||
| Item cutter suction dredging vessel | Speficifications | ||||
| Water flow | 3,500m3/h | ||||
| Max. capacity | 1050 cbm/h | ||||
| Slurry concentration | 30% | ||||
| Discharge distance | 1,500m | ||||
| 45° dredging depth | 12m | ||||
| Draft | 1.7m | ||||
| Full load displacement | 310T | ||||
| Dredger weight | 172T | ||||
| Spud carriage weight | 15T | ||||
|
2. Production for main pontoon and side pontoons Custom building according to environment of working place |

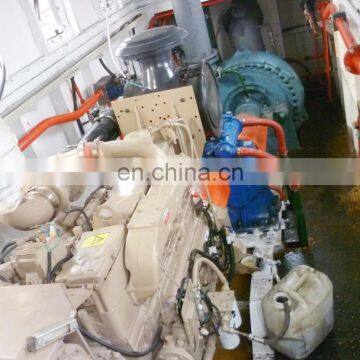

| 3. Technical specifications for main engine and auxiliary engine on dredger |
| NO. | Main Diesel engine | Speficifications | ||||
| 1 | Power | 895KW | ||||
| 2 | Model | KTA38-M2 | ||||
| 3 | Speed | 1,800r/min | ||||
| NO. | Auxiliary engine | Speficifications | ||||
| 1 | Power | 298KW | ||||
| 2 | Model | NT855-M | ||||
| 3 | Speed | 1,800r/min | ||||
| 4. Technical Specifications for spud carriage to increase capacity |
| NO. | Spud carriage | Technical Speficifications | ||||
| 1 | Length | 7m | ||||
| 2 | Width | 5m | ||||
| 3 | Height | 2.0m | ||||
| 4 | Diameter cylinder | 120mm | ||||
| 5 | Travel | 4m | ||||
| 5. Technical Specifications for dredging pump |
| NO. | Dredging pump | Speficifications | ||||
| 1 | Manufacturer | Kinda Shijiazhuang | ||||
| 2 | Water flow | 3,500m3/h | ||||
| 3 | Slurry concentration | 20-30% | ||||
| 4 | Maximum capacity | 1,050cubic meter/h | ||||
| 5 | Discharge distance | 1,500m | ||||
| 8 | Diameter impeller | 1,270mm | ||||
| 9 | Blade quantity | 5 blades | ||||
| 10 | Material | Cr27 | ||||
| 6. Images for hydraulic system |
| 7. Images for hydraulic winch |

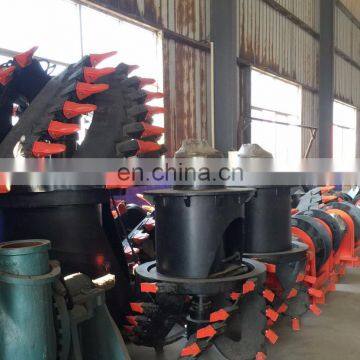

| 8. Images for cutter head |
| 9. Images for generator on dredger |
| 10. Images for Spud and General arrangement for dredger |
| 11. Deck on crane for your references |
