JMD500 20 Inch China Hydraulic Cutter Suction Sand Pump Dredger Vessel for Sale
US$ 1,000,000 - 1,500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jin Meng Dredger
Place of Origin:
Shandong, China
Model Number:
JMD500
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20 Inch Hydraulic Cutter Suction Dredger Boat Vessel for Soil Dredging in River and Sea for SaleUS$ 700,000 - 1,200,000MOQ: 1 Set -
JMD500 20 Inch Hydraulic Cutter Suction Sand Dredging Ship Machinery With Spud Carriage for SaleUS$ 400,000 - 1,000,000MOQ: 1 Set
-
JMD600 26 Inch Hydraulic Cutter Suction Sand Dredger Machine and Equipment for Dredging Sea Sand DredgingUS$ 1,000,000 - 1,800,000MOQ: 1 Set
-
NEW 18 Inch Hydraulic Cutter Suction Dredger Equipment for Sand Dredging for SaleUS$ 600000.00 - 15.00MOQ: 1 Set
-
Canal Pond River Sand Dredging Equipment With Chinese Cutter Suction Dredger 16m IndonesiaUS$ 700,000 - 1,000,000MOQ: 1 Set
Brand Name
Jin Meng Dredger
Place of Origin
Shandong, China
Model Number
JMD500
Type
Cutter Suction Dredger
Certification
ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
180T
Dimension(L*W*H)
39x8.5x2.5m
Power Type
Diesel
Condition
New
Draught
170 cm
Dredging Depth
12 m
| 1. JMD500 20 inch China hydraulic cutter suction sand pump dredger vessel for sale |
| Item | Speficifications | Remark | |||
| Water flow | 3,500m3/h | ||||
| Max. capacity | 1050 cbm/h | ||||
| Slurry concentration | 30% | ||||
| Discharge distance | 1,500m | ||||
| 45° dredging depth | 12m | ||||
| Draft | 1.7m | ||||
| Full load displacement | 310T | ||||
| Dredger weight | 172T | ||||
| Spud carriage weight | 15T | ||||
| Total installed power of dredger | 1,193kw/1,622HP | ||||
|
The design, construction, quality inspection is according to the standards and regulations of CCS. The steel plates are CCSB plates which meet the requirements of CCS. | |||||||
| 2. Jin Meng Dredger sold to different countries in the world |
| Model | Pipe dia. | Working capacity | Dredging depth | Discharge distance |
| JMD250 | 250mm | 165 cbm/h | 6m | 800m |
| JMD450 | 450mm | 600 cbm/h | 12m | 1,200m |
| JMD500 | 500mm | 1,050 cbm/h | 15m | 1,500m |
| JMD600 | 600mm | 1,500 cbm/h | 15m | 2,000m |
| JMD700 | 700mm | 2,100 cbm/h | 17m | 2,000m |
| JMD500D | 500mm | 1,050 cbm/h | 20m | 2,000m |
| JMD600D | 600mm | 1,500 cbm/h | 20m | 2,000m |
|

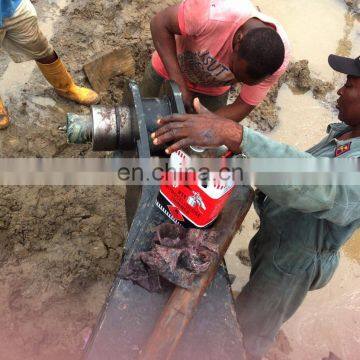

3. Factory images and engineer after sale service in the working place
|
| 4. Engine on the dredger boat can be Deutz engine or Cummins engine according to requirement |
| 5. Hydraulic winches on sand pump dredger vessel/Italy motor |

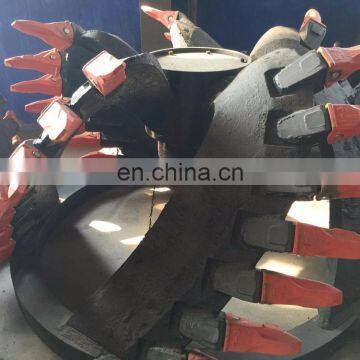

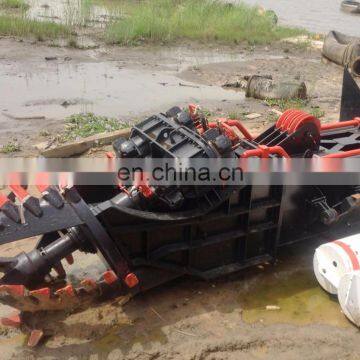

| 6. Cutter head and spud in the working place |
| 7. Pulleys on dredger |
| 8. NEW anchor on the sand pump dredger |
| 9. Hydraulic cyclinder on the sand pump dredger |

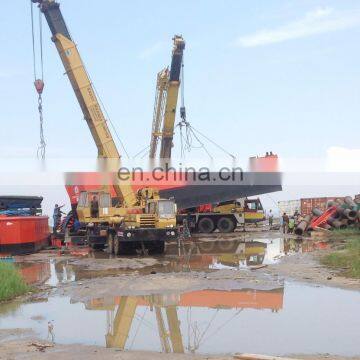

| 10. Cutter suction sand pump dredger boat is installation and assembly in working place |
| 11. Cutter suction sand pump dredger pushed into the water |
| 12. Cutter suction sand pump dredger tested in the working place |
| 13. Cutter suction sand pump dredger working in the working place |
| 14. Pipeline and floater and rubber hose for cutter suction dredger |
| 15. 300HP to 400HP work boat with hydraulic crane on deck |
| Welcome to visit our factory and workshop in China for dredger business negotiating |
