1. Introduction and detailed technical specifications for for NEW JMD600 26 inch hydraulic cutter suction SAND dredger for sale, sand dredging or clay disilting is available |
Water flow |
6000m3/h |
Solid sand capacity |
1,800cbm/h |
Max. dredging depth 45° |
14m |
Discharge distance |
2000m |
LOA |
41m |
Dredger after assembly |
Length* width* depth 31*9.3*2.75m |
Engine room pontoon |
Length* width* depth 18.15*3.7*2.75m |
Side pontoon |
Length* width* depth 28*2.75*2.75m |
Structure |
Can be dismantle and assemble at working site |
Average draught |
1.7m |
Diameter suction pipeline |
500mm/20inch |
Diameter discharge pipeline |
650mm/26inch |
Main engine power |
1740kw |
Rotate speed |
1650r/min |
Auxiliary engine power |
450kw |
Rotate speed |
1500r/min |
Hydraulic winch |
240 kn |
Hydraulic cutter power |
300 kw |
Diameter cutter head |
2050mm |
Diameter spud cylinder |
160 mm |
Spud diameter and length |
Φ720mmx21m |
Emergency genset power |
30 GF Cummins |
Max. oil consumption |
336L/H |

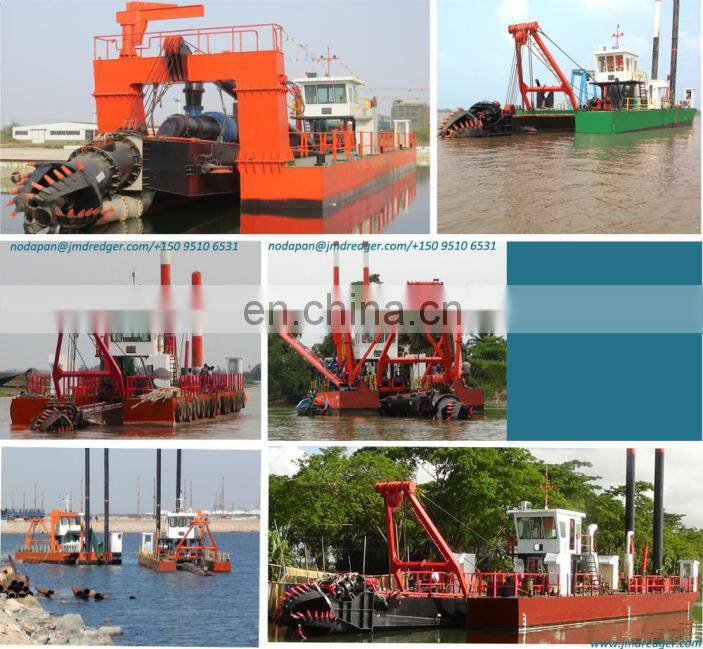

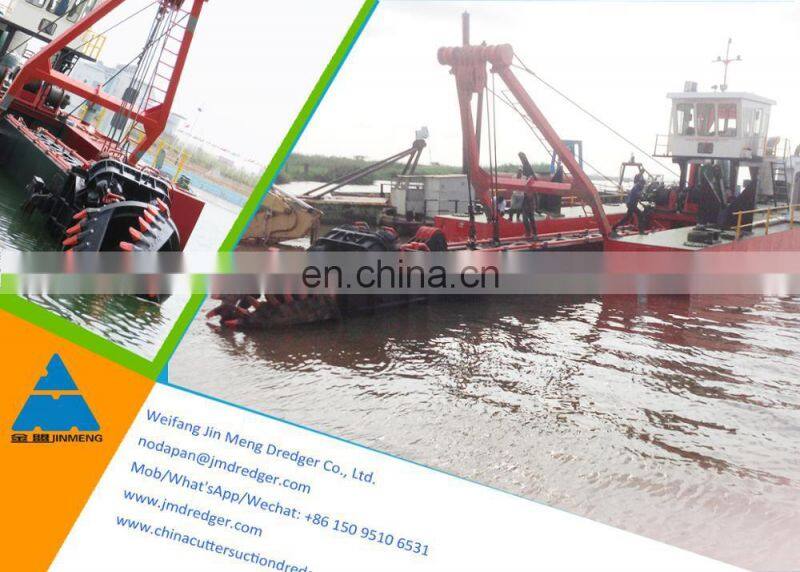

2. Cutter suction sand dredger equipment sold to different countries in the world |
Special dredger can be custom building according to requirement: |
A. Solid capacity per hour or total volume; |
B. Dredging depth underwater, which referred to water depth+sand layer depth |
C. Discharge distance, when distance is more than 2.5km, booster station are available for big distance |

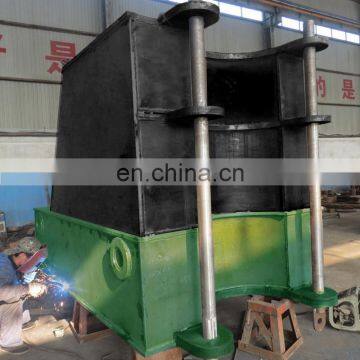

3. JMD600 26 cutter sucton sand dredger equipment production in the workshop |
| 4. Diesel engine can be Cummins engine or Deutz engine accordingly |
|

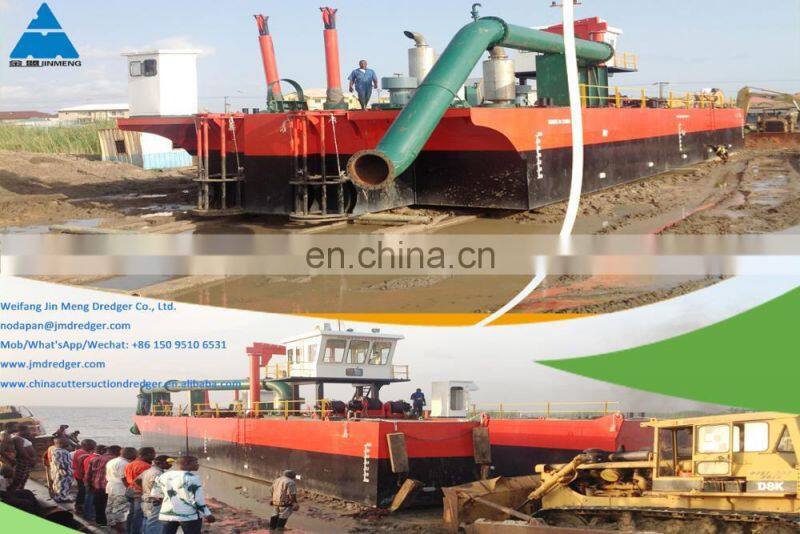

5. Dredger pushed into water after assembly in the working place If dredger is transported in bulk, then will be assembly in the working place; After assembly, will be pushed into water for working. |
|
6. Sand dredger assembly in the working place, 6 to 8 workers are required for installation; 1 captain for operation and 1 engineer for engine room maintaining are required. |
|
7. Sand dredger transportation in a unit COMPLETE TO THE PORT The dredger will be transported piece by piece from factory, then assembly in the Port of China, after that will be put in the bulk vessel as a complete one for transportation; When arrived in the appointed port, can be tugged to working place directly. |
|
8. Hydraulic system for cutter suction sand dredger for sale The hydraulic system is Rexroth of joint venture |
|

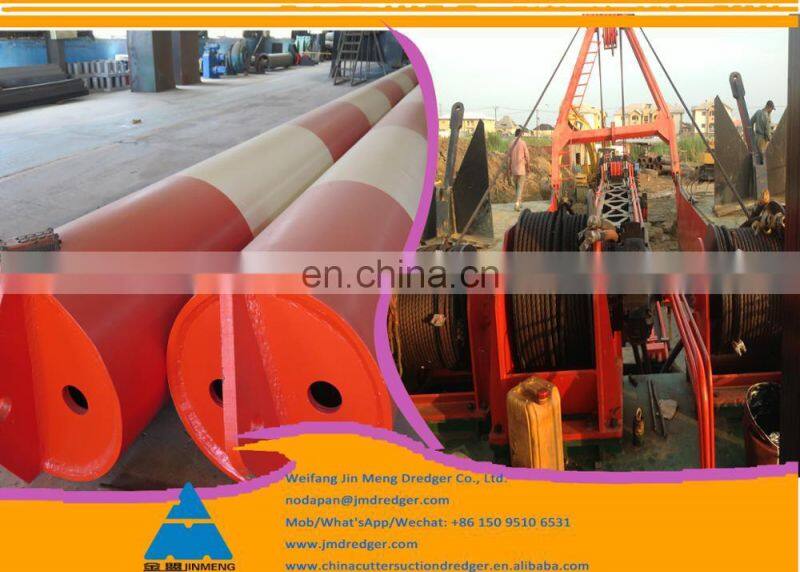

9. Hydraulic winches and spud Motors of hydraulic winches are from Sari Italy Joint venture; Material for spud is hard material Cr24, and standard contruction. |
|

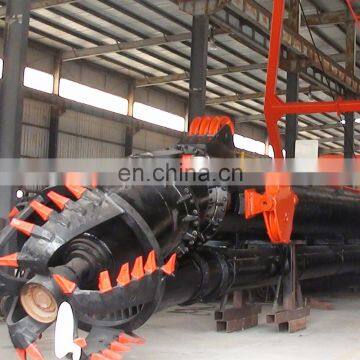

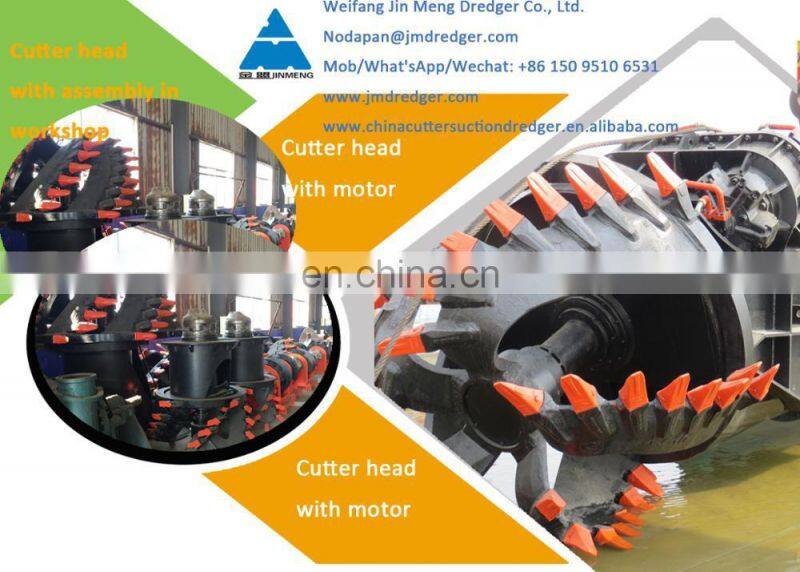

10. Cutter head with teeth Cutter head is new designed by the senior engineer for working capacity better; Cutter teeth is famouse brand and can be replaced after wear-out; Cutter motore is from Sari Italy Joint Venture. |
|
11. Pulley for wire rope Material for pulley is according to the marine using standard. |
|

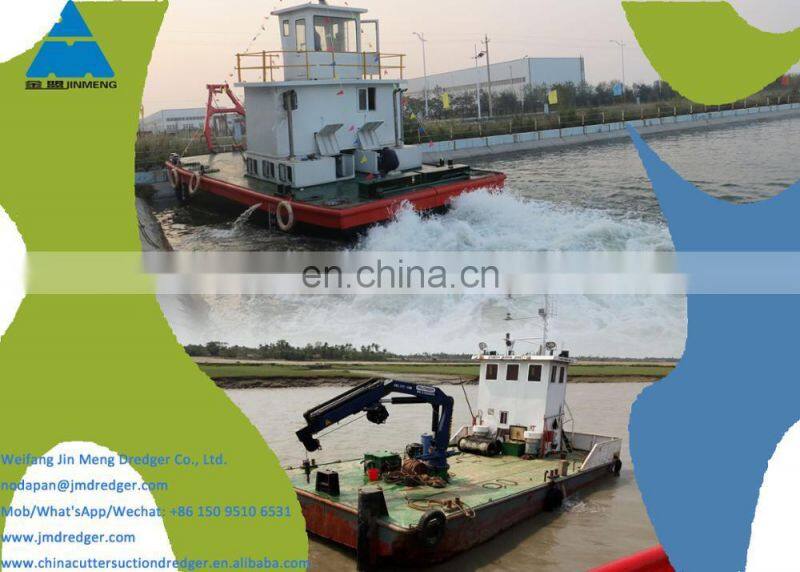

12. 300HP to 400HP work boat for servicing the dredger Engine of the work boat is Cummins engine or Deutz engine per requirement; Structure is dismantle type and can be assembly in working place; Can be service for dredger tugging, pipeline connection, oil and water transportation and aso on |
|
13. After sale service on the working palce 2 experienced and skilled engineers will be sent to the working place for installation and operation training. 1 translator will be sent too if required; Time for after sale service is 30 days per contract. |
| 14. Company profile for Jin Meng Dredger |
|
Professional manufacturer for cutter suction dredger: a. Desiging per condition of working place; b. Contruction and building with standard of marine using dredger; c. Dismantle or complete unit transportation to the destination port; d. Dredger assembly (transported piece by piece) in the working place by engineers; e. Dredger testing with water before working; f. Training for operational for the buyer's captain for free; g. Free maintaining for dredger at any time when customer required; h. Spares are available at any time when customer required; i. Problem solution at any time when customer have.
Jin Meng Dredger hope to have a cooperation with you in the long future. Profession Designing Development Responsibility
|
