Hydraulic cutter head suction dredger from china for soil dredging for sale from river or sae
- 15 Set / Sets per Month
- Tianjin Port
- T/T Credit Card
- 1,000 cbm/h Hydraulic cutter suction dredging vessel for sand dredging machine for sale
- 22 inch hydraulic cutter suction sand mining dredger for sand dredging with cutter head for sale
- JMD500 20 inch China hydraulic cutter suction sand pump dredger vessel for sale
- 20 inch hydraulic cutter suction dredger boat vessel for soil dredging in river and sea for sale
- JMD500 20 inch Hydraulic cutter suction sand dredging ship machinery with spud carriage for sale
- JMD600 26 inch hydraulic cutter suction sand dredger machine and equipment for dredging sea sand dredging
Product Details
Brand Name: | Jin Meng Dredger | Place of Origin: | Shandong, China | Model Number: | JMD500 |
Type: | Cutter Suction Dredger | Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 Year | Weight: | 180T | Dimension(L*W*H): | 39x8.5x2m |
Power Type: | Diesel | Condition: | New | Draught: | 150 cm |
Dredging Depth: | 12 m |
Product Description
1. Hydraulic cutter head suction dredger tested in the working place with technical specifications |
Water flow | 3,500m3/h | |
Maximum capacity | 1,050cbm/h | |
Discharge distance | 1,500m | |
Dredging depth | 12m | |
Main Engine | 920KW | Deutz Engine |
Hydraulic Auxiliary Engine | 258KW | Deutz Engine |
Emergency Generator | 30KW | Deutz Engine |
Total Power | 1223KW |
|
Oil Consumption | 198L/H |
|
Hull Dimension | LOA*W*D | 36mx7.9mx2.2m |
2. Cutter head suction dredger production in the workshop |
The design, construction, quality inspection is according to the standards and regulations of CCS. The steel plates are CCSB plates which meet the requirements of CCS. | |||||||

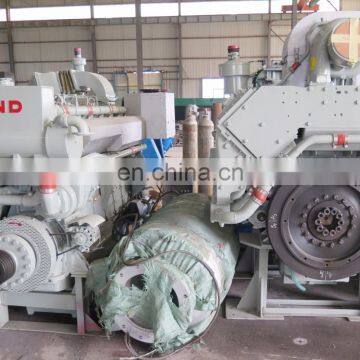

3. Diesel engine/Deutz engine on the cutter head suction dredger |
NO. | Main Diesel engine | Speficifications | ||||
1 | Power | 920KW to 1240KW | ||||
2 | Model | TVBX | ||||
3 | Speed | 1,800r/min | ||||
4 | No. of cylinders | 12 pcs |
4. Plate thickness on main pontoon and side pontoons |
Main pontoon and side pontoon | Thickness | ||||
Steel plate on deck | 10mm | ||||
Steel plate on bottom | 10mm | ||||
Steel plate on side | 10mm | ||||
Steel plate on front | 20mm | ||||
Steel plate on back | 16mm |
5. Dredging pump on the cutter head suction dredger |
Dredging pump | Speficifications | Remark | |||||
Manufacturer | Kinda Shijiazhuang | ||||||
Water flow | 3,500m3/h | ||||||
Slurry concentration | 20-30% | ||||||
Maximum capacity | 1,050cubic meter/h | ||||||
Discharge distance | 1,500m | ||||||
Diameter impeller | 1,270mm |
6. Hydraulic winch of swing winch and bridge winch |
NO. | Bridge winch and swing winch | Speficifications | ||||
1 | Diameter drum | 457mm | ||||
2 | Wire rope speed | 0-30m/min | ||||
3 | Working pressure | 16Mpa | ||||
4 | Dia.wire rope | 24mm | ||||
5 | Length wire rope | 130m | ||||
6 | Force | 100KN | ||||
7 | Quantity | 1 set |
7. Spud carriage to increase the working capacity |

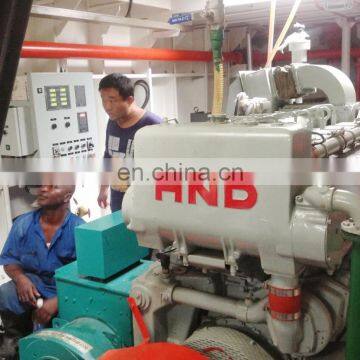

8. Generator on the cutter head suction dredger |
9. Spud carriage on the cutter head suction dredger |
10. After-sale service on the working place for installation and training operation |
