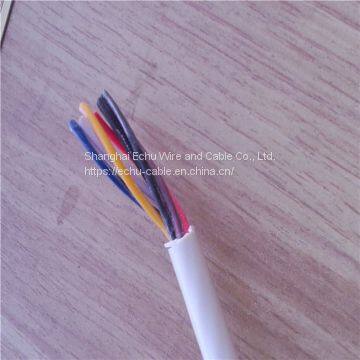

Help CenterShield UL2464 3*18awg Computer Cable
Related Products
-
UL2464 4*22awg Computer CableUS$ 0.1 - 30.5MOQ: 500 Meters -
UL2464 4*22awg Computer CableUS$ 0.1 - 30.5MOQ: 500 Meters
-
Shield and Twist UL2464 4*22awg Computer CableUS$ 0.1 - 30.5MOQ: 500 Meters
-
16mm2 Yellow/Green Color Earth Wire UL1015 6AWGUS$ 0.1 - 30.5MOQ: 500 Meters
-
16mm2 Yellow/Green Color Earth Wire UL1015 6AWGUS$ 0.1 - 30.5MOQ: 500 Meters
Applications:
As measuring, monitoring and control cable, it is suitable for the Places of machine tool manufacturing, complete equipment insta-Llation engineering, power station, refrigeratory equipment, OA Equipment, data processing system and heating and aircondition System.
Propertise:
Heat resistance, good insulation property, excellent chemical perfor-Mance, extruding sheath
Standards:
Conductor: fine strands of tinned copper wire, exellent corrosion resistance
Insulation: special PVC
Colour: Acc. To UL758
Sheath: 80℃ heat-resistant flame-resistant PVC, pass VW-1 flame testing
Colour: black (RAL 9005) green(RAL 6018)
Orange(RAL 2003) purple(RAL 4001)
Or refer to customer’s requirement.
Technical data:
Rated voltage: 300V
Test voltage: 2000V
Temperature range:
Fixed Installaion: -40℃ ----- +80℃
Flexing Installation: -10℃---- +80℃
The minimum bending radius:
Fixed Installation: 4X external diameter
Flexing installation: 15X external diameter
