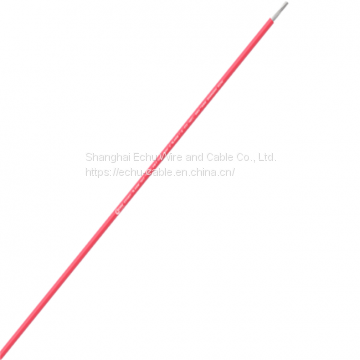

UL1015 Tri-rated Cable UL1015 6AWG

Description:
Related temperature: 105℃
Related voltage: 600V

Reference standards: UL Subject 758 & UL 1581

Tinned or bare, stranded or solid copper conductor
Insulation: PVC insulation
Uniform insulation thickness to ensure easy stripping and cutting
Passes UL VW-1 flame tests
Application:

For internal wiring of electronic and electric equipment.


This standard covers single core PVC insulated flexible electrical cables of rated voltage 600/1000V for switchgear and control gear wiring.

British Standard BS6231 Type CK specifications require this high temperature cable to operate at a maximum temperature of 90 ℃ in continuous use, however tri rated cable has a maximum operating temperature of 105 ℃ in order to also comply with UL758 and CSA 22.2 No.210.

Tri-rated cable, panel wire manufactured to BS6231 Type CK, should not be confused with other cable manufactured to BS6231 Type BK which has a maximum conductor operating temperature of 70 ℃.

Canadian Standards Association - CSA 22.2 This standard specifies the requirement for flexible cords, elevator cables, and hoistway cables rated to a maximum of 600V.

UL 758 This standard specifies the requirements for flexible cords, elevator cables, electric vehicle cables, and hoistway cables rated up to 600V.

Our cables are recognised to UL style:
- UL 1015 cable size: 26 AWG - 550 kcmil
- UL 1283 cable size: 8 AWG - 2 AWG
- UL 1284 cable size: 8 AWG - 550 kcmil
