Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > CNC Automatic 45 Degree Aluminum Angle Cutting Machines With PLC Touch Screen

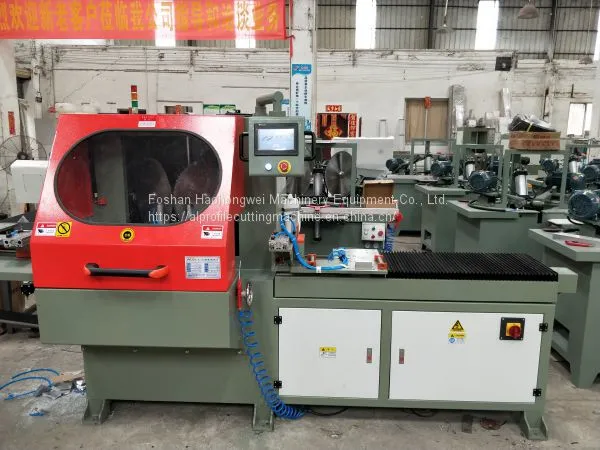

CNC Automatic 45 Degree Aluminum Angle Cutting Machines With PLC Touch Screen
US$ 14600 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haohongwei
Place of Origin:
China
Model Number:
HJ-885E
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
20 days
Related Products
-
Aluminum Copper Profile Cutting Saw Machine Cutting MachineUS$ 4200 - 4340MOQ: 1 Set -
Aluminum Window Door Corner Combining Machine /Aluminum Cutting Machine Double Mitre SawUS$ 4200 - 4340MOQ: 1 Set
-
Aluminum Profile Cutting Saw Aluminium Window MachineUS$ 4000 - 4500MOQ: 1 Set
-
Double-head Precision Cutting Saw Aluminum Windows and Doors EquipmentUS$ 4000 - 4500MOQ: 1 Set
-
Metal Cutting Band Saw Machine Cheap Price, Small ToleranceUS$ 4000 - 4500MOQ: 1 Set
Brand Name
Haohongwei
Place of Origin
China
Model Number
HJ-885E
After-sales Service Provided
No overseas service provided
Warranty
12 month
Weight
980KG
Dimension(L*W*H)
3900×1250×1730mm
Voltage
380V 50HZ
Rated Power
2.2KW×2
Condition
New
Parameter：
| Sawing angle | 45º×2 |
| Maximum sawing width | 105mm |
| Cutting height | 40mm |
| transfer method | Precision ball screw |
| Machining length accuracy | ±0.1mm |
| Pressing form | pneumatic |
| Feeding speed | 40mm/s |
| Feeding method | CNC servo feeding |
| control method | PLC touch screen |
| Spindle speed | 3800r/min |
| rated power | 5600W |
| input power | 5600W |
| Saw blade motor power | 2.2KW*2 |
| Corner motor power | 0.37KW |
| servo motor | 0.75KW |
| working pressure | 0.6-0.8mpa |
| Operating Voltage | 380V+Zero Line Three-Phase Four-Line 50HZ |
| Machine weight | 980KG |
| Maximum feed length (segmentable feed) | 1000mm (any length is OK) |
| Blade cooling method | spray |
| Saw blade size | Φ405×Φ25.4mm×3.2×120T |
| working desk size | 1000*210mm |
| Dimensions L×W×H | 3900×1250×1730mm |
Our Service:
A. Pre-sales service
1. Indicate the specified function and equipment configuration.
2. Professional feedback on all kinds of technical questions.
3. Help to meet the needs of the individualized product. For example,OEM,ODM.
4. Welcome to visit our factory at any time.
B. On-purchase service
1. Provide the product performance and technical specification document sheets.
2. Confirm the changes or special requirements in the production process.
3. Welcome to visit our factory to inspect.
C. After-sales service
1. Provide installation, commissioning, operation, maintenance and other guidance.
2. Provide easy-wearing parts and common used spare parts.
3. 24 hours on line service.
4. Engineers available to service machinery overseas.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2017
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
