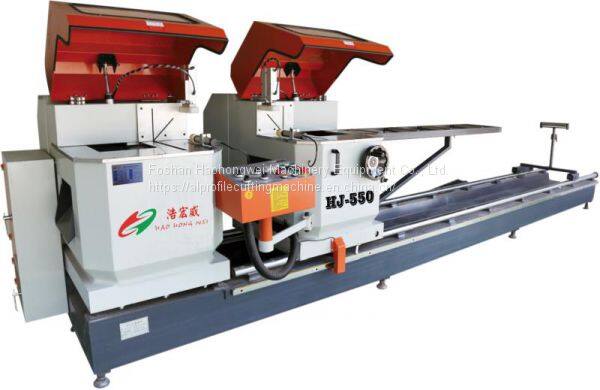

Help Center380v Double Blade Cutter Machine Double Head Cutting Machine 1600kg
Related Products
-
2-3m/min Double Head Cutting Saw Aluminium CNC Cutting Machine 3KW*2US$ 9800 - 10000MOQ: 1 Set -
0-3m/min Double Head Mitre Saw / Aluminium Cut Off Saw High SpeedUS$ 9800 - 10000MOQ: 1 Set
-
45 Degree Aluminium Cutting Saw Double Head Saw 2840R/minUS$ 9800 - 10000MOQ: 1 Set
-
Aluminium Cutting Saw Machine Aluminium Door And Window Making MachineUS$ 9800 - 10000MOQ: 1 Set
-
Aluminium Double Mitre Saw Aluminium Fabrication Cutting MachineUS$ 9800 - 10000MOQ: 1 Set
Specification: cutting machine aluminum profiles
Used for Aluminum profile accurate and efficient CNC control system
Ensures a high accurate re-load position and convenient man operation work.
Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
Hydraulic cylinder ensured the stable speed adjusting and saw blade working.
Cutting length is controlled by computer control system WITH TOUCH SCREEN to locate fast and precisely.
MITSUBISHI CNC Control System for cutting Optimizing with screen output.
Automatic angle cutting change in 45° and 90°.
Carbide saw blade for a high quality cutting and life.
Safety system of shield can ensure the safe operation of man working
Technical Parameter:
cutting angle | 45°90° |
| Length: 405-4550mm | |
| Sawing range | High / wide 230*190 (90 degrees) |
| 230*125 (45 degrees) | |
| Main motor power | 3KW*2 |
| Main motor speed | 2840R/min |
| Saw size | Φ550*30mm*124T |
| Feed speed of saw blade | 0-3m/min |
| Return speed of saw blade | 2-3m/min |
| Working pressure | 0.6-0.8mpa |
| working voltage | 380v |
| Outline size (length, width and height) | 5750*1300*1360mm |
| weight | 1600kg |
Send Inquiry to This Supplier
