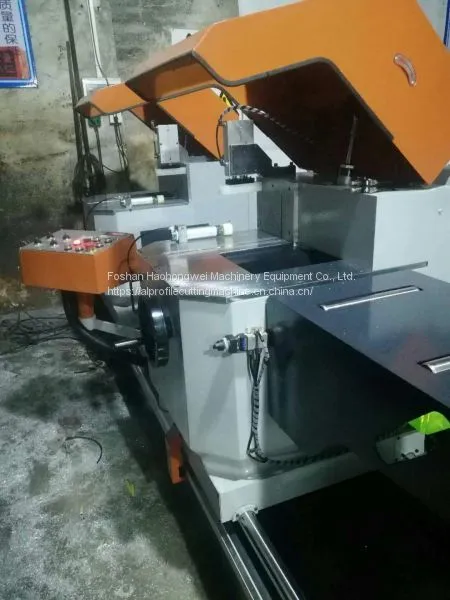

Help Center45 Degree Aluminium Cutting Saw Double Head Saw 2840R/min
Related Products
-
Aluminium Cutting Saw Machine Aluminium Door And Window Making MachineUS$ 9800 - 10000MOQ: 1 Set -
Aluminium Double Mitre Saw Aluminium Fabrication Cutting MachineUS$ 9800 - 10000MOQ: 1 Set
-
Aluminium Double Mitre Saw Aluminium Fabrication Cutting MachineUS$ 9800 - 10000MOQ: 1 Set
-
Precision Aluminium Frame Cutting Machine Aluminium Fabrication MachineryUS$ 9800 - 10000MOQ: 1 Set
-
2 Head Aluminium Mitre Saw Aluminium Profile CNC MachineUS$ 9800 - 10000MOQ: 1 Set
Specification:
cutting machine aluminum profiles
Used for Aluminum profile accurate and efficient CNC control system
Ensures a high accurate re-load position and convenient man operation work.
Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
Hydraulic cylinder ensured the stable speed adjusting and saw blade working.
Cutting length is controlled by computer control system WITH TOUCH SCREEN to locate fast and precisely.
MITSUBISHI CNC Control System for cutting Optimizing with screen output.
Automatic angle cutting change in 45° and 90°.
Carbide saw blade for a high quality cutting and life.
Safety system of shield can ensure the safe operation of man working
Technical Parameter:
|
cutting angle |
45°90° |
| Length: 405-4550mm | |
| Sawing range | High / wide 230*190 (90 degrees) |
| 230*125 (45 degrees) | |
| Main motor power | 3KW*2 |
| Main motor speed | 2840R/min |
| Saw size | Φ550*30mm*124T |
| Feed speed of saw blade | 0-3m/min |
| Return speed of saw blade | 2-3m/min |
| Working pressure | 0.6-0.8mpa |
| working voltage | 380v |
| Outline size (length, width and height) | 5750*1300*1360mm |
| weight | 1600kg |
