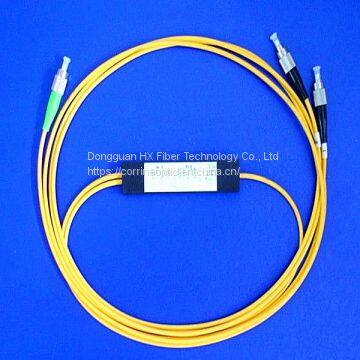

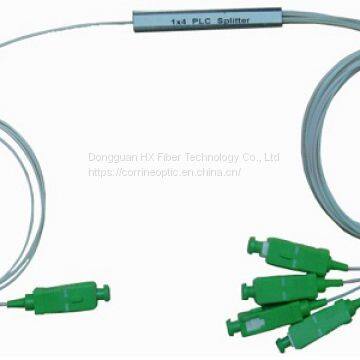

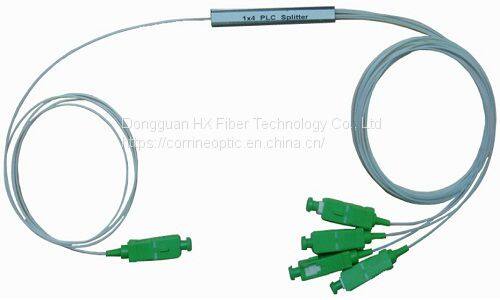

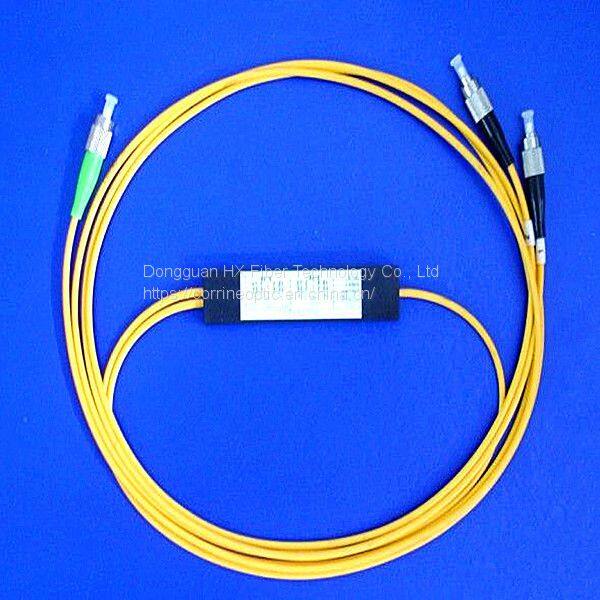

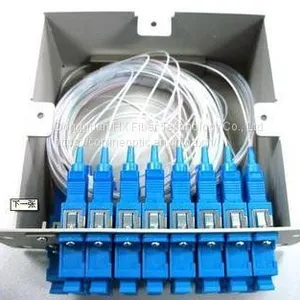

PLC Splitter
l Introduction

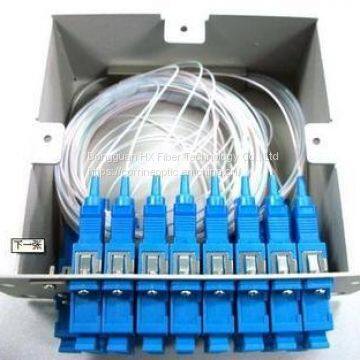

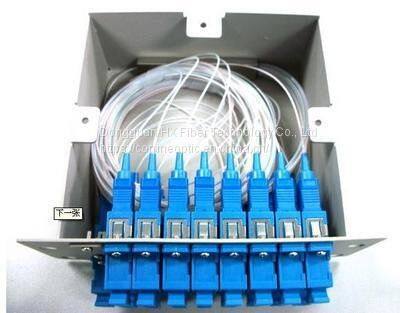

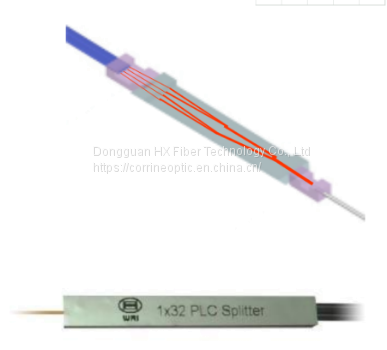

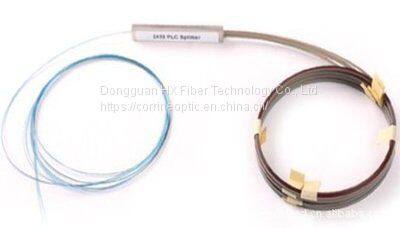

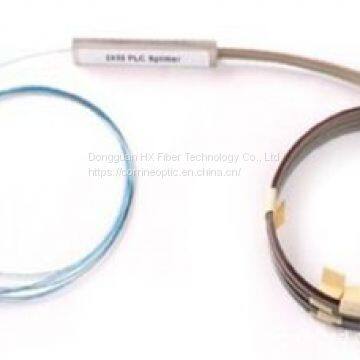

The optical splitters mainly have the following types: optical fiber array, tray type, modular type, insert type, micro type, bare fiber type, rack type, etc. The following product introductions are for reference only. For specific customization, please contact our salesman directly.
² Characteristics
Low insertion loss (IL)
Low polarization dependent loss (PDL)
High uniformity
Broad operating wavelength range
Excellent performance at low temperature
Compact structure and small size.
² Application
The optical Splitter can be encapsulated in wiring products to provide a more flexible solution.
It apply to both indoor and outdoor.
² Main parameters
parameters |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|||||||||
operating wavelength(nm) |
1310±20/1490±10/1500±20 |
||||||||||||||||||
insertion, max |
7.2 |
10.6 |
13.7 |
17.0 |
21.2 |
7.6 |
11.0 |
14.6 |
17.6 |
21.2 |
|||||||||
uniformity of insertion loss, max (dB) |
0.7 |
0.8 |
1.2 |
1.4 |
2.0 |
0.8 |
1.0 |
1.3 |
1.6 |
2.2 |
|||||||||
polarization dependent loss , max (dB) |
0.25 |
0.25 |
0.25 |
0.25 |
0.35 |
0.25 |
0.25 |
0.25 |
0.25 |
0.45 |
|||||||||
return loss, UPC min(dB) |
≥55 |
||||||||||||||||||
directivity, min (dB) |
≥55 |
||||||||||||||||||
operating temperatures |
-40°C~+85°C |
||||||||||||||||||
fiber type |
G.625D/G.657A（depend on customer’s request） |
||||||||||||||||||
