l Description

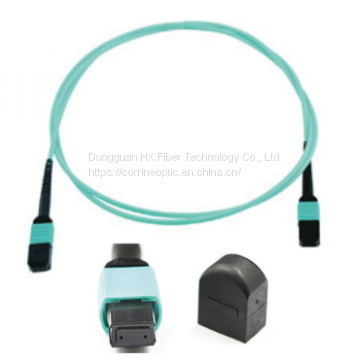

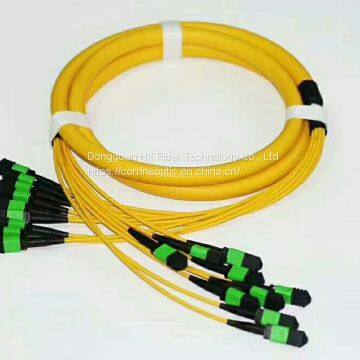

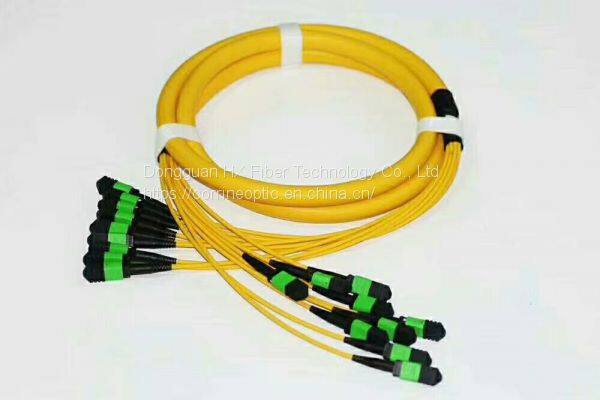

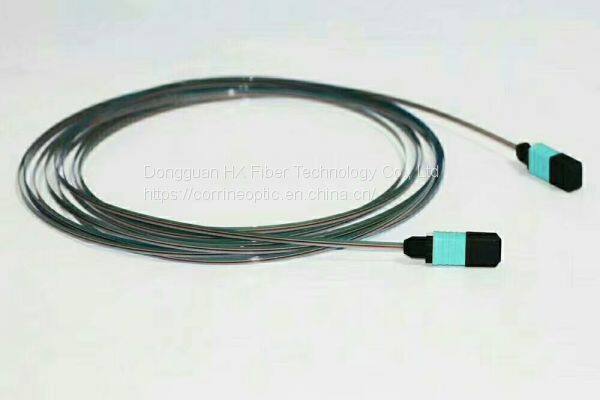

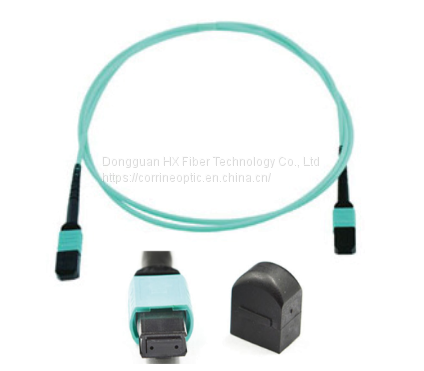

Prefabricated high-precision MPO/MPT connectors at both ends of the cable for multi-core fiber connection for cable extension and internal wiring, Standard high precision MPO/MTP fiber optic patch cords are used;100% factory pre-terminated and tested, The traction handle can be configured and the construction on site is convenient; Quickly configure and network to reduce on-site installation time; Fast upgrade to support parallel transfer system applications; The cable is loose tube structure and the outer sheath is available with OFNR, OFNP or LSZH.
l characteristics
1. Polarity available in Type A, Type B, Type C, Type R.
2. Insertion loss type available in Standard, Elite / Low Loss
3. Fiber count available in 8, 12, 24, 48.
4. MTP/MPO connector type available in Male, Female, Male to Female.
5. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4).
6. Cable jacket type available in OFNR, LSZH, OFNP.

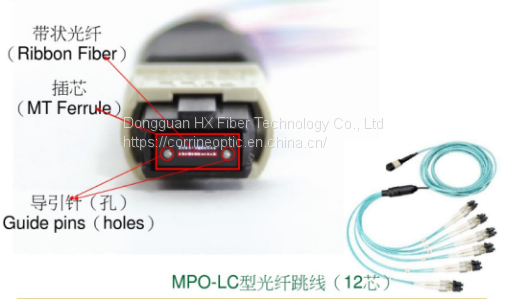

7. Multi-core fiber connector type available in MTP, MPO with APC or PC polishing type.
8. Cable length can be customized, generally, available in 1 to 999 meters.
9. Cable type available in round, ribbon.
10. Improve and simplify fiber routing, decrease fiber management space.
l Application

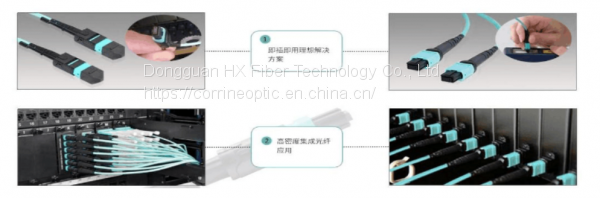

Data Center Interconnect

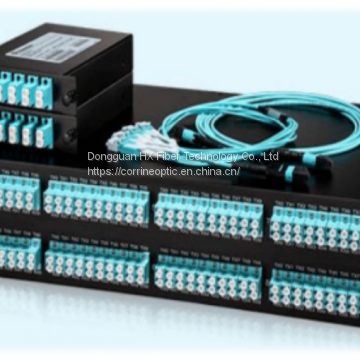

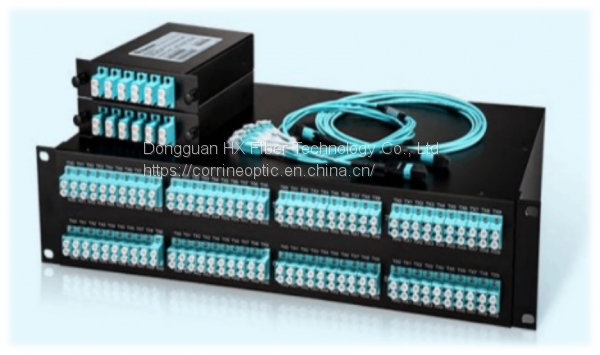

High-Density Cross Connect Backbone Installations
Pre-wired bridge wiring between workstations
Telecommunication/Broadband/CATV Networks
LAN/WAN client
