l Description

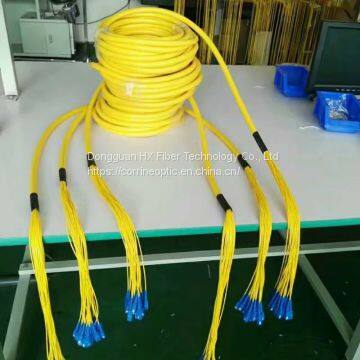

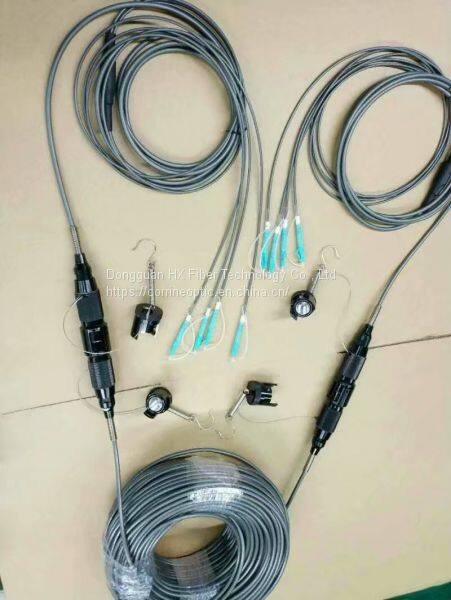

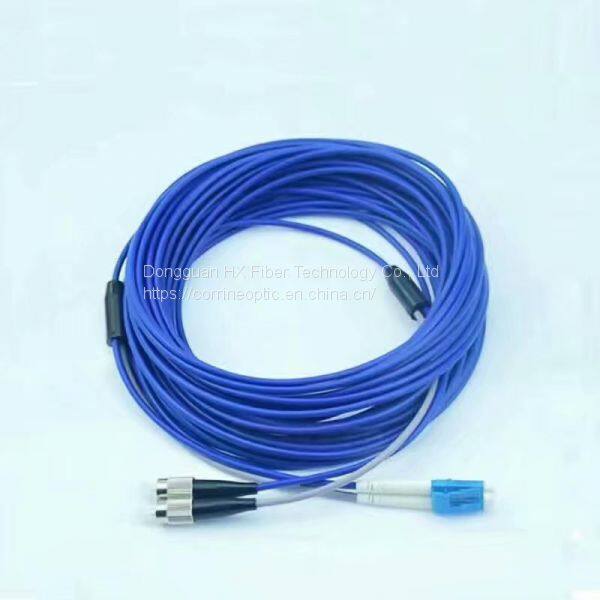

Armored patch cord is current popular one which was assembled by armored cable and fiber connectors. it can be laid in all kinds of environmental extremes and go without extra protection, which can saves space and is quite convenient for maintenance. The biggest difference between armored fiber patch cords and traditional fiber patch cords is that they are designed to produce a small flexible stainless steel sleeve to protect the fiber, in view of the shortcomings of fiber breakage and damage. And coating with PVC or LSZH jacket. To be a fire resistance, moisture resistance, and rodent resistance cable.
l Characteristics
l Has good mechanical properties
l Insertion loss and return loss performance at telecom level
l Has good repeated insertion and removal and interchangeability
l Has good temperature performance
l With a beautiful appearance and sophisticated workmanship
Application
FOD, LAN, Base station and so on.
FTTX
Test instrument,optical active device leads，etc.
l Main parameters
specification |
SM |
MM |
||
PC |
UPC |
APC |
||
Insertion Loss(dB) |
≤0.30 |
≤0.30 |
≤0.30 |
≤0.30 |
Return Loss(dB) |
≥50 |
≥55 |
≥60 |
/ |
Repeatability |
0.2dB |
|||
Operating/Storage Temp. |
-40°C~+85°C |
|||
Tensile Strength |
≥300N depending on the tension of the cable |
|||

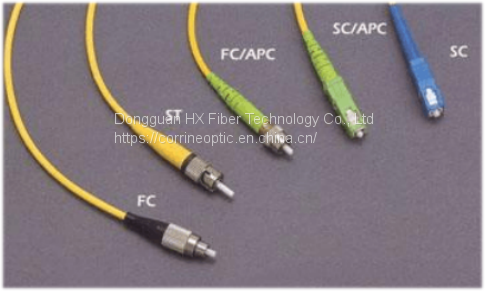

Connectors |

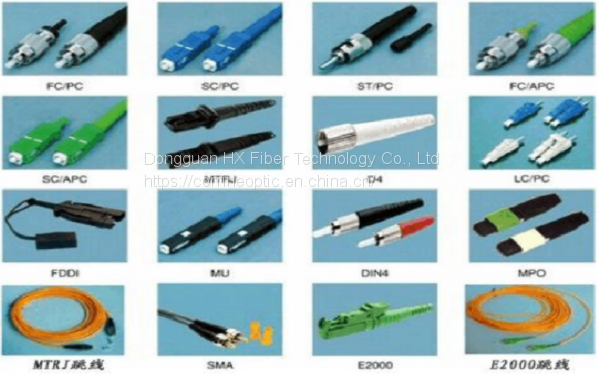

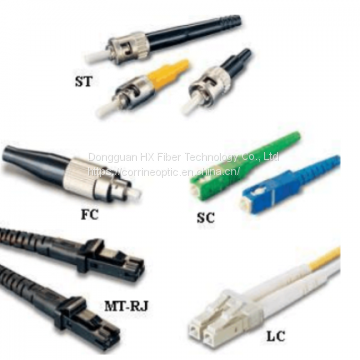

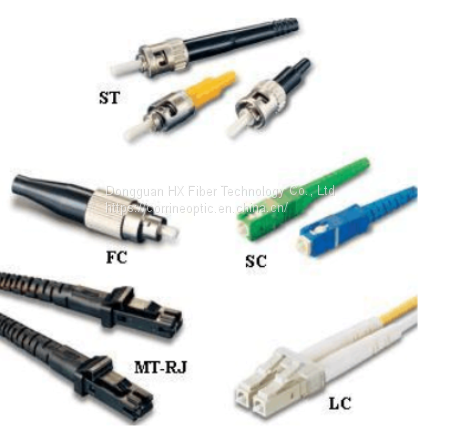

FC,SC,ST,LC,MPO,MT-RJ,E2000,MU |
|||
Cable Dia.(mm) |
0.9/2.0/3.0 |
|||
Cable length |
1M,2M,3M,5M, can be customized |
|||
