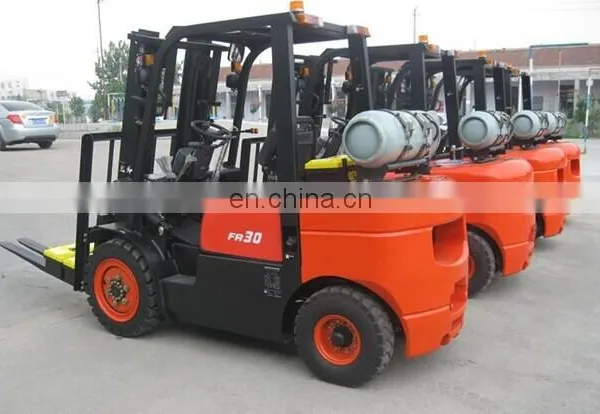

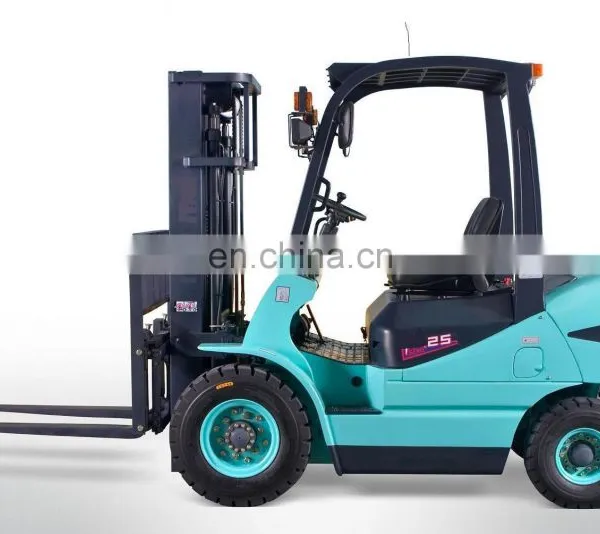

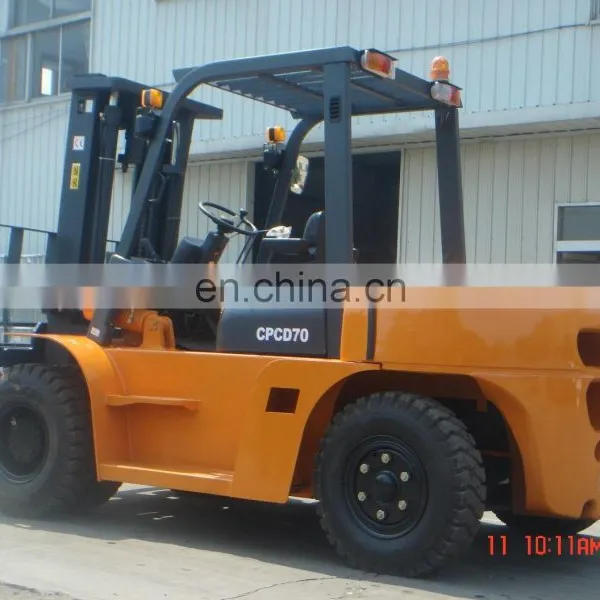

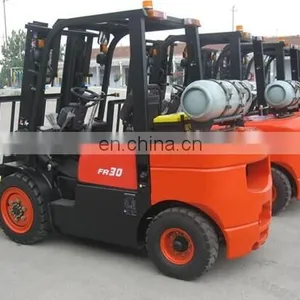

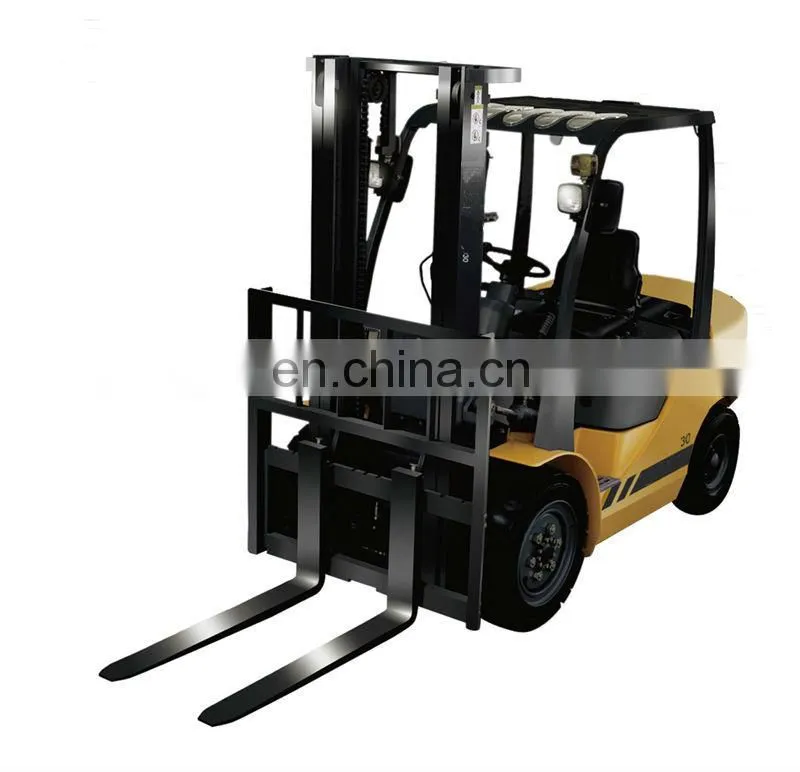

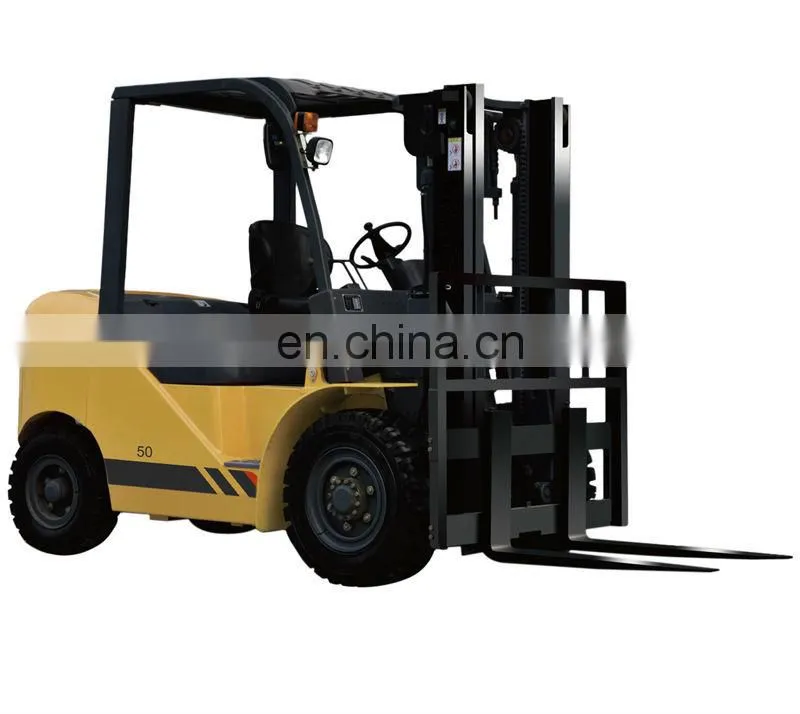

1.5ton electric forklift with CE certificate MAP factory
MAP Forklift Truck:
1. Good Lighting: there are five transparent plastic covers on the top, so it has good lighting effect and waterproof funciton
2. Wide Visual Field:Widen mast design, open visual field, increase the work efficiency and safety operation
3. Beautifull Display Meter:LCD display meter, feedback the working condition in time, integrated electric system, testing and maintenance easily
4.Spacious Space: Operating space increase by 10 percent, make the driver's operation more comfortable
5. Excellent Effect of Distribute Heat: air vent on back of the forklift increase by 10 percent, which is benefit water tank to distribute heat
6. Standard facility:Wide view mast. Standard forks. Standard seat. Charging indicator. Load backrest. Reversing lamp. Reversing buzzer. Reverse mirror. Lighting switch. Light guard. Horn. Two pieces of multiway valve. Engine misses device. Rear combined lamps. Transparency mask of overhead guard. Rib tire. Hour meter. Neutral indicator. Air filter clog warning. Cable parking brake. Lifting and tilting level. Hoist cylinder oil relief valve. Clevis pin. Light. Tilt steering wheel. Tilt oil channel self-locking valve. Hydraulic power steering. Top intake duct. Hand lever. Water temperature indicator. Tool box. Foot board rubber pad. Whirlwind type air cleaner. Combination instrument. Hydraulic oil circuit element. Hydraulic oil scale. Oil-pressure warning. Lock switch. Brake. Direction indicator lamp
7. Optional attachment:Windshield. Multiway valve. Top grade seat. High air exhausting device. Driving cab. Warm air blower. Air cleaner and silence. Quencher. Solid tyre. Double air filter. Warning light. Small fan. Color tyre. (white, green )
8. Attachments:Side shifter. Fork positioner. Hinged fork. Carpet boom. Crane jib. Fork.. Fork extension. Lifting arm. Paper roll clamp. Bale clamp
Parameters:
| Parameter Name | Unit | MAP15 | MAP18 | ||
| Speciality | Power model | Diesel | Diesel | ||
| Rated capacity | kg | 1500 | 1800 | ||
| Load center | mm | 500 | 500 | ||
| Lifting height | mm | 3000 | 3000 | ||
| Free lifting height | mm | 115 | 115 | ||
| Size of forks (L*W*H) | mm | 920*100*35 | 920*100*40 | ||
| Mast tilt angle(Front/Back) | . | 6/12 | 6/12 | ||
| Minimum turning radius | mm | 2060 | 2060 | ||
| Minimum right-angle stacking aisle width | mm | 3680 | 3680 | ||
| Minimum right-angle aisle width | mm | 1865 | 1865 | ||
| Minimum ground clearance | mm | 105 | 105 | ||
| Overhead guard height | mm | 2040 | 2040 | ||
| Front overhang | mm | 400 | 400 | ||
| performance | Max driving speed (Full load) | km/h | 14.5 | 14.5 | |
| Max lifting speed (Full load/Without load) | km/h | 460/500 | 460/510 | ||
| Max tractive force (Full load) | KN | 16 | 16 | ||
| Max grade ability | % | 20 | 20 | ||
| Size | Overall length( No forks) | mm | 2250 | 2250 | |
| Overall width | mm | 1086 | 1086 | ||
| Max fork lifting height(With load backrest) | mm | 3860 | 3860 | ||
| Mast height | mm | 1955 | 1955 | ||
| Chassis | Tyre Front wheel | mm | 6.50-10-10PR | 6.50-10-10PR | |
| Tyre Back wheel | mm | 5.00-8-10PR | 5.00-8-10PR | ||
| Axle base | mm | 1400 | 1400 | ||
| Wheel span(Front/Back) | mm | 890/920 | 890/920 | ||
| Dead weight(No load) | kg | 2680 | 2890 | ||
| drive | Battery | Voltage/Capacity | V/Ah | 12/90 | 12/90 |
| Engine | Model | XINGCHANG485BPG | XINGCHANG485BPG | ||
| Rated power | kw/r.p.m | 30/2600 | 30/2600 | ||
| Rated torque | Nm/r.p.m | 131/1800 | 131/1800 | ||
| Cylinders diameter *Stroke | mm | 0.9 | 85*100 | ||
| Number of cylinders | 4.0 | 4.0 | |||
| displacement | L | 2.27 | 2.27 | ||
| Fuel tank capacity | L | 45 | 45 | ||
| Transmission Gear position Front/Back | 2/2 Manual shift 1/1 Power shfit | ||||
For optional:
(1)Mast:
2-STAGE MAST 3.3M
2-STAGE MAST 3.5M
2-STAGE MAST 4M
3-STAGE MAST 4.5M
(2)Fork:
1220 MM FORKS
1370MM FORK
1520 MM FORK
Packing details:5pcs/20'CTN 10pcs/40'CTN
If you have any questions,pls has no hesitation to contact with us,we will supply professional and timely service for you.
