0.8ton mini articulated wheel loader
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
Product Details
| Brand Name | MAP | Place of Origin | Shandong, China | |
| Certification | CE | |||
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12months | |
| Condition | New | Dimension(Long * Breadth * High) | 3900X1400X2300mm | |
| Moving Type | Wheel Loader | Rated Load | 800kgs |
Product Description
2.with different attachment
3.Color can be optional
4. 2 Cylinders engine or 3 cylinders engine
Specification Multifunction Wheel Loader ZL08
Wheel loader model | ZL08 | |
Specification | overall weight(kg) | 2000 |
L×W×H(mm) | 4700×1200×2280mm | |
rated bucket capacity(m3) | 0.4 | |
Rated load(kg) | 800 | |
dump height (mm) | 2350 | |
Dump distance | 700mm | |
Wheelbase | 2100mm | |
Thread | 1400/1405mm | |
Total time | 11s | |
Engine | Model | CZ2102 or KM385 |
Type | direct injection, horizontal, water-cooled, four stroke, single cylinder | |
Rated power(KW) | 25KW | |
Rated speed(r/min) | 2400 | |
Working system | Transmission System | Manual clutch or hydrostatic |
Distribution of work valve | DF15.2C | |
Working pump | CBF32 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 350±1 | |
Min turning radius(mm) | 3400 | |
Tires | Standard tires | 750-16 |
Optional tires | 28X9-15 tires, same as used on forklift | |

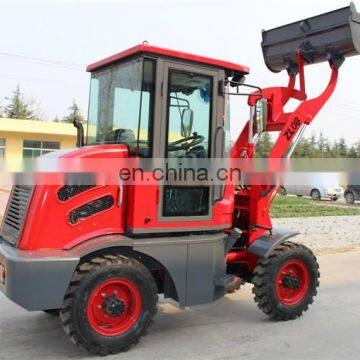

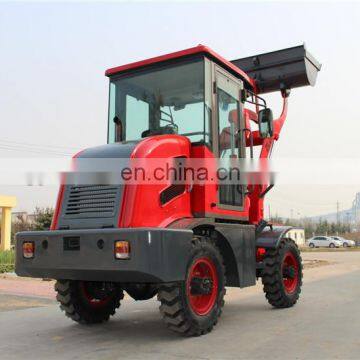

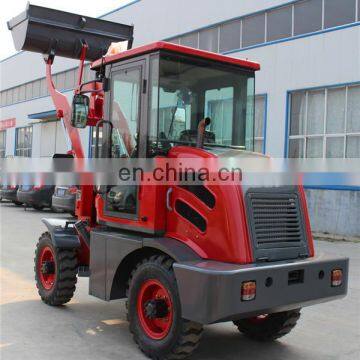

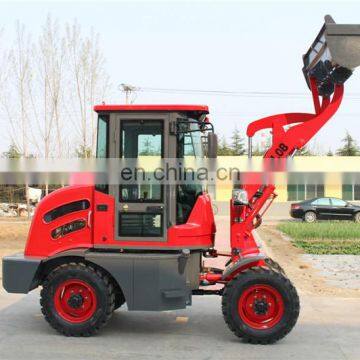

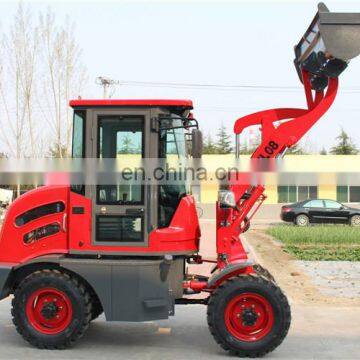

Sample pictures
NEW style with widest tire
LED lamp
| Why choose us? |
1. More than 200 workers.
2. With the occupying area of 2500 square meters.
3. More than 8 years experiences in the industry of construction machine and agricutural machine.
4. Competitive price and high quality.
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
