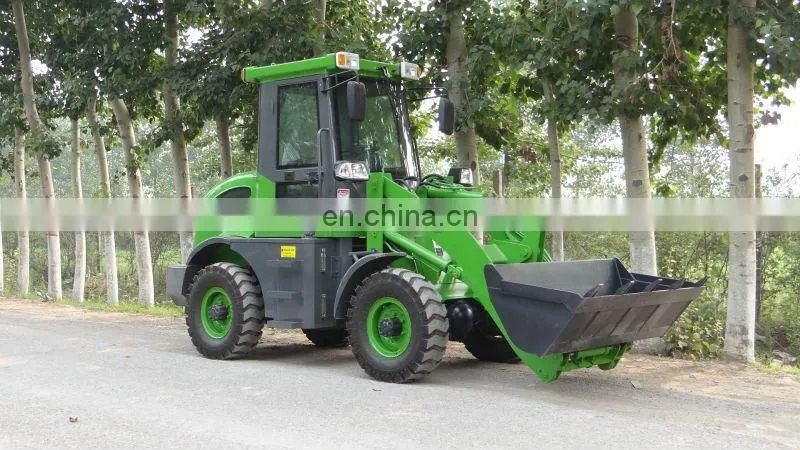

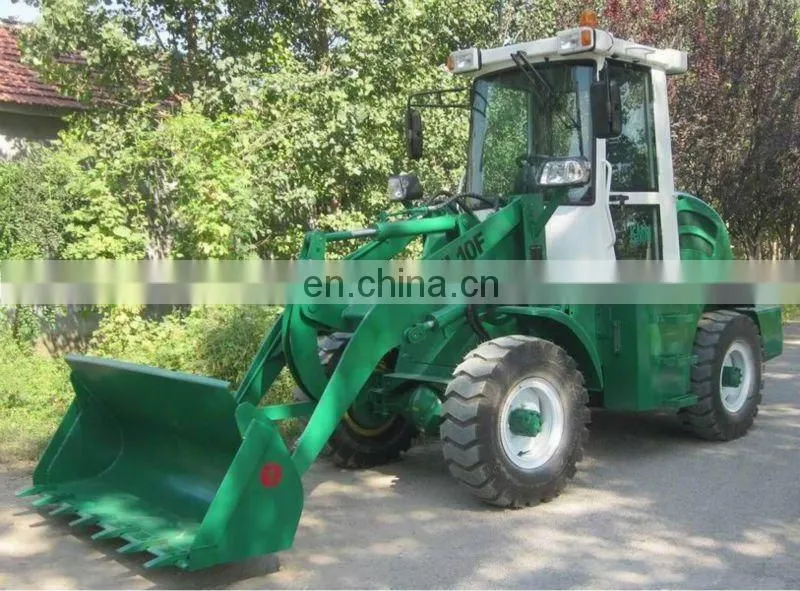

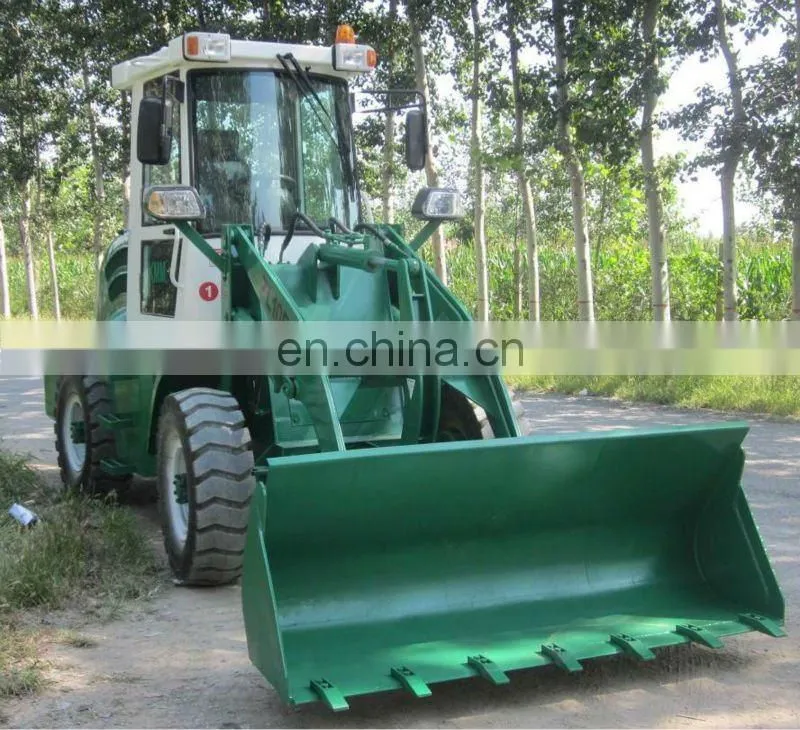

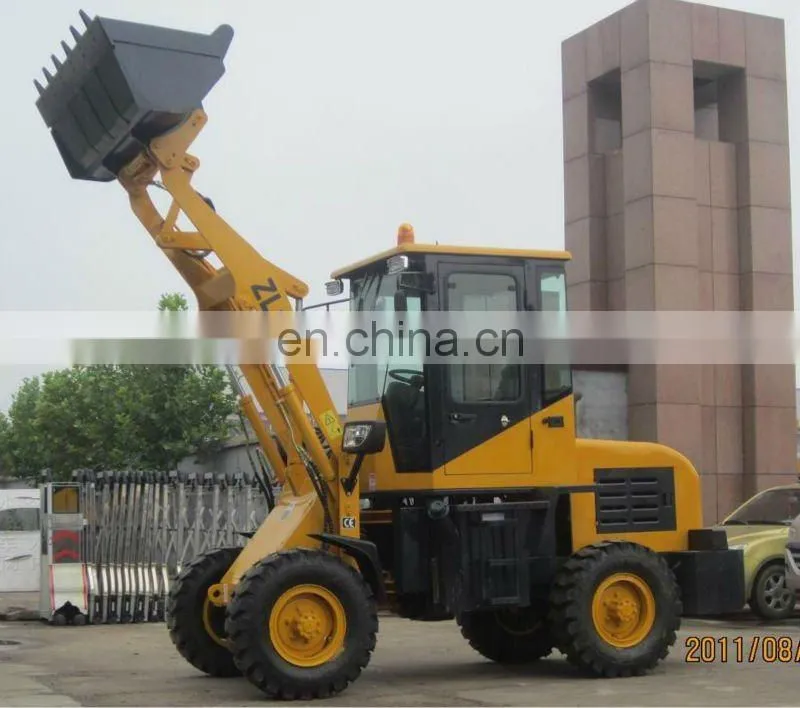

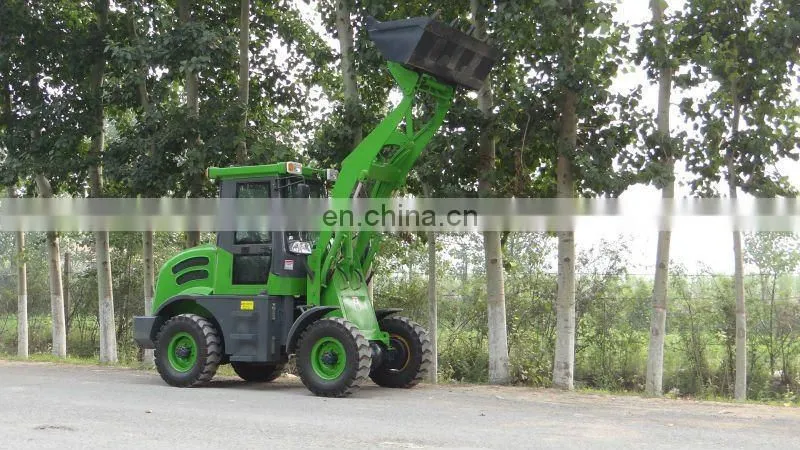

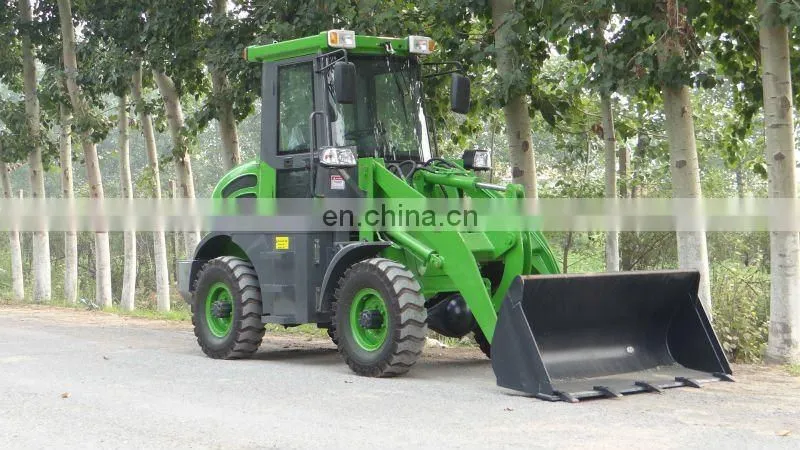

Help CenterMini Wheel Loader ZL10 Loader With All Attachments CE Mini Loader
Related Products
-
China Cheap Mini Compact ZL12 Wheel LoaderUS$ 7,950 - 9,668MOQ: 1 Unit -
Mini Loader Light Construction Machinery ZL12 Wheel Front LoaderUS$ 9,017 - 9,345MOQ: 1 Unit
-
HOT SALE CS915 ce Mini Telescopic LoaderUS$ 6,000 - 8,200MOQ: 1 Unit
-
Euro III Engine High Lift Bucket Loader ZL20 With CEUS$ 13,080 - 14,427MOQ: 1 Unit
-
CE Euro III Engine ZL20 Mini Tractor With Shovel CE LoaderUS$ 13,935 - 14,427MOQ: 1 Unit
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
Loader *Payload:1000kg
Loader *with different attachment
Loader *Hydraulic quick change

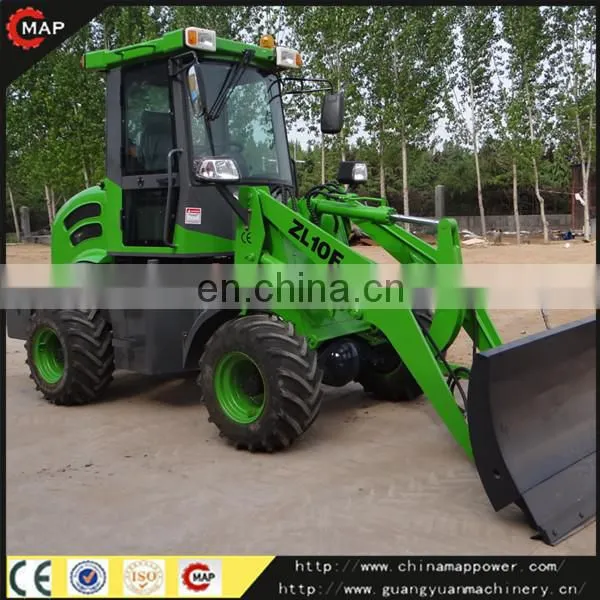

Multifunction Wheel Loader ZL10
Specification
Overall Dimension | ||
1 |
Length(with bucket on ground) |
4800(mm) |
2. |
Width(to outside of wheels) |
1730(mm) |
3 |
Bucket width |
1700(mm) |
4 |
Height(To the top of the cab) |
2530(mm) |
5 |
Wheel base |
2150(mm) |
6 |
Tread |
1320(mm) |
7 |
Min. ground clearance |
200(mm) |
Main Technical Specification | ||
1 |
Rated load |
1000(Kg) |
2 |
Operating weight |
2500KG |
3 |
Rated bucket capacity |
0.5(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
36kN |
6 |
Max. dump clearance |
2650(mm) |
7 |
Min. turning radius |
4500mm |
8 |
Driving system |
Gear box |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
|
(1) 1st gear forward |
5.75 |
|
(2) 2nd gear forward |
23.86 |
|
(3) 1st gear reverse 5.85 |
5.85 |
|
(3) 2nd gear reverse |
24 |
Diesel engine | ||
1 |
Model |
Changchai 490 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
29 (KW) |
4 |
Inter-bore of cylinder/stroke |
85 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
230(g/Kw.h) |
9 |
Net weight |
240(kg) |
Transmission System | ||
(a.)Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
(b.)Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
8.25-16 |
Brake system | ||
1 |
Service brake |
4 wheel hydraulic brake |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
