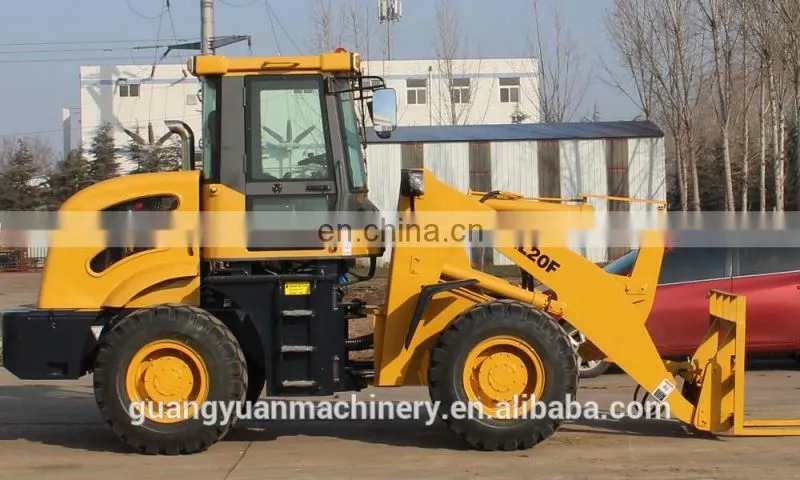

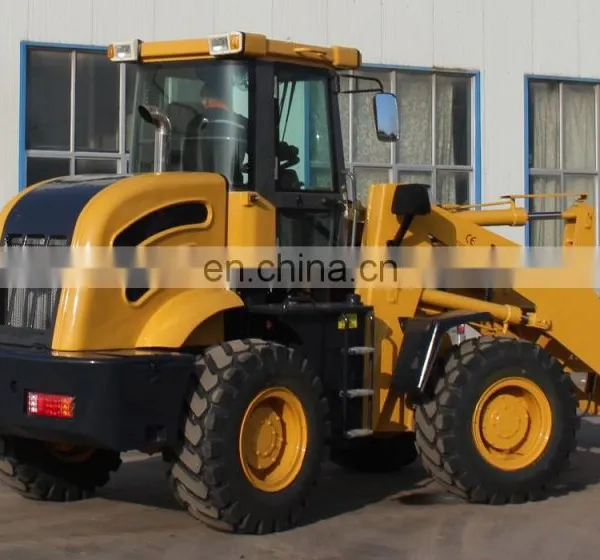

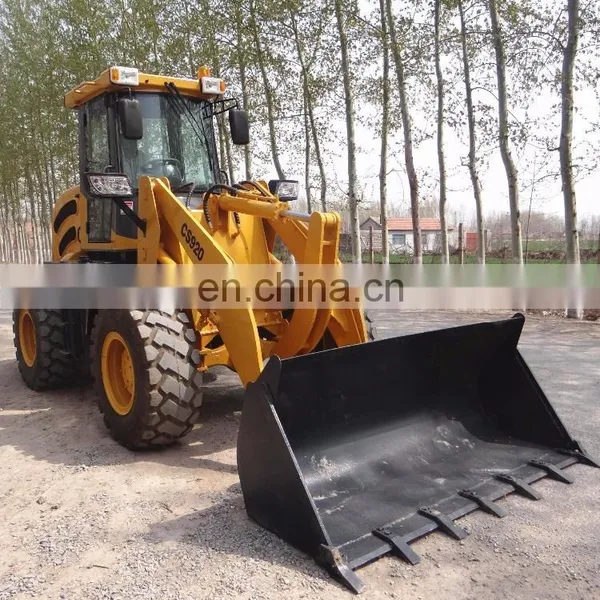

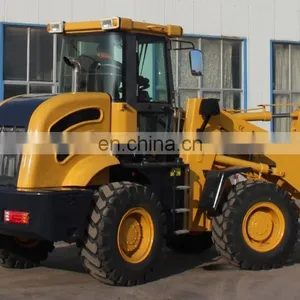

Help CenterCE Euro III Engine ZL20 Mini Tractor With Shovel CE Loader
Related Products
-
Construction Machinery ZL12 Wheel Loader for SaleUS$ 7,800 - 9,000MOQ: 1 Unit -
Light Construction Machinery ZL12 Mini Shovel Wheel LoaderUS$ 9,017 - 9,345MOQ: 1 Unit
-
CS915 Electric Garden China Front End Bucket LoaderUS$ 10,000 - 30,000MOQ: 1 Unit
-
Wheel Loader 6 Ton Cheap ZL60 Mini Shovel CE Wheel LoaderUS$ 1,000 - 15,000MOQ: 1 Unit
-
0.8ton CE Shovel Wheel Shovel Loader ZL08FUS$ 6,300 - 8,900MOQ: 1 Unit
Weifang Map Power Co., Ltd.,is a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments . 70% of our products are made for export.
Our Main Products Covers
1)Wheel loader D25,ZL08.ZL10,ZL12,ZL16,915,ZL20,ZL30 and ZL50.
2)Site Dumper 2ton, self loading dumper 2ton, 3 ton hydraulic dumper,3 ton dumper with side dumping type,5 ton dumpers.
3) Mini Tractors with different attachments from 25HP to 100HP.
Advantages to work with us:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage inviorenment.
3)Unparalleled after sales service
1)Dumping height:3100mm
2)Loader Bucket :1.2CBM
3)17/16-20 Tire
4)Joystick and Pilot control

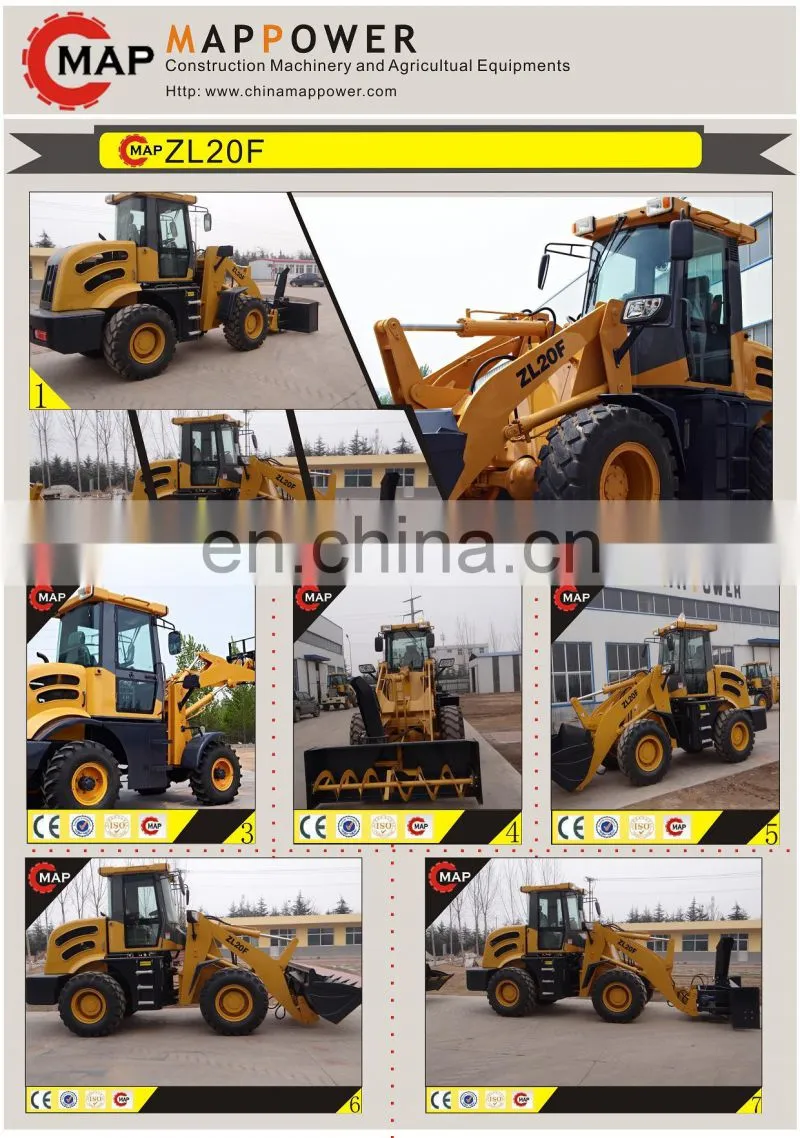

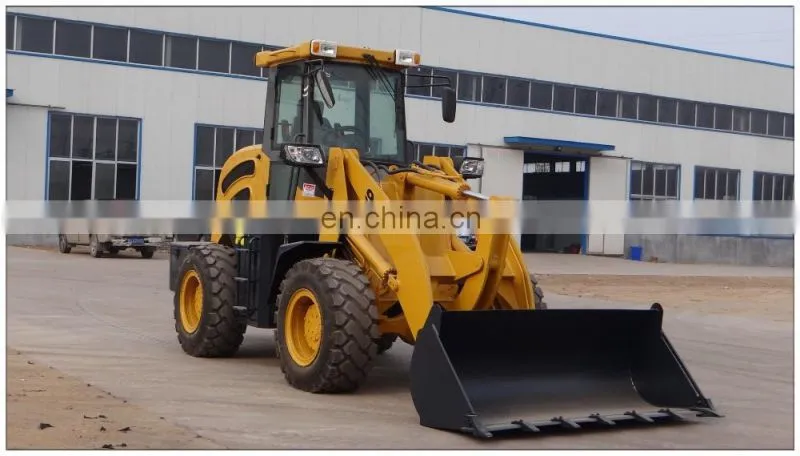

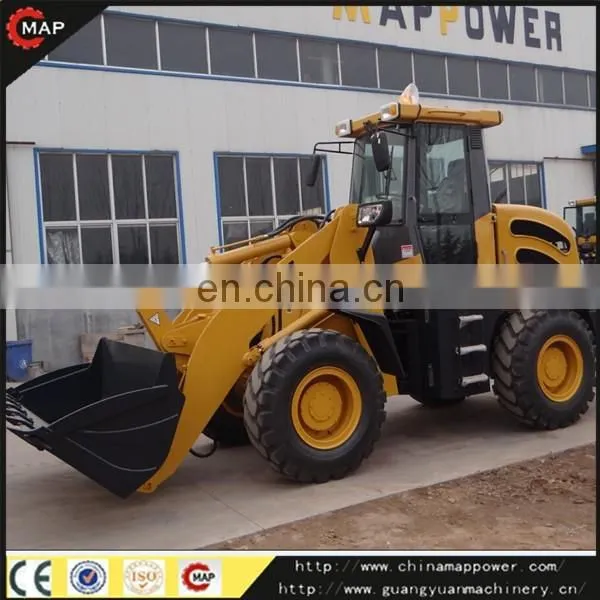

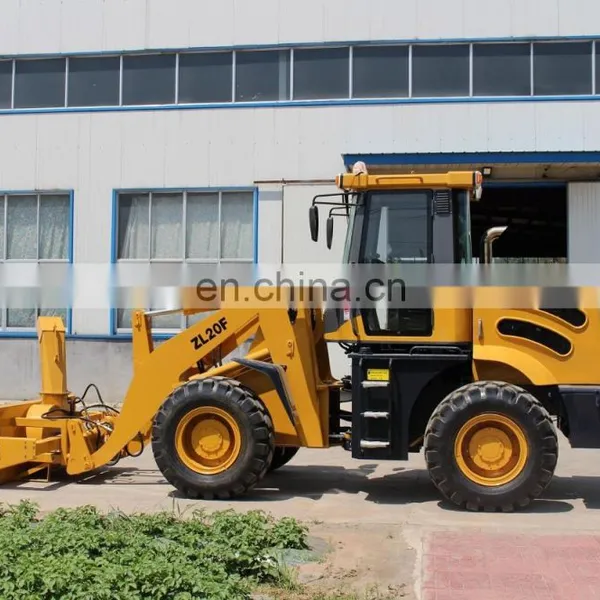

Wheel Loader ZL20F WITH CE
Detailed Specification:
Performance |
1 |
rated loading |
2000kg |
2 |
overall weight |
5800kg |
|
3 |
rated bucket capacity |
1.2m3 |
|
4 |
maximum tractive force |
54KN |
|
5 |
maximum breakout force |
45.4KN |
|
6 |
maximum grade ability |
30 |
|
7 |
maximum dump height |
3000mm |
|
8 |
maximum dump reach |
752mm |
|
9 |
overall dimension (L×W×H) |
5600×2100×2850mm |
|
10 |
minimum turning radius |
5251mm |
|
Engine |
11 |
model |
4105 |
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4105×125mm |
|
14 |
rated power |
58kw2200r/min |
|
15 |
maximum torque |
270N.m |
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ280A |
18 |
gearbox mode |
Countershaft power-shift |
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
20 |
maximum speed |
24km/h |
|
Drive axles |
21 |
main reducing spiral
|
Circular Arc Bevel gear, single stage |
22 |
decelerating mode |
Single stage planetary type |
|
23 |
wheel base (mm) |
2400mm |
|
24 |
wheel tread |
1640mm |
|
25 |
ground clearance |
310mm |
|
Hydraulic system |
26 |
system working pressure |
16MPa |
27 |
boom lifting time |
4.8s±0.2s |
|
28 |
total time |
9.2s±0.5s |
|
29 |
fuel tank capacity |
80L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air assist disc brake on 4 wheels |
32 |
parking brake |
flexible shaft operated external drum |
|
Tyre |
33 |
type specification |
16/7020 |
34 |
front tyre pressure |
0.22Mpa |
|
35 |
rear tyre pressure |
0.18Mpa |
