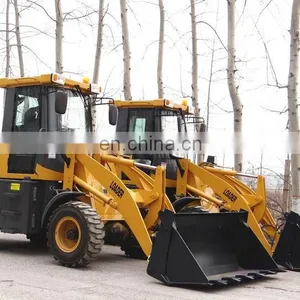

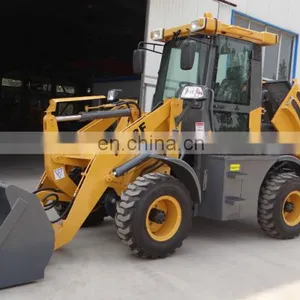

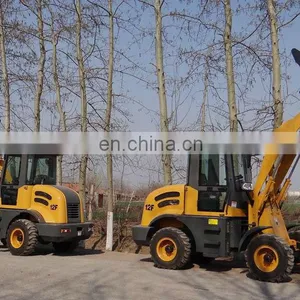

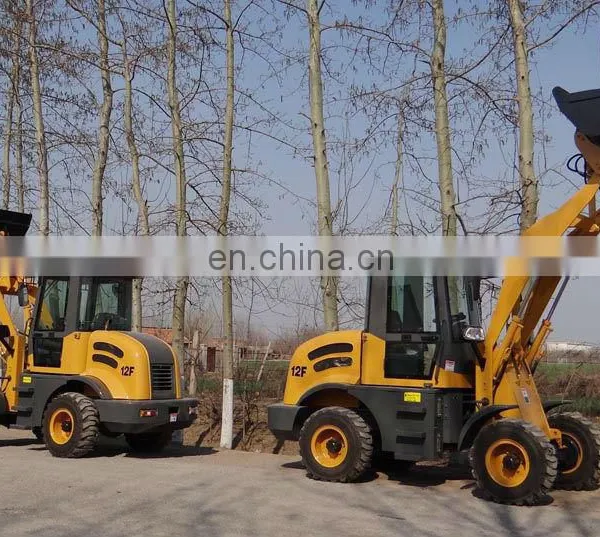

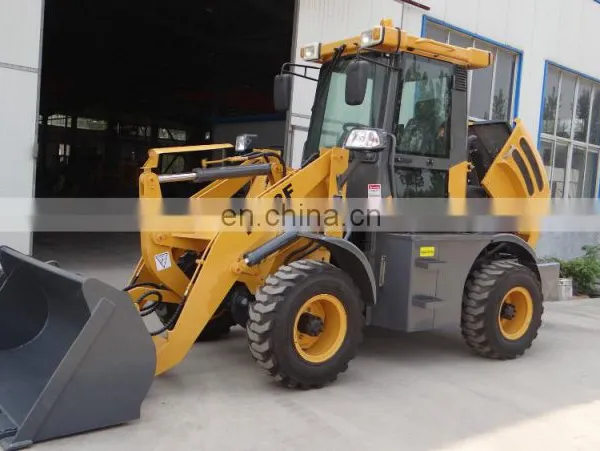

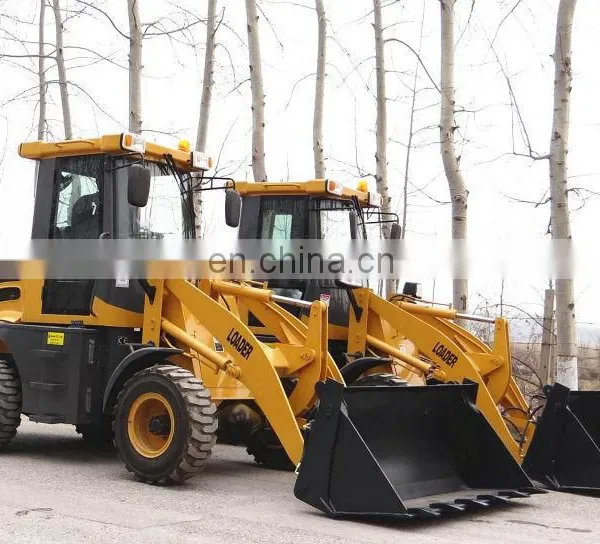

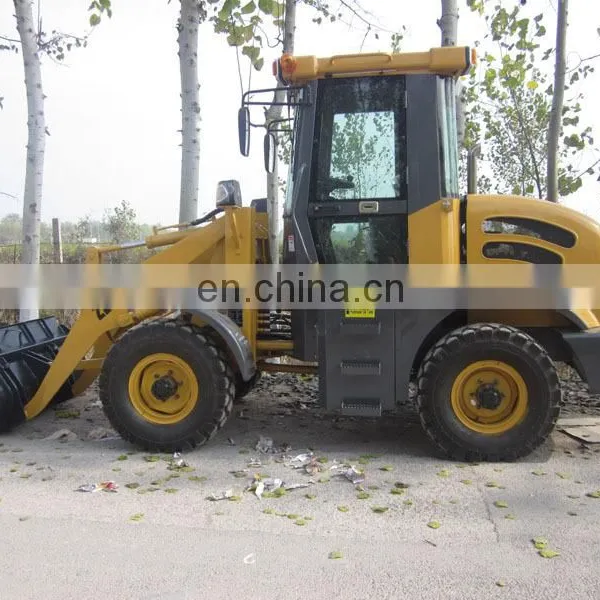

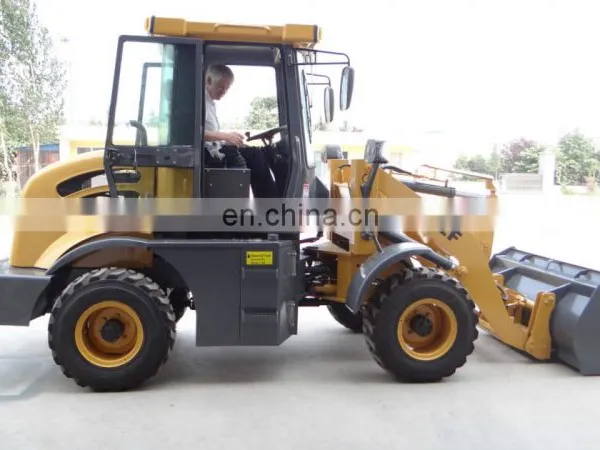

mini loader Light construction machinery ZL12 Wheel front Loader

Light construction machinery COMPACT Wheel Loader ZL12F with CE

1.2 Ton Wheel loader CE

Multi-function Wheel Loader ZL12F/912/ 1.2 Ton can be with Snow Blade, Snow bucket ,Pallet fork , Grapple fork ,4 in 1 Bucket ,Baler,

Grader, road sweeping machine,snow blower,light bucket ,auger and etc.

Wheel loader 1.2 Ton equip with :hydraulic 240 torque converter,3-way  pilot control,adjustable steering wheel,quick hitch,

luxury seat,new cabin with warm and new engine cover,bigger tire

Weifang Map Power is real factory to  produce all kinds of wheel loaders, such as: ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.

1.2 Ton Wheel loader Light Construction Machine Features

Fully hydraulic steering,power shift hydraulic operated working device.The full hydraulic steering system is smooth in operation, stable and reliable in performance

Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.

High boom lifting capacity for heavy duty handing jobs.

The bucket is equipped with automatic leveling device, so that the operation is easier.

Big tractive force and traction device at the rear end, which meet more needs.

Mini loader ZL12F CE Specifications

1.0 Engine Details

(1) Model: Changcai 4L68

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 26KW (35.36 H.P.)

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 269g/kw.h

2.0 Steering System

(1) Cycloid full hydraulic steering system: BZZ-125

(2) System Pressure: 10MPa

(3) Steering Cylinder: Φ76x Φ63x180

3.0 Bucket

(1) Bucket Capacity: 0.5 m3

(2) Bucket width: 1400mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 32KN

(5) Rated Load: 1200kg

(6) Operating Weight: 2880kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4200mm

(2) Overall Height

(a) Ground to Cab Top: 2500mm

(b) Ground to exhaust pipe: It is below from the top of cabin

(c) Dumping Height: 2545mm

(3) Overall Width: 1685mm

5.0 Operating Specifications

(1) Drive Means: Four-wheel drive

(2) Min Turning Radius: 4200mm

(3) Driving System: mechanical

(4) Dumping Height: 2600mm

(5) Min Base to the ground: 240mm

(6) Time of raise: 3.05sec.

(7) Hydraulic cycle time: 9sec.

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tire

(1) Model: 1200-16

8.0 Wheelbase: 2040mm

9.0 Track: 1320mm

For more about our producrs pls send us inquiry now

Cabin inside

Different accessory

Air Conditioning

 Different Color Avaialbe
