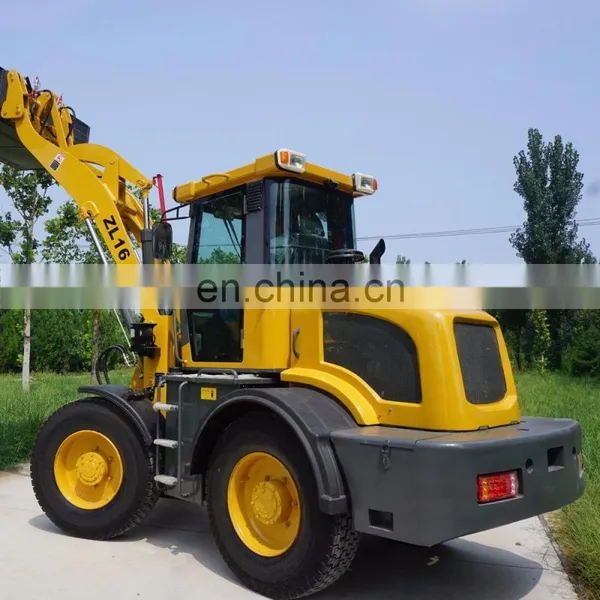

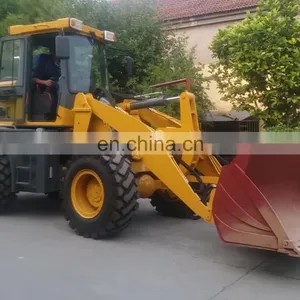

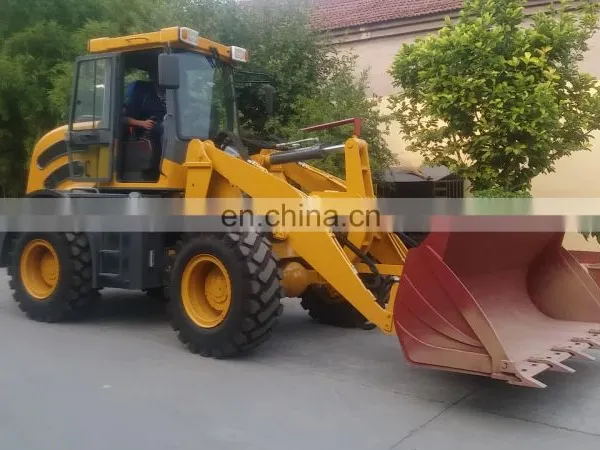

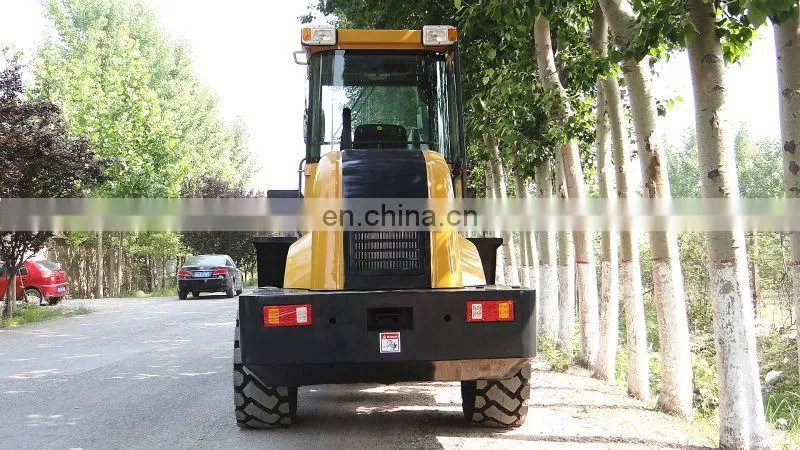

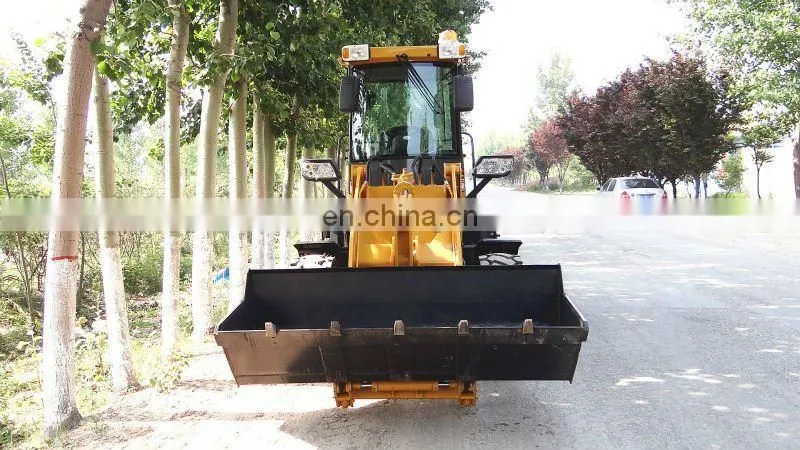

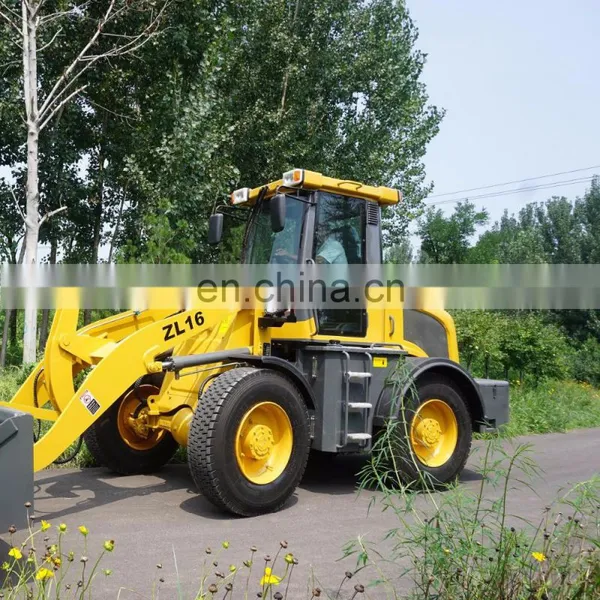

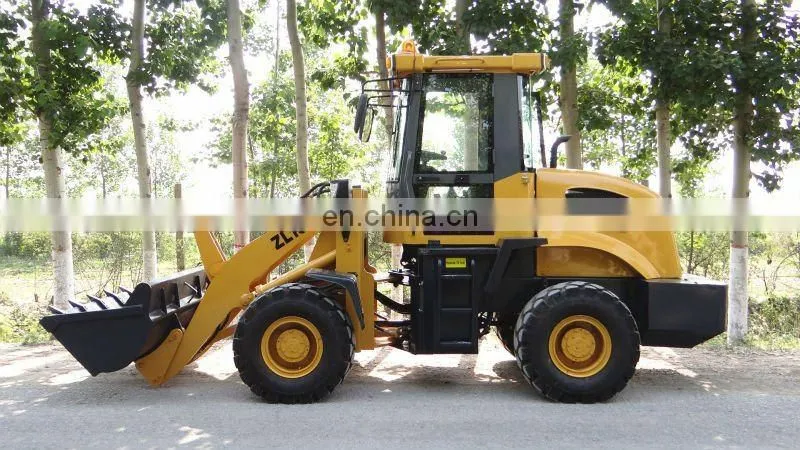

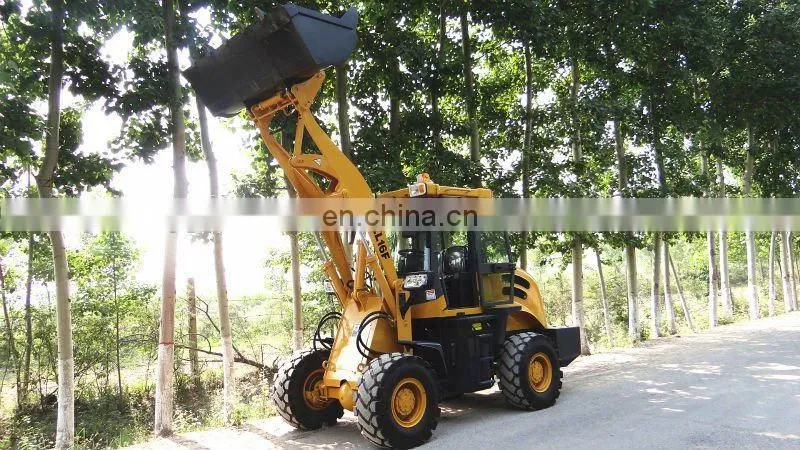

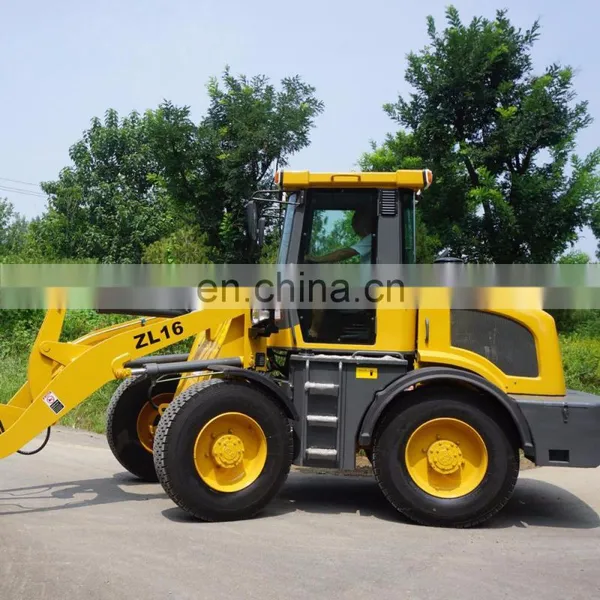

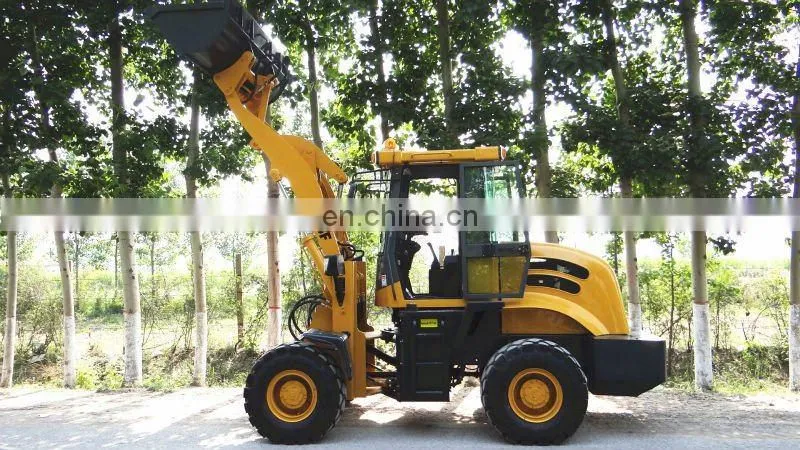

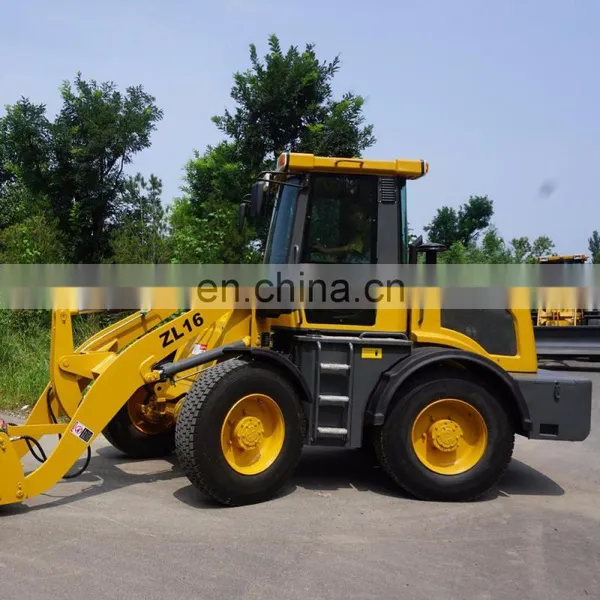

Loader 4WD CE 1.6Ton ZL16 with 4 in 1 bucket/snow blade shovel loader

Overall Dimension

1

Length(with bucket on ground)

5500(mm)

2

Bucket width

1910(mm)

3

Height(To the top of the cab)

2700(mm)

4

Wheel base

2150(mm)

5

Tread

1500(mm)

6

Min. ground clearance

342(mm)

Main Technical Specification

1

Rated load

1600(Kg)

2

Operating weight

4300KG

3

Rated bucket capacity

1.0(CBM)

4

Max. breakout force

45KN

5

Max. dump clearance

2850

(mm)

6

Dump reach

960(mm)

7

Dump angle at any position

≤40

8

Digging depth(with bucket bottom horizontal)

146(mm)

9

9 Max. turning radius

(1) Outside of bucket

4850(mm)

(2) Outside of rear wheel

4675(mm)

10

Pivot angle frame

38+

11

Oscillating angle of rear axle +

±11°

12

Lifting time of bucket

≤5.9(sec.)

13

Lowering time of bucket

≤2.8(sec.)

14

Dumping time

≤2.0(sec.)

15

Traveling speed(Km/h) 2 forward and 2 reverse

(1) 1st gear forward

10.00

(2) 2nd gear forward

24.00

(3) 1st gear reverse

10.00

(3) 2nd gear reverse

24.00

Diesel engine

1

Model

ZH4102Weichai huafeng

2

Type

Direct injection. 4 Cylinders Water cooling

3

Rated output

47(kW)

4

Inter-bore of cylinder/stroke

100 (mm)

5

Total exhaust of cylinder

4(L)

6

Voltage of starting motor

24(V)

7

Rated speed

2300(r/min)

8

Max. Torque

270(N.M)

9

Starting type

Electric

10

Min. specific fuel consumption

251(g/Kw.h)

11

Net weight

360(kg)

Transmission System

(A)Torque Converter

1

Model

265

2

Type

3-elements.single stage

3

Torque ratio

3.06

4

Cooling type

Pressure oil circulating

(B)Transmission case

1

Type

power shift, spur gear constantly in mesh

2

Gear shift position

2 Forward and 2 reverse gears

(C)Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Gear ratio of main reducer

5.83

3

Type of final reducer

Single stage planetary

4

Gear of ratio of final reducer

5.6

5

Gear ratio

32.66

6

Size of tire

16/70-16 or 20.5/70-16

Working Device Hydraulic System

1

Model of oil pump

CBG 1016

2

System pressure

160(kgf/cm2)

3

Model of distribution valve ZS

ZS1-L20E-F-20

4

Priority-valve YX

YX2-F160L-N

5

(D*L)Dimension of lifting cylinder

φ90*50*548(mm)

6

(D*L)Dimension of tilting cylinder

φ110*63*409(mm)

Steering System

1

Type

Middle articulated frame. Co-axis flow amp. Steering

2

Model of steering pump

CBG 2063

3

Model of steering gear

BZZ5-250

4

System pressure

125(kgf/cm2)

5

Dimension of steering cylinder

φ63*35*249(mm)
