Home > Products > Wheel Loader > Factory direct supply industrial loader with snow blower
Factory direct supply industrial loader with snow blower
- 0 per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
Brand Name | Map Power | Place of Origin | Shandong, China | |
Model Number | cs920 | Type | Front Loader | |
Certification | ce | After-sales Service Provided | Overseas third-party support available | |
Warranty | 2000 working hours | Condition | New | |
Dimension(Long * Breadth * High) | 5850X2050X2860mm | Moving Type | Wheel Loader | |
Rated Load | 2000KG/2 Ton |
Product Description
Best price Mini wheel Loader CS920 Wheel loader industrial snow blower
The BV inspection report pls see this link. http://hz.company.china.cn/assessment/manage/assessment_list.htm
Wheel loader Performance Features
The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.

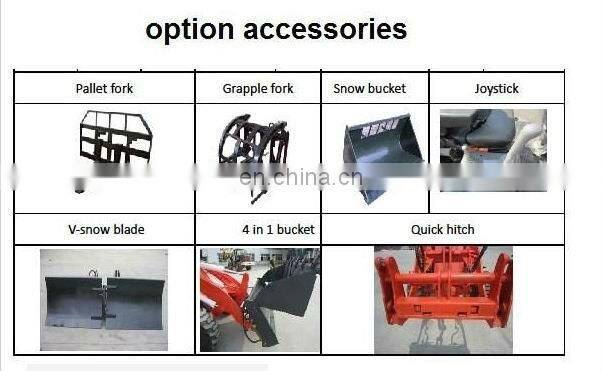

Multi-function Wheel Loader 2.0 Ton can be with Snow Blade, Snow bucket ,Pallet fork , Grapple fork ,4 in 1 Bucket ,Baler,Grader, road sweeping machine,snow blower,light bucket ,auger and etc.
Wheel loader 2.0Ton equip with :hydraulic 280 torque converter,3-way pilot control,adjustable steering wheel,quick hitch,luxury seat,new cabin with warm and new engine cover,bigger tire .
Overall Dimension | ||
1 | Length(with bucket on ground) | 5850(mm) |
2. | Width(to outside of wheels) | 2050(mm) |
3 | Height(To the top of the cab) | 2860(mm) |
4 | Wheel base | 2400(mm) |
5 | Tread | 1640(mm) |
6 | Min. ground clearance | 310(mm) |
Main Technical Specification | ||
1 | Rated load | 2000(Kg) |
2 | Operating weight | 5800KG |
3 | Rated bucket capacity | 1.2(CBM) |
4 | Bucket type | Heavy-duty bolt teeth |
5 | Max. breakout force | 51kN |
6 | Max. dump clearance | 2950(mm) |
7 | Min. turning radius | 5251mm |
8 | Driving system | Hydraulic converter |
9 | Traveling speed(Km/h) | 2 forward and 2 reverse |
Diesel engine | ||
1 | Model | YTO 4108/WeiChai 4105 |
2 | Type | In-line arrangement. Water cooling |
3 | Rated output | 60(kW)/58KW |
4 | Inter-bore of cylinder/stroke | 105×125mm |
5 | Rated speed | 2400(r/min) |
6 | Max. Torque | 275(N.M) |
7 | Starting type | Electric |
8 | Min. specific fuel consumption | 235(g/Kw.h) |
Transmission System | ||
(A)Torque Converter | ||
1 | Model | YJ280 |
2 | Type | Fixed-spindle power shift |
3 | Cooling type | Pressure oil circulating |
(B)Transmission case | ||
1 | Model | MAP |
2 | Type | Power shift, spur gear constantly in mesh |
3 | Gear shift position | 2 Forward and 2 reverse gears |
(C)Axle and Tire | ||
1 | Type of main reducer | spiral bevel gear, single stage |
2 | Size of tire | 20.5/70-16,16.70-20 for optional |
Brake system | ||
1 | Service brake | Air assisted oil on four wheel |
2 | Parking brake | Hand operated |
Steering System | ||
1 | Type | Middle articulated frame with hydraulic power steering |
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Wheel loader Usage
The ZL20 /920 wheel loader is used for loading or transporting sands, coal ,sandstone and so on for road construction, environmental sanitation, small and medium-sized civil engineering, or in the station, warehouses and other places. The wheel loader can be combined with auto truck of 3-5tons to load and unload goods, and can conduct bulldozing, digging hoisting and other operations.
