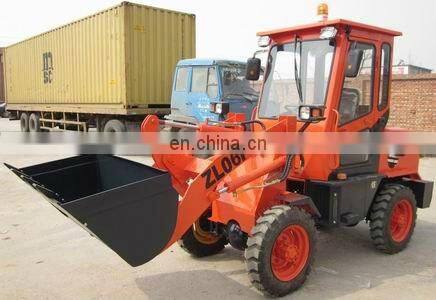

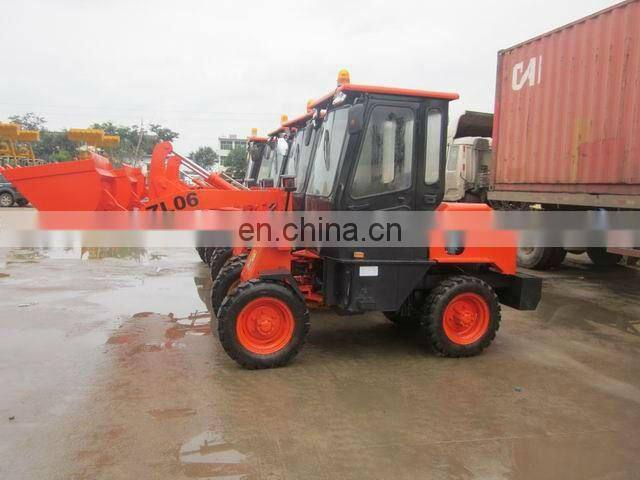

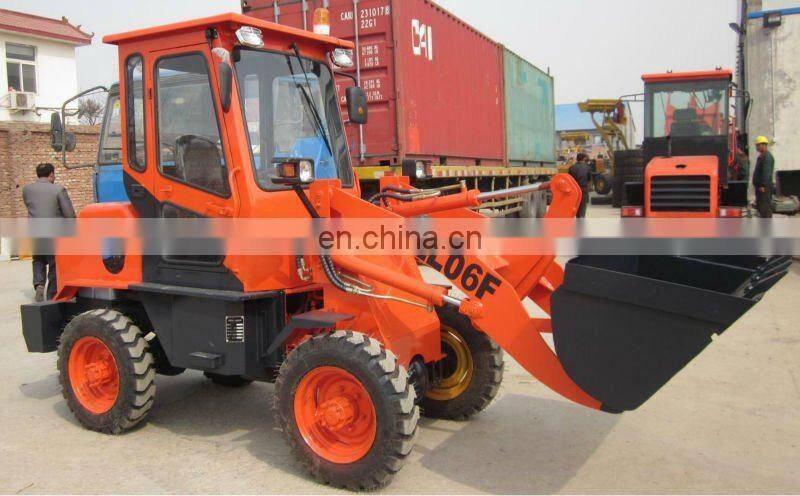

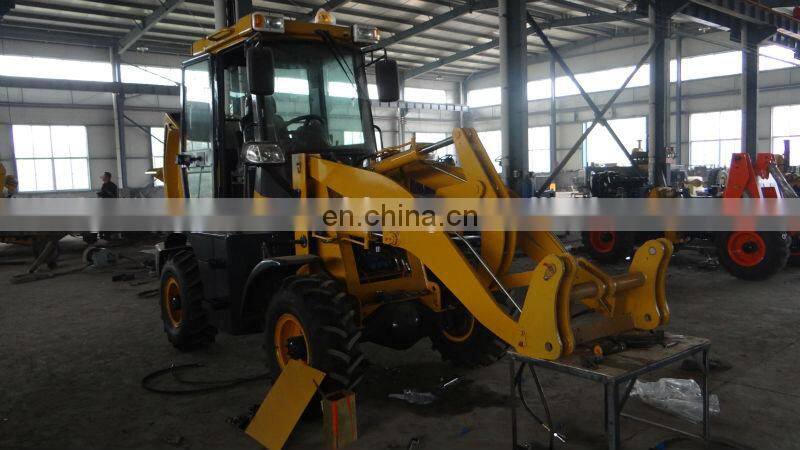

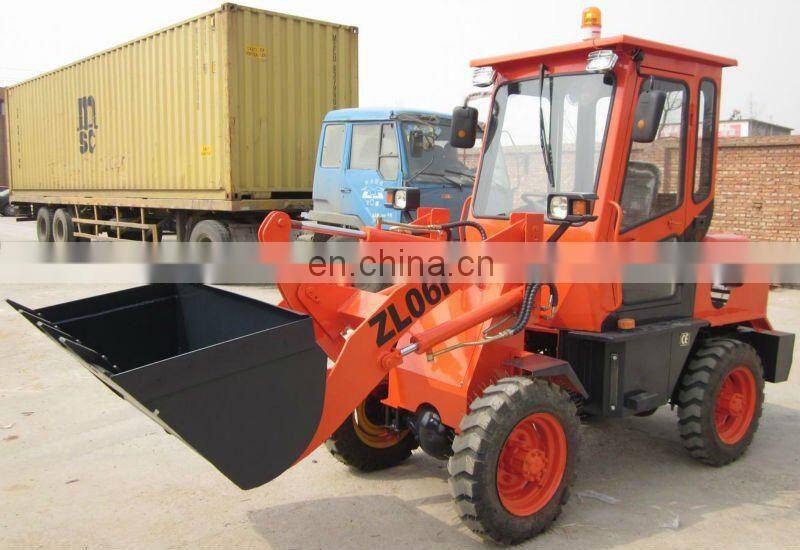

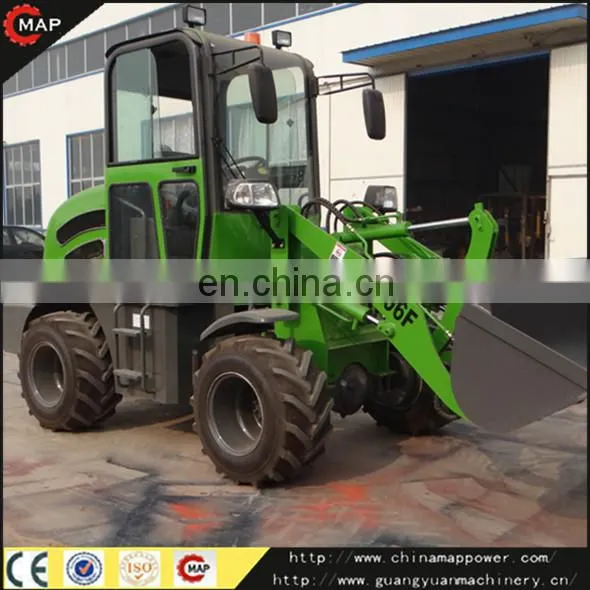

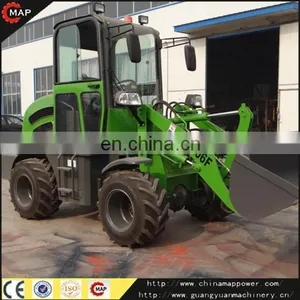

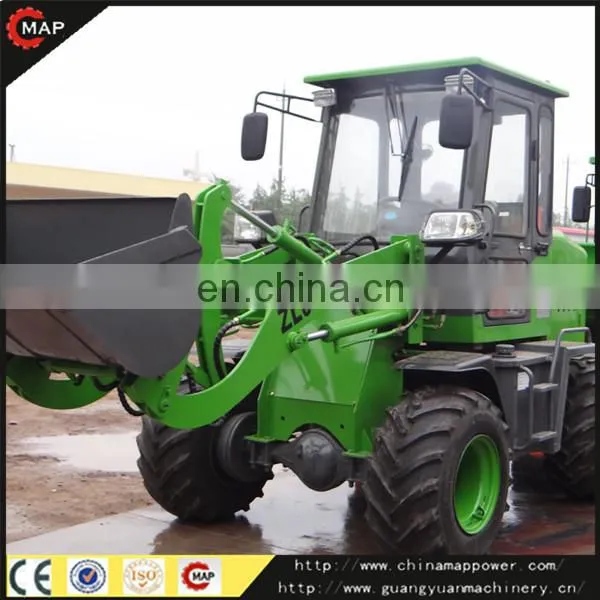

Help CenterChina Cheap Mini ZL06 Wheel Front Mini Wheel Loader for Sale
Related Products
-
Light Construction Machinery 1.2ton ZL12 CE Mini Shovel Used Wheel LoaderUS$ 7,800 - 9,000MOQ: 1 Unit -
CE Loader 1.6Ton Mini Wheel Loader ZL16 With 4 in 1 Bucket Front LoaderUS$ 10,492 - 10,820MOQ: 1 Unit
-
Mini Skid Steer Loader 2.0 Ton CS920 Front Wheel LoaderUS$ 13,600 - 15,000MOQ: 1 Unit
-

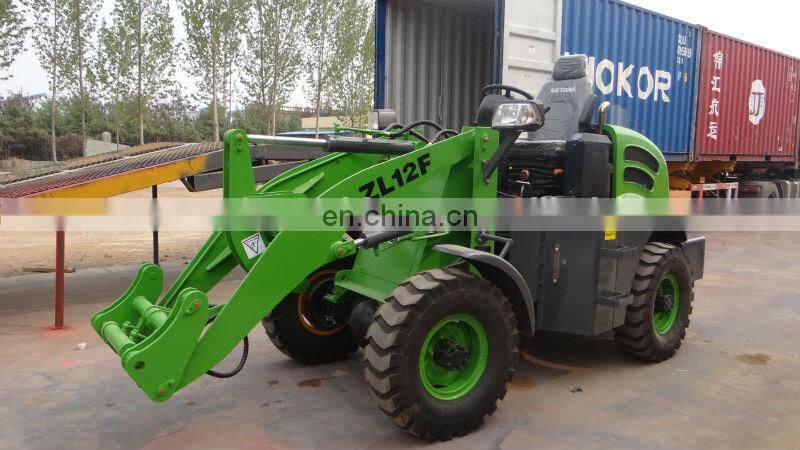

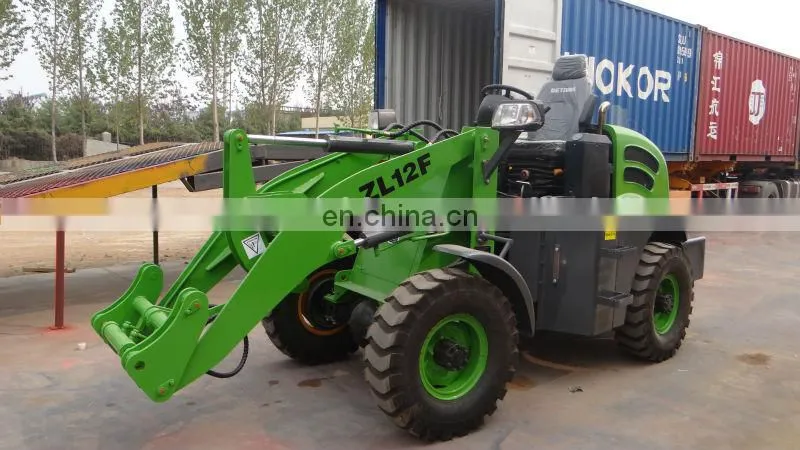

ZL12F 1200Kg/1.2Ton Mini Wheel Loader for SaleUS$ 8,615 - 9,345MOQ: 1 Unit
-
Factory Export Zl20f Joystick Control Pallet Fork Compact Loader Worldwide Distributors WantedUS$ 13,250 - 15,580MOQ: 1 Unit
Company Profile
WeiFang Map Power is well-known constructional & agricultural machinery and implements exporter since 2007, and we have our own real factory- WeiFang YiShan Heavy Machinery Co., Ltd, which located in “China Machinery Town” – WeiFang city. The owners of these two companies are couplers. Our main business is as following:
- Wheel Loader Series, rated loading weight from 800kgs to 5T,such as:
Mini Type: D25, ZL06, ZL08, ZL10, ZL12,CS915,ZL16,
Middle-sited Type: WZ30-25, ZL20, CS920, ZL30,ZL50, ZL60, ZL70 etc.
2. Farm Tractor Series, power from 20hp to 120hp ,such as: MAP254, MAP300, MAP404, MAP504, MAP704, MAP754,MAP804,MAP954,MAP1004,MAP1204 etc.
3. Site Dupers series, rated loading weight to 1T to 10T, such as: FCY10, FCY15, FCY20, FCY30, FCY50, FCY70,FCY100 etc.
4. Wheel & Crawler-type Excavator Series, such as
Map wc-45, map wc-50, map wc-70, map wc-150
Map NT-18, map NT-18A, map-45, map-85, map wd120c etc.
5. Constructional equipments, farm tools and consumable parts of all kinds. Such as pallet fork, log grapple, snow plow, hole digger, sweeper, wood chipper, lawn mover, plough, rotary tiller…etc.
With the experience in professional manufacturing and international trade, Map Power has successfully expanded our business to about 30 countries including Canada, America, Russia, Australia and west Europe and Mid-Asia etc.
Hope to have a long and good cooperation with you.

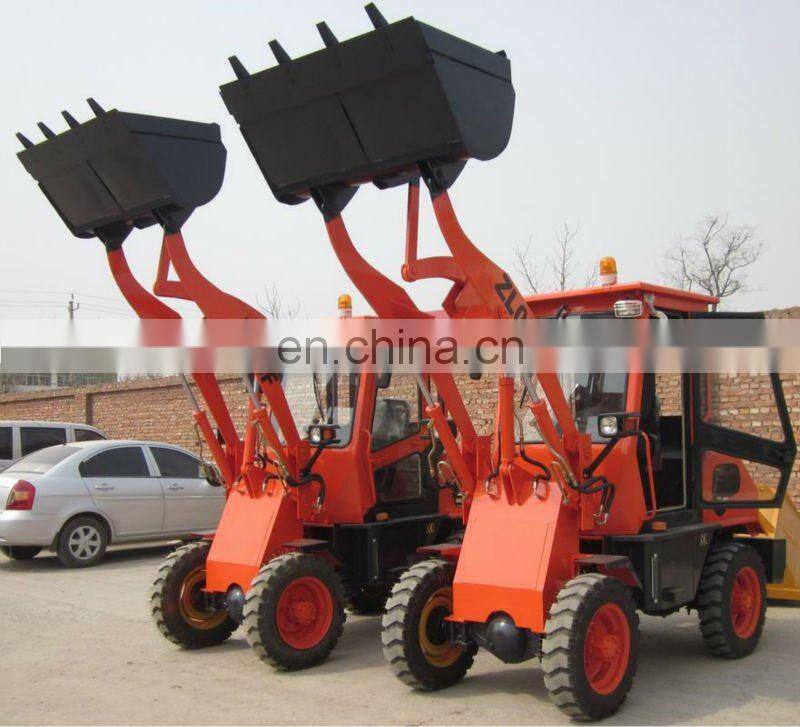

Main Descriptions for Mini Wheel Loader Series
- Streamlined appearance, beautiful and elegant, and can attach different tools such as: coal bucket, pipe fork, grass fork, stone bucket… to realize multifunction. Wildly used building site, coal mines, brickyard, stone materials factory, urban construction and so on.
- Bucket that can be set level automatically, "Z" type turning bucket structure, to realize the enormous shovel digging forces.
- Dual pump meeting hydraulic system can economize on oil 10%,
- Central articulated frame and load sensing hydraulic steering gear, short turning radius and flexible turning, can work in narrow site and has sound off-road performance, good traffic ability and larger traction.

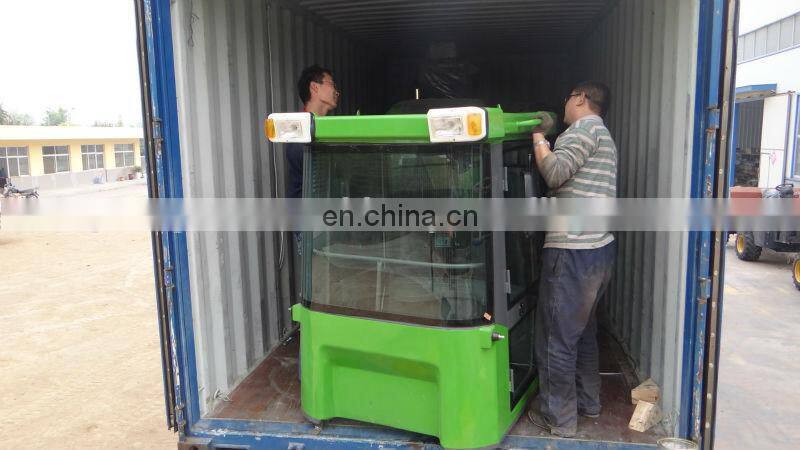

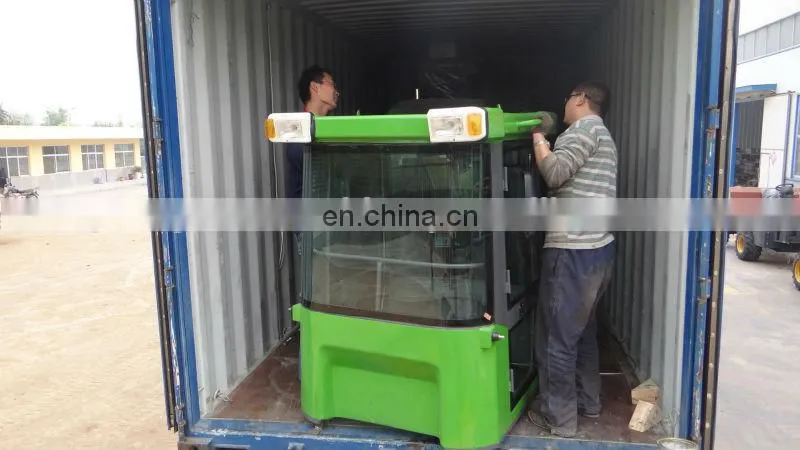

- Cabin made by double-layer1.4mm steel plate with strong steel frames inside.
- A fully enclosed cabin and the seats have the functions of vibration reduction and easy adjustment from 4-6 directions, offers the driver a comfortable and wide view.

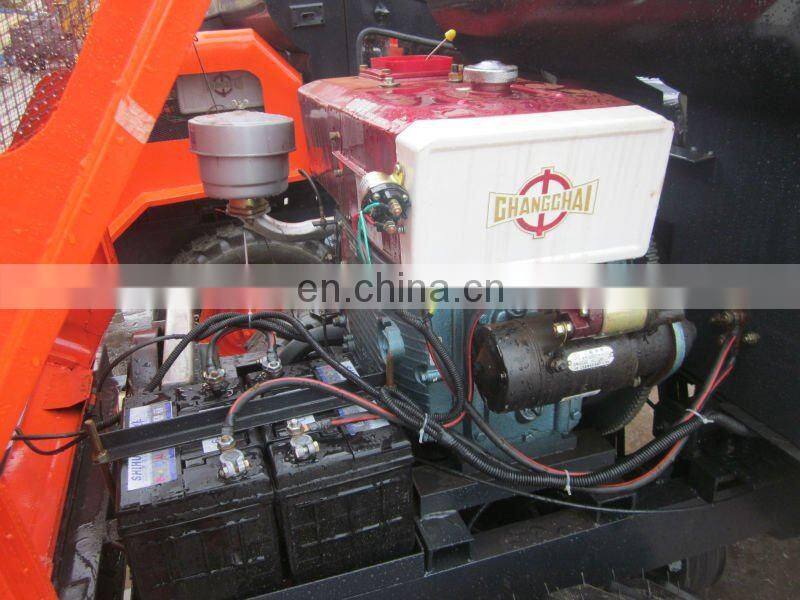

Engine Details | |
Model |
CHANGCHAI ZS1105 |
Engine type |
In-line arrangement, water-cooled, single cylinder diesel Engine |
Rated Power |
18kw, (24HP.) |
Rated Speed |
2200 r/min |
Min.ful consumption |
269 g/kw.h |
Bucket | |
Bucket Capacity |
0.3m3 |
Bucket type |
Heavy-duty bolt on teeth |
Rated Load |
600 kg |
Operating Weight |
1800 kg |
Overall Dimensions | |
Overall Length |
4480 mm |
Overall Height |
2200 mm |
Overall Width |
1500 mm |
Max. discharge height |
2200 mm |
Wheel base |
1620 mm |
Tread |
1160 mm |
Operating Specifications | |
Steering System |
Articulated Frame with hydraulic power steering |
Min Turning Radius |
3000 mm |
Transmission System |
Manual clutch |
Brake System | |
Service Brake |
Four Wheel Hydraulic spread-shoed brake |
Parking Brake |
Hand operated |
Tyre |
6.10-16 |
Quality Assurance
- Have established and implemented a standard procedure for quality management system and product certification.
- QA/QC inspectors work independently form the production lines
- Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
- A procedure to conducting random inspection after final packaging.
- A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
- Tool case and partly consumable accessories attached with shipment meanwhile
- After-sales and Quality Warrant Contact for every purchase order.
