mini skid steer loader factory machine small hook loader--Export for sale!!!
Features
Fully hydraulic steering,power shift hydraulic operated working device.The full hydraulic steering system is smooth in operation, stable and reliable in performance

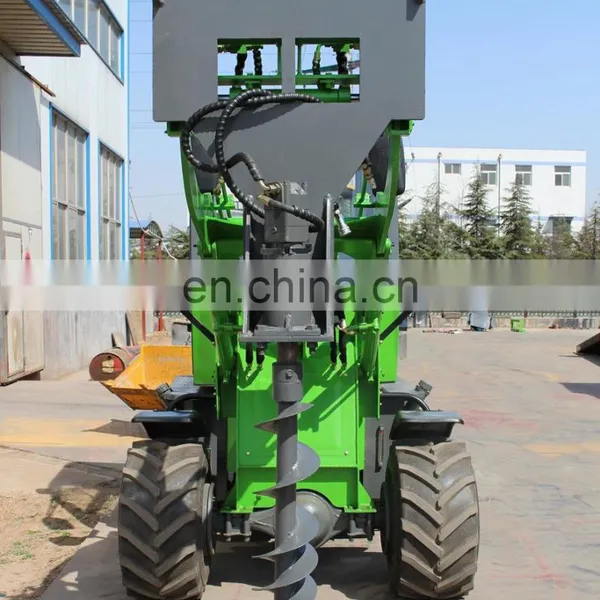

Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.
High boom lifting capacity for heavy duty handing jobs.
The bucket is equipped with automatic leveling device, so that the operation is easier.
Big tractive force and traction device at the rear end, which meet more needs.
Engine: ChangchaiL24/ CZ2102;
Type: single/double cylinder
Rated power: 25KW;
Rated load: 800kg;
Rated bucket capacity:0.4CB
Specifications
Specification |
overall weight(kg) |
2000 |
L×W×H(mm) |
4700×1200×2280mm |
|
rated bucket capacity(m3) |
0.4 |
|
Rated load(kg) |
800 |
|
dump height (mm) |
2350 |
|
Dump distance |
700mm |
|
Wheelbase |
2100mm |
|
Thread |
1400/1405mm |
|
Total time |
11s |
|
Engine |
Model |
ChangchaiL24/CZ2102
|
Type |
direct injection, horizontal, water-cooled, four stroke, single /double cylinder(s) |
|
Rated power(KW) |
25KW |
|
Rated speed(r/min) |
2400 |
|
Working system |
Distribution of work valve |
DF15.2C |
Working pump |
CBF32 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
350±1 |
|
Min turning radius(mm) |
3400 |
|
Tyres |
Standard tires |
750-16 |
Optional tires |
28X9-15 tires, same as used on forklift |

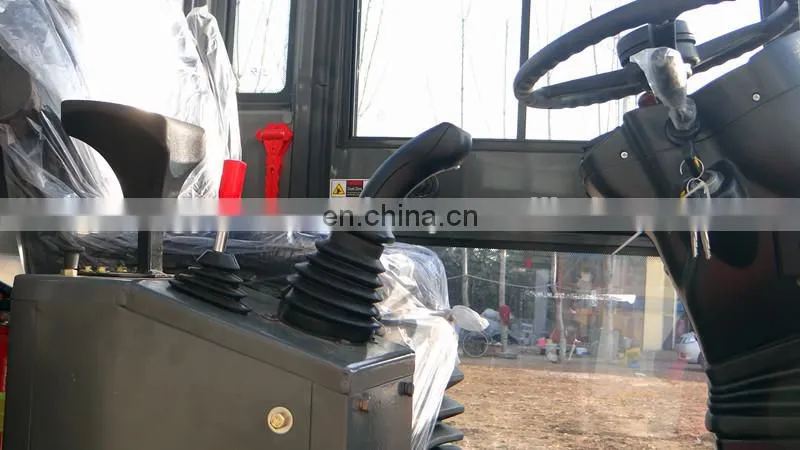

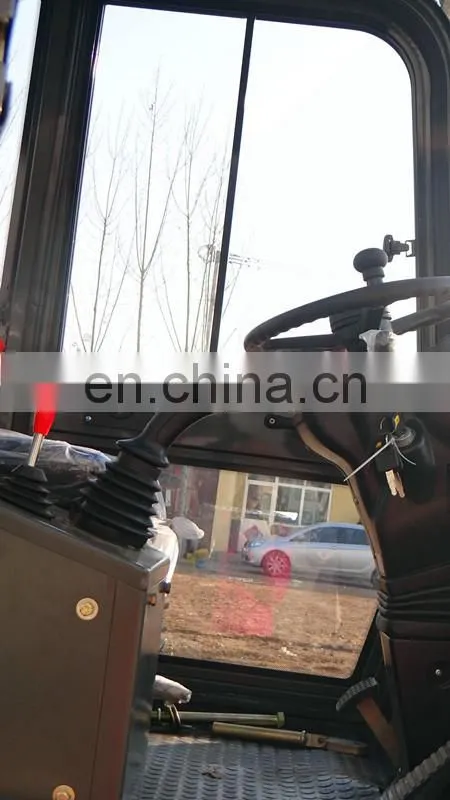

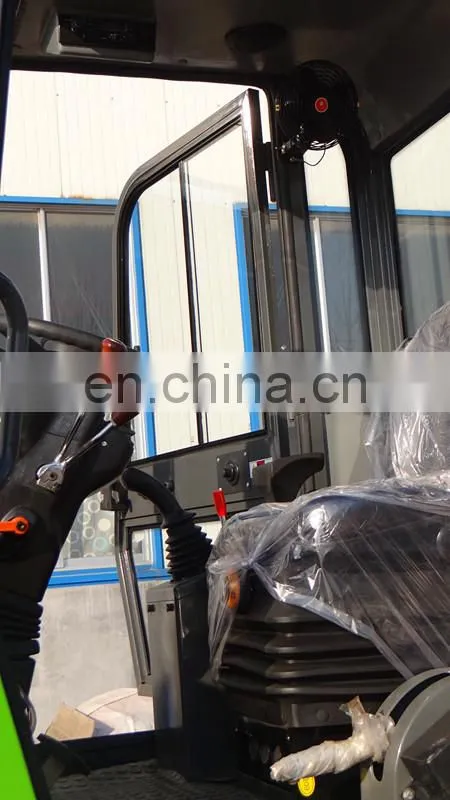

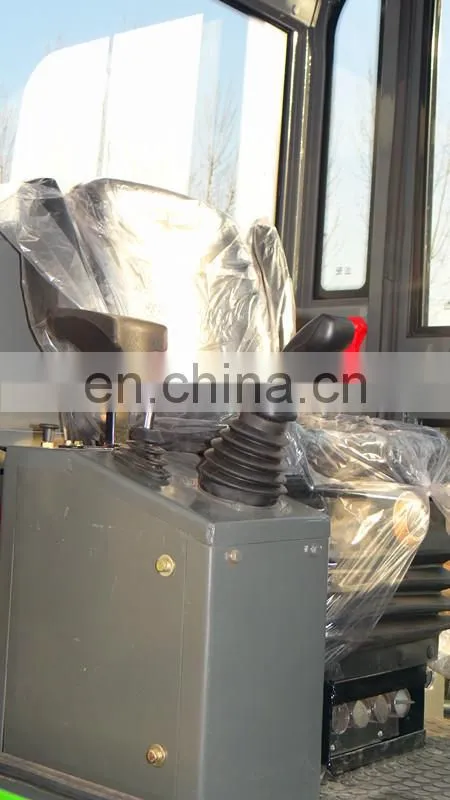

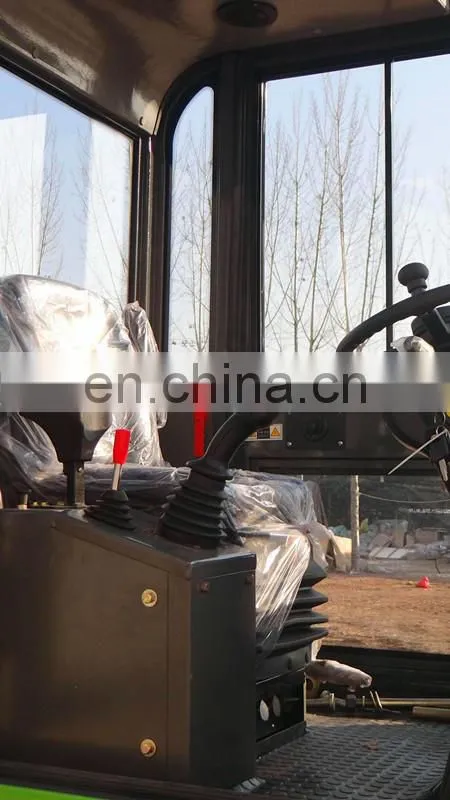

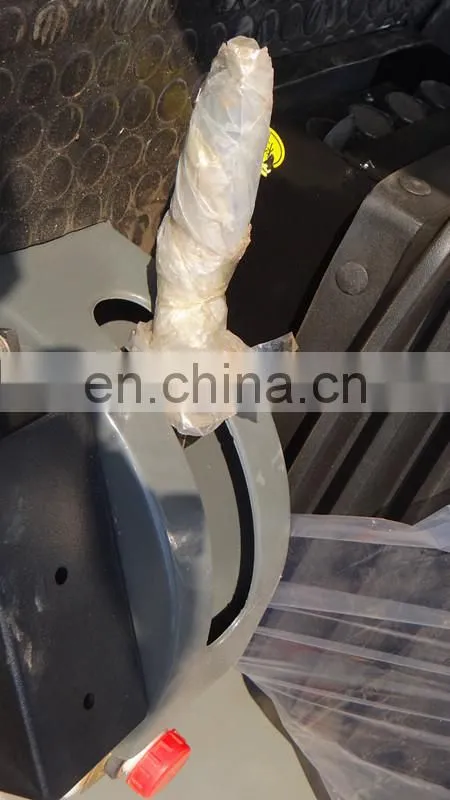

Cabin inside
