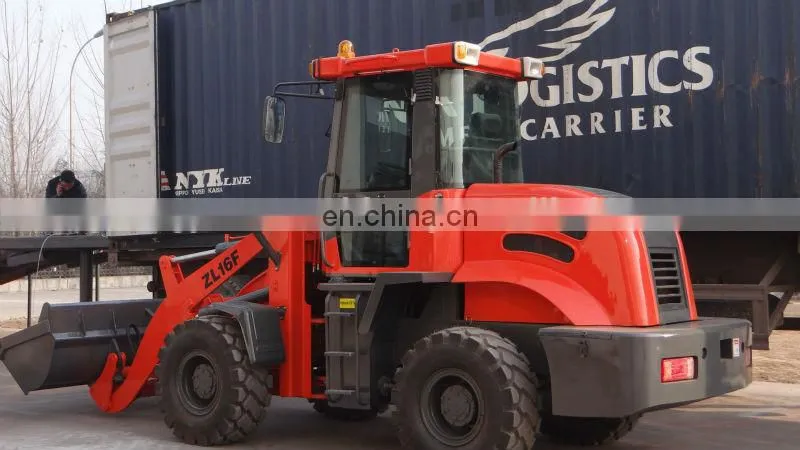

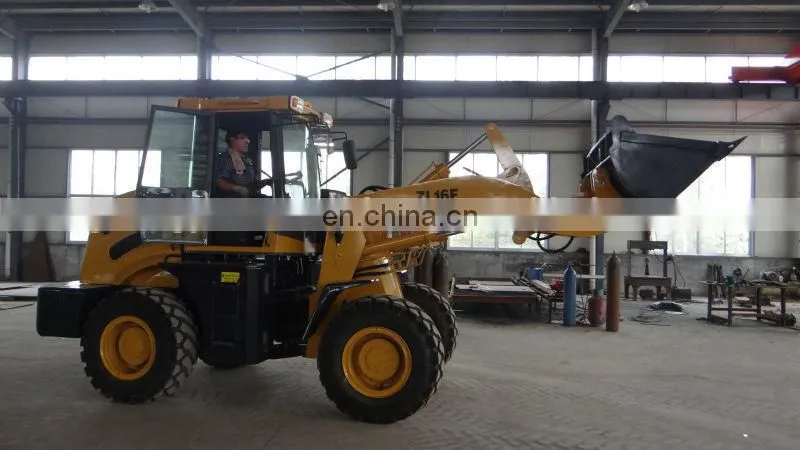

1600kg Rated Loading Hydraulic Boom Front Loader With Road Sweeper

1600kg Rated Loading Hydraulic Boom Front Loader With Road Sweeper thumbnail-1
1600kg Rated Loading Hydraulic Boom Front Loader With Road Sweeper photo-1
US$ 10,492 - 10,820 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Map Power
Place of Origin:
Shandong, China
Model Number:
ZL16
Contact Supplier Request Quote Chat Now
Sand Washing CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Map Power
Place of Origin Shandong, China
Model Number ZL16
Type Mini Loader
Certification CE, CE
After-sales Service Provided Overseas service center available
Warranty one year
Condition New
Dimension(Long * Breadth * High) 5500X1910X2700
Moving Type Wheel Loader
Rated Load 1600KG/1.6Ton

ZL16F Hydraulic 4WD boom front loader with road sweeper

1.1.6ton mini wheel loader ZL16F
2.dump height:2.85m/3.1m
3.Bucket capacity:0.8cbm
4.Hydraulic steering

1600kg Rated loading Hydraulic boom front loader with road sweeper

Weifang Map Power Company, supply all kinds of agriculture machines like dumpers, loaders, tractors, concrete mixer, forklifts, excavators and so on. We keep diverse products according to customer and market demand, and supply adjustable designed machine to adapt the using environment and the market better.

 1600kg Rated loading Hydraulic boom front loader with road sweeper1600kg Rated loading Hydraulic boom front loader with road sweeper1600kg Rated loading Hydraulic boom front loader with road sweeper1600kg Rated loading Hydraulic boom front loader with road sweeper1600kg Rated loading Hydraulic boom front loader with road sweeper1600kg Rated loading Hydraulic boom front loader with road sweeper

Here is the detailed specification of our 1.0T wheel loader, pls kindly check:

Wheel loader model ZL16F
Engine Details Model Weichaihuafeng 4102
Engine Type In-line arrangement, Water cooled,4 cycle diesel engine
Rated Power 47kw
Rated Speed 2200rpm
Buchet Bucket Capacity 0.8m³
Bucket Type Heavy-duty bolt on teeth
Max.Breakout Force 32KN
Rated Load Weight 1600kg
Operating Weight 3800kg
Overall Dimensions Overall Length 5500mm
Overall Height 2700mm
Overall Width 1650mm
Max. Discharge Height 2750mm
Wheel Base 2095mm
Tread 1360mm
Operating
Specification 		Steering system Articulated Frame with Hydraulic
steering
Min. Turning Radius 3800mm
Transmission Hydraulic convertor
Brake System Service Brake Four wheel Hydraulic spread-shoed
brake
  Parking Brake Hand Operated
Tyre 14.90-16



 We also supply all kinds of implements to customers.

 Adjustable design and OEM are available from us. Any questions or special requirements, contact me as free pls, thank you. Welcome to our factory for visit
