Home > Products > Wheel Loader > 4wd 1.2ton front shovel loader ZL12F

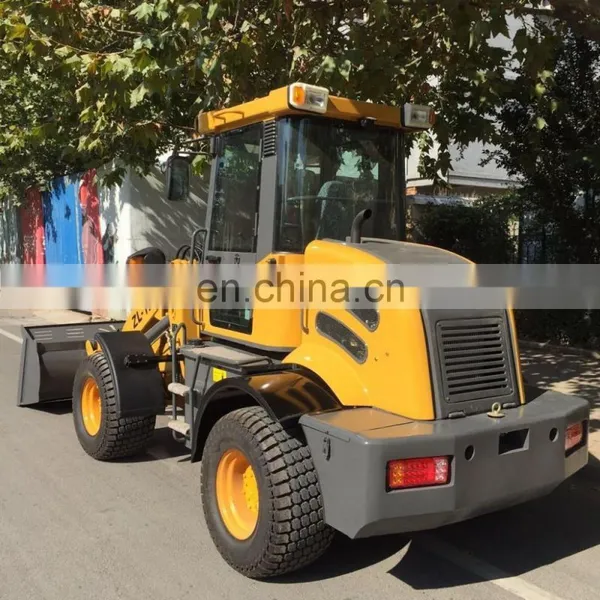

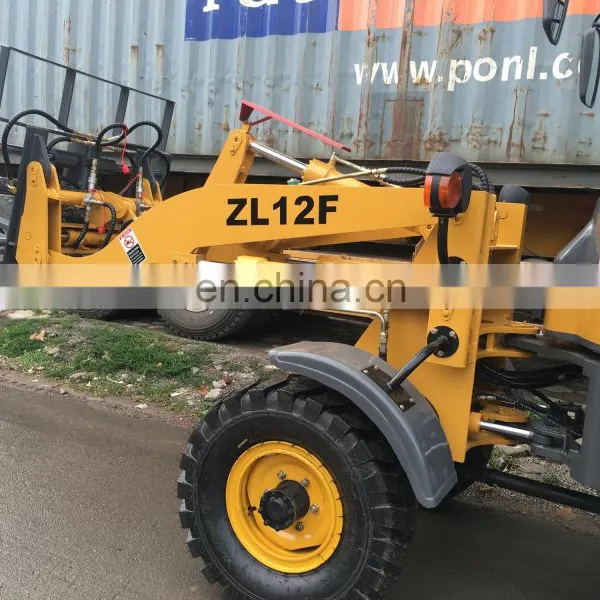

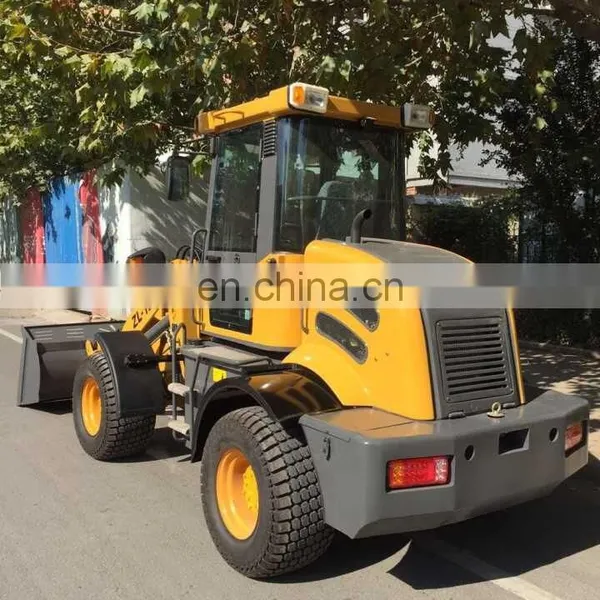

4wd 1.2ton front shovel loader ZL12F
- 500 Unit / Units per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | MAP | Place of Origin: | Shandong, China | Type: | Mini Loader |
Certification: | CE, CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12months |
Condition: | New | Dimension(Long * Breadth * High): | 4200x1685x2500 | Moving Type: | Wheel Loader |
Rated Load: | 1200kgs |
Product Description
1.2ton front shovel loader ZL-12F
*Hydraulic quick change
*Pilot control
*Tire 1100-16
*Air conditioned cabin
Mini Wheel Loader ZL12F with CE
Equip with :3-valve pilot control,Euro III engine,adjustable steering wheel,quick hitch,
luxury seat,new cabin with warm and new engine hood,12-16.5
Features
1.Fully hydraulic steering,power shift hydraulic operated working device.
2.The full hydraulic steering system is smooth in operation, stable and reliable in performance
3.Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.
4.High boom lifting capacity for heavy duty handing jobs.
5.The bucket is equipped with automatic leveling device, so that the operation is easier.
Big tractive force and traction device at the rear end, which meet more needs.
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Specifications
Wheel loader model | ZL12F | |
Engine Details | Model | Changchai 4L68 |
Engine Type | In-line arrangement, Water cooled,4 cycle diesel engine | |
Rated Power | 37kw | |
Rated Speed | 2200rpm | |
Bucket | Bucket Capacity | 0.65m³ |
Bucket Type | Heavy-duty bolt on teeth | |
Rated Load | 1000kg | |
Total Weight | 2500kg | |
Overall Dimensions | Overall Length | 4750mm |
Overall Height | 2700mm | |
Overall Width | 1720mm | |
Max. Discharge Height | 2200mm | |
Wheel Base | 1580mm | |
Tread | 1400mm | |
Operating | Transmission System | Hydraulic converter |
Steering system | Articulated Frame with Hydraulic | |
Min. Turning Radius | 3900mm | |
Transmission | Hydraulic convertor | |
Brake System | Service Brake | Four wheel Hydraulic spread-shoed |
Parking Brake | Hand Operated | |
Tire | 8.25-16 |
Why choose us? |
1. More than 200 workers.
2. With the occupying area of 2500 square meters.
3. More than 10years experiences in the industry of construction machine and agricutural machine.
4. Competitive price and high quality.
5. One hour reaches Qingdao port.
6. All the inquiries will be replied within 12 hours
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Company Contact Information
Contact :Tony
| Company Name: | Weifang Map Import & Export Co., Ltd. |
| Operational Address: | Room 1-2-2007, No. 8580, Dongfeng East Street, Kuiwen Dist., Weifang, Shandong |
| Telephone: | 0086-536-8502890 |
| Website: | |
| Website on : | |
| Store: | /store/904969 |
Packing and shippment |
Packing:Nude packing
Shipping:1set in 20GP,3SETS IN 40HQ container
Optional Accesssory
Questions:
1.The wirder tire is avaliable?
Yes,avaliable.
2.The loader can be added the preheat for the cold weather?
Yes,it can be added the preheat.
3.The engine have the options?
Yes,we can offer you the Euro3 engine.
4.The loader can be added more valves?
Yes,it can be 2 valves,3valves and 4 valve.
