*Rated capacity:3.0
*WHEEL LOADER 5TON WITH DEUTZ engine optional
Wheel loader usages:
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Item |
Specification |
Item |
Specification |
Overall working weight |
17250kg |
Transmission system(Hangzhou Advance) |
|
Rated capacity |
2.7cbm |
Torque converter type |
power shift |
Max tractive force |
160KN |
Drive Type |
Four-wheel drive |
Max breakout force |
180KN |
Tyre |
23.5/25 |
Tipping Load |
100KN |
Front wheel air pressure |
0.39±0.01Mpa |
Min ground clearance |
430mm |
Rear wheel air pressure |
0.33±0.01Mpa |
Max grade ability |
30° |
Service Brake |
Gas cap oil caliper disc type |
Max dump height |
3180mm |
Braking air pressure |
0.784Mpa |
Max dump distance |
1090mm |
Parking Braking |
Manual Caliper |
Dimension |
8040*3060*3382mm |
Steering System |
|
Min. turning radius (Outside of front wheel) |
6036mm |
type |
Articulated load-sensing hydraulic steering system |
|
Min. turning radius (Outside of the bucket) |
6746mm |
Steering Angle |
38 |
Tread |
2250 |
Steering system working pressure |
16Mpa |
Wheel base |
3250 |
Working Device |
|
No. of Axles |
2 |
Type |
Hydraulic Prior control |
Engine(Shangchai) |
System working pressure |
18Mpa |
|
Model |
C6121ZG50 |
Lifting time |
6.4 |
Type |
Inline ,water cooling ,dry cylinder, direct injection |
Falling time |
4.2 |
Number of cylinder-bore/stroke |
6-126*130mm |
Discharging time |
1.1 |
Max torque |
908N.m |
Total time |
11.3 |
Rated power |
162kw |
Fueling Volume |
|
Rated speed |
2200r/min |
Fuel |
300L |
NO. of Cylinder |
6 |
Hydraulic oil |
210L |
Displacement |
9726ml |
Axle |
2X27L |
Cylinder Bore X Stroke |
126*130mm |
Engine |
20L |
Min fuel consumption |
215g/Kw.h |
Gearbox |
45L |
|
|
Braking System |
4L |
| Why choose us? |
1. More than 200 workers.
2. With the occupying area of 2500 square meters.
3. More than 8 years experiences in the industry of construction machine and agricutural machine.
4. Competitive price and high quality.
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.

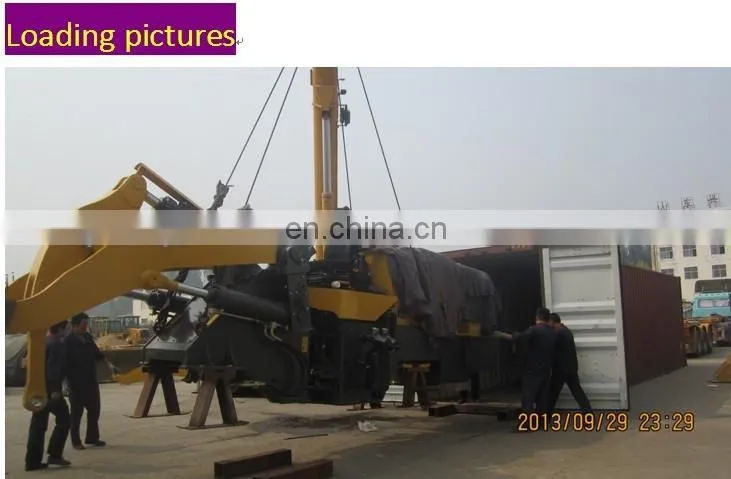

| Packing and shippment |
Packing:Nude packing
Shipping:1SETS IN 40HQ container
