1ton Wheel Loader With 4 in 1 Bucket,china Factory Loader,mini Wheel Loader

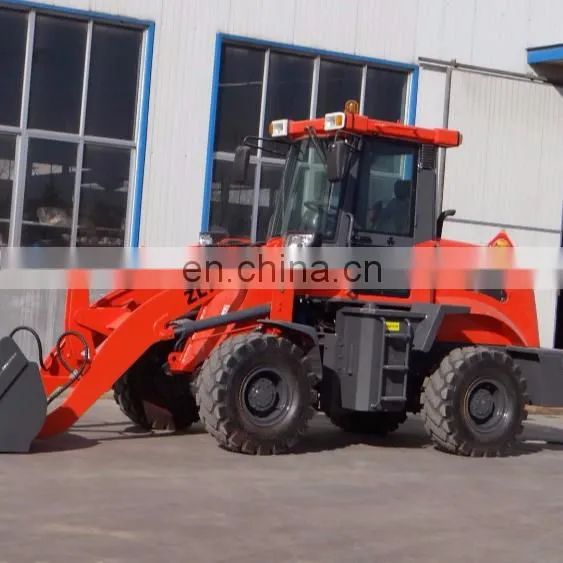

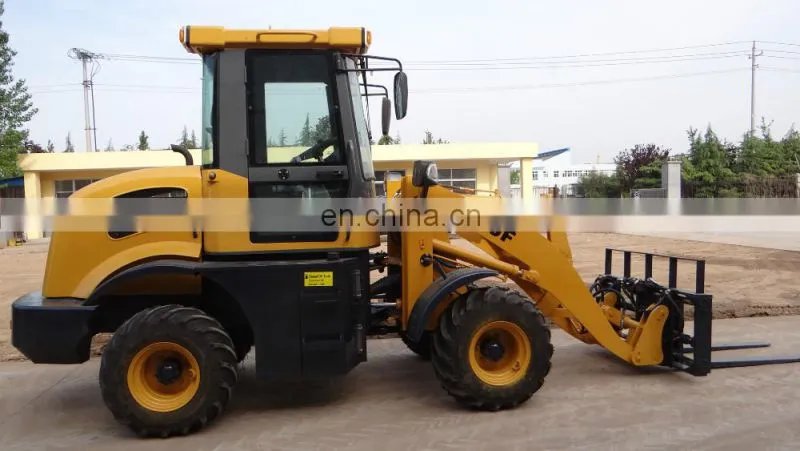

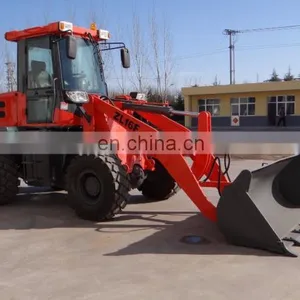

1ton Wheel Loader With 4 in 1 Bucket,china Factory Loader,mini Wheel Loader photo-1

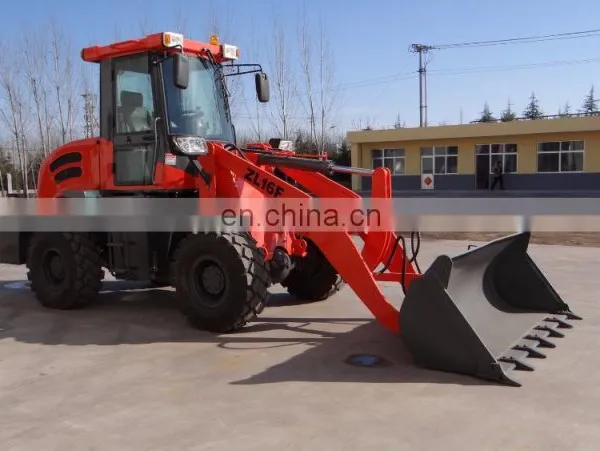

1ton Wheel Loader With 4 in 1 Bucket,china Factory Loader,mini Wheel Loader photo-2

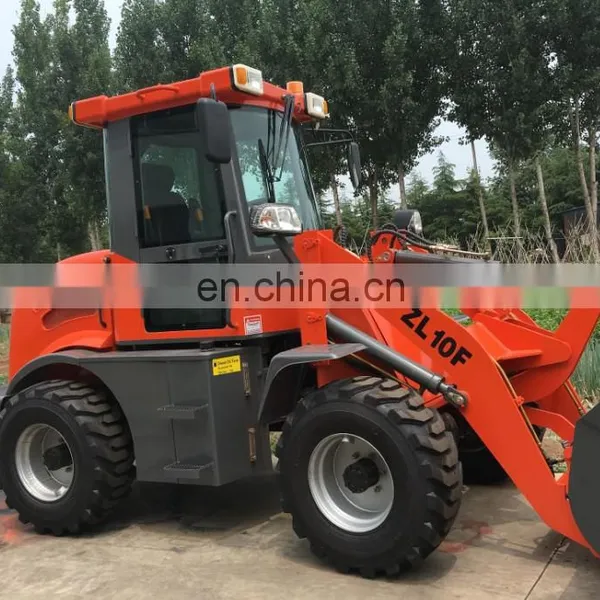

1ton Wheel Loader With 4 in 1 Bucket,china Factory Loader,mini Wheel Loader photo-3
1ton Wheel Loader With 4 in 1 Bucket,china Factory Loader,mini Wheel Loader photo-4

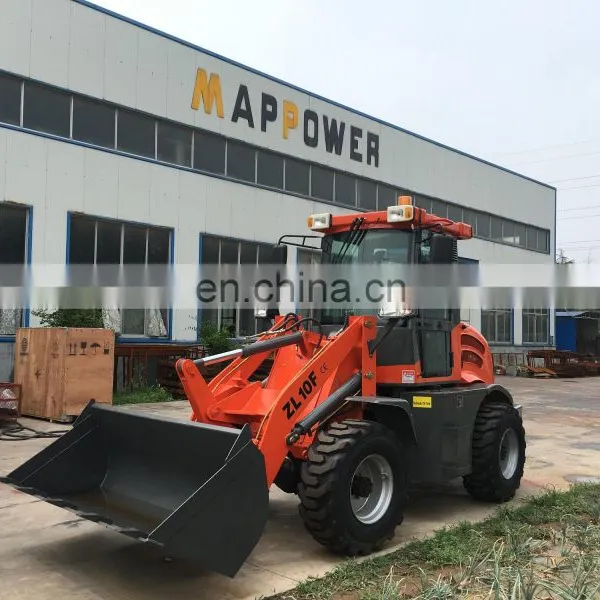

1ton Wheel Loader With 4 in 1 Bucket,china Factory Loader,mini Wheel Loader photo-5

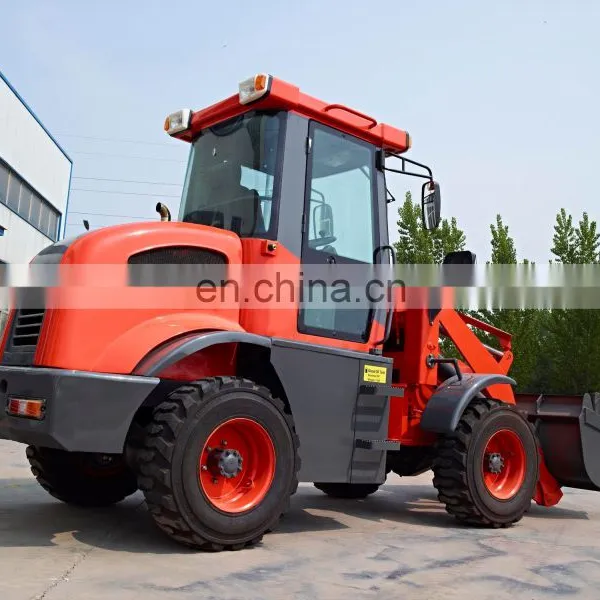

1ton Wheel Loader With 4 in 1 Bucket,china Factory Loader,mini Wheel Loader photo-6
US$ 7,200.01 - 8,000.01 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
MAP
Place of Origin:
Shandong, China
Model Number:
ZL10F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name MAP
Place of Origin Shandong, China
Model Number ZL10F
Type Front Loader
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Condition New
Dimension(Long * Breadth * High) 4450*1650*5650(MM)
Moving Type Wheel Loader
Rated Load 1.0 ton or 2200 LB

  1ton wheel loader with 4 in 1 bucket



Product Description

This kind mini whell loader is  producted by perfessonal manufacture MAP POWER.It can operate at narrow please and can greatly reduce human efforts.The wheel loader has been export to more than 40 countries.We also design many kinds of attachments for wheel loader,such as grass fork, 4 in 1 bucket, snow blower and blade,snow bucket,pallet fork,etc

OVERALL DIMENSION
1 LENGTH(with bucket on ground) 4450(MM)
2 WIDTH(to outside of wheels) 1650(MM)
4 HEIGHT(to the top of the grab) 2650(MM)
5 WHEEL BASE 2150(MM)
6 TREAD 1400(MM)
MAIN TECHNICAL SPECIFICATION
1 RATE LOAD 1000(KG)
2 OPREATING WEIGHT 2800(KG)
3 RATEED BUCKET CAPACITY 0.45(M3)
5 MAX.DUMP CLEARANCE 2750(MM)
6 MAX.BREAKOUT FORCE 36KN
7 MIN.TURNING RADIUS 4536(MM)
9 TRAVELING SPEED 2 FORWARD/REVERSE
  (1)1ST GEAR FORWARD 5.75(KM/H)
  (2)2ST GEAR FORWARD 23.86(KM/H)
  (3)1ST GEAR REVERSE 5.85(KM/H)
  (4)2ST GEAR REVERSE 24(KM/H)
ENGINE
1 MODEL changchai490
2 TYPE In-line arrangement,water-cooled
3 RATED OUTPUT 37(KW)
4 Inter-bore of cylinder/stroke 98*105MM
5 Rated speed 2300(r/min)
6 Max.torque 275(N.M)
7 starting type Electric
8 Min.fuel consumption 230(g/kw.h)
9 Net weight 240(kg)
TRANSMISSION SYSTEM
1 MODEL YJ240
2 TYPE Fixed-spindle power shift
3 COLLING TYPE Pressure oil circulating
TRANSIMISSION CASE
1 TYPE Power shift,spur gear constantly in mesh
2 GEAR SHIFT POSITION
ALEX AND TYPE
1 TYPE OF MAIN REDUCER Spiral bevel gear,single stage
2 SIZE OF TIRE 1100-16
BRAKE SYSTEM
1 Sevice brake 4 Wheel hydraulic brake
2 Parkig brake Hand operated
STEERING SYSTEM
1 TYPE Middle articulated frame with
    hydraulic
    power steering
FEUL CAPACITY
1 OIL TANK 80L
2 HYDRAULIC OIL TANK 50L



1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader



1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader

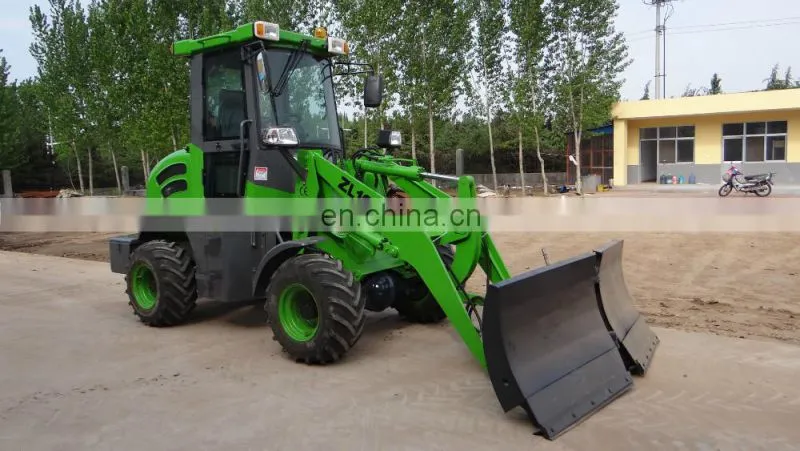

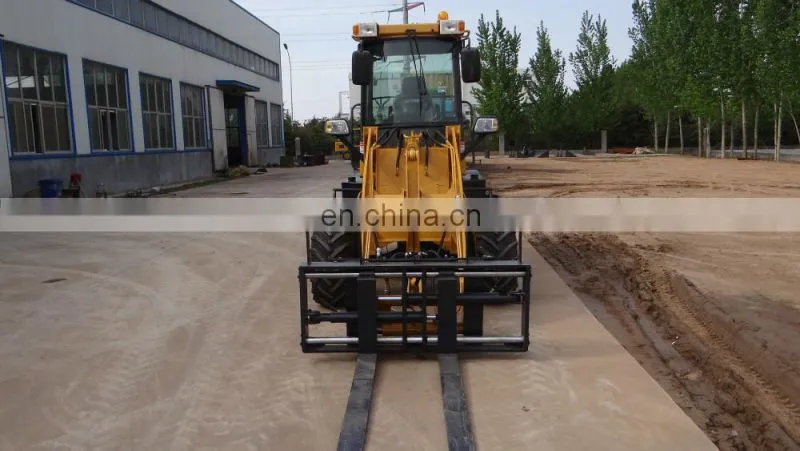

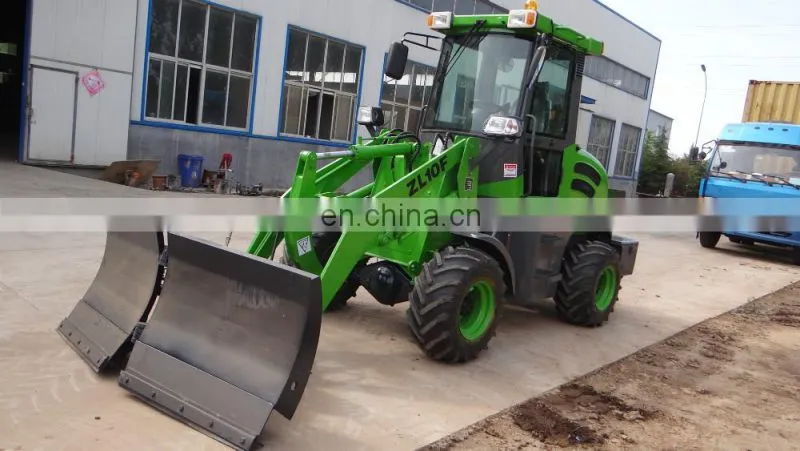

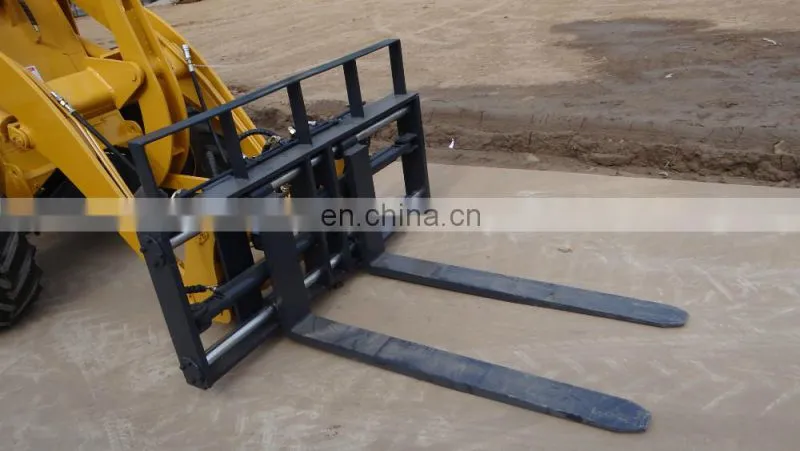

Attachments photos

1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader

1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader

Company information

Weifang MAP Import and Export Co,Ltd . was founded in 2006.We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export.We keep diverse products according to customer and market demand.We produce and supply truck crane, site dumpers,wheel loaders, tractors,implements, wheel excavators, crawler excavators,backhoe loaders,forklifts,road rollers,light towers,concrete mixers,plate compactor,impact tampers, road cutters,concrete vibrators,and so on.



1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader1ton wheel loader with 4 in 1 bucket,china factory loader,mini wheel loader



1.A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.

2.A well managed quality control system to customize on clients requirements.We can design according to the customers usage requirement.

3.Unparalleled after sales service skilled,professional repair services can significantly improve customer satisfaction during the warranty period,we provide free parts and free cost to delivery the parts to customers ware house at first time .



If there have any question,please feel free to contact me .
