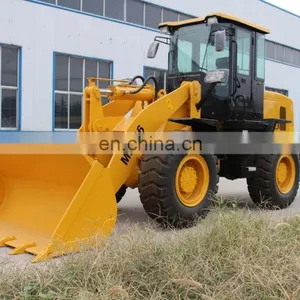

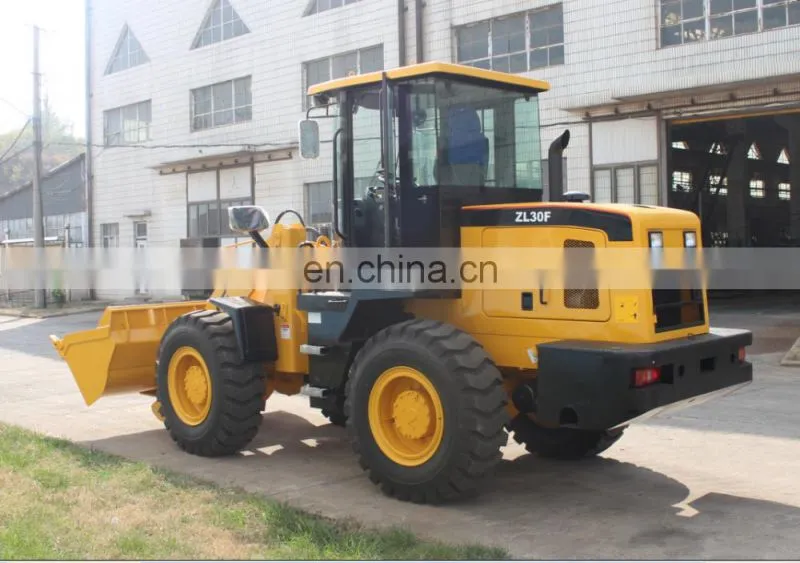

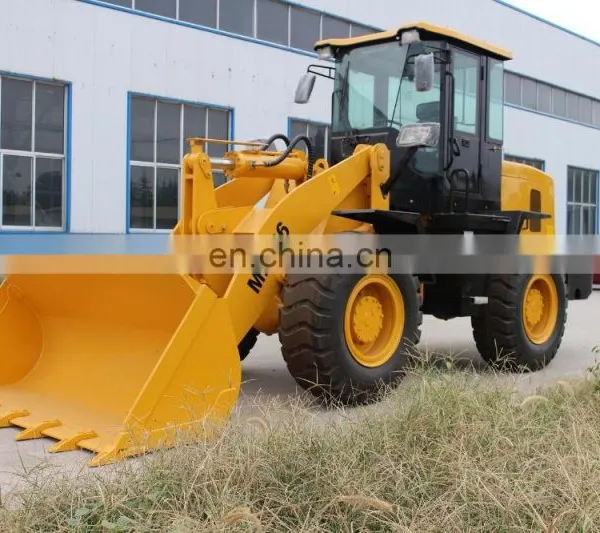

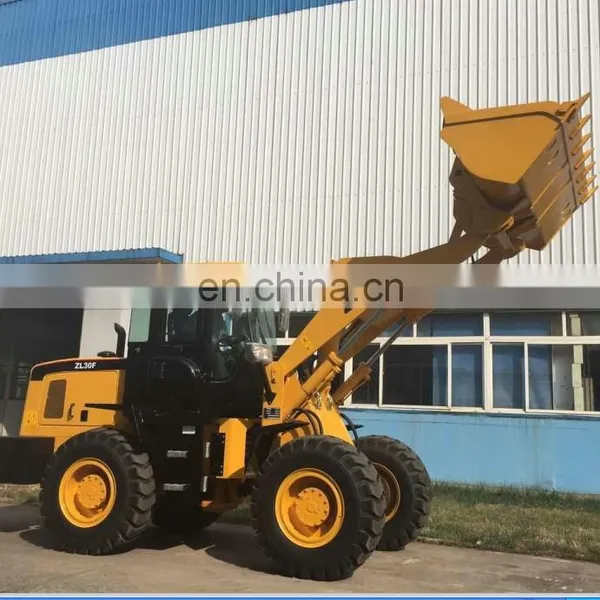

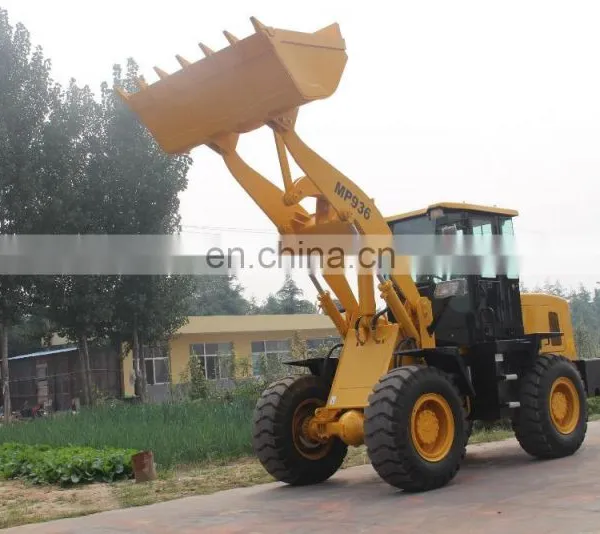

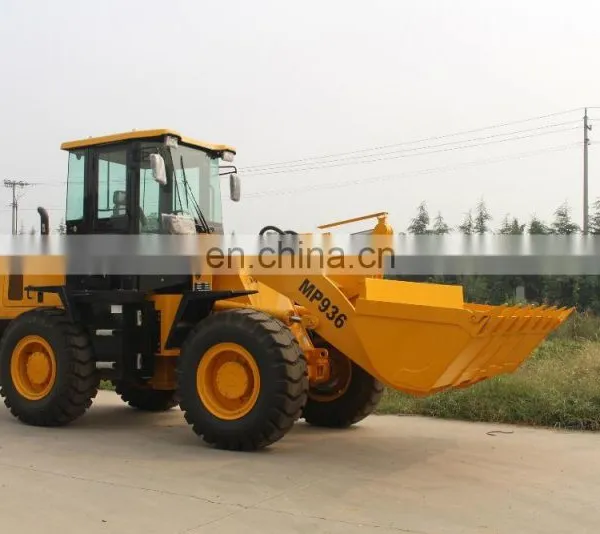

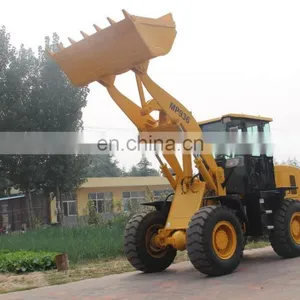

Joystick control ZL30F 3ton wheel loader from china
Features OF 936 wheel loader:
1. streamlined appearance design, elegant and generous.
2. bucket of working device can be set level automatically, computer is adopted to optimize design, high working efficiency
3. sealed drivers cabin of new type, which may allocate conditioner, more comfortable operating environment
4. torque device of single three components, gearbox of fixed axle type, more reliable performance
5. Deutz (92kw) diesel engine, powerful motive force, reliable performance, high efficiency and economizing on fuel
6. can allocate many kinds of selectable assembly such as wooden forks, pipe forks, grass forks, stone bucket, enlarged bucket.ect to meet the needs of various working states.
Overall Dimension | ||
1 |
Length(with bucket on ground) |
7050(mm) |
2. |
Width(to outside of wheels) |
2430(mm) |
3 |
Height(To the top of the cab) |
3120(mm) |
4 |
Wheel base |
2760(mm) |
5 |
Tread |
1800(mm) |
Main Technical Specification | ||
1 |
Rated load |
3000(Kg) |
2 |
Operating weight |
10000KG |
3 |
Rated bucket capacity |
1.7(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
135kN |
6 |
Max. dump clearance |
3020(mm) |
7 |
Min. turning radius |
5700mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
4 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
Deutz WP6G126E22I |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
92(kW) |
4 |
Inter-bore of cylinder/stroke |
105 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
860(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
162(g/Kw.h) |
Transmission System | ||
Torque Converter | ||
1 |
Model |
YJ320B-1 |
2 |
Type |
Full-powershift,countershaft type |
3 |
Cooling type |
Pressure oil circulating |
Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
4Forward and 2 reverse gears |
Axle and Tire | ||
1 |
Axle |
Laiyang(China famous brand) |
2 |
Main reducer pattern |
Arc taper gear,modelration of first grade |
3 |
Pattern of wheel side moderation |
Single stage planetary |
4 |
Size of tire |
17.5-25 |
Hydraulic system | ||
1 |
Implement pump |
CBGV2100 |
2 |
Displacement |
100ml/r |
3 |
System working pressure |
27.5MPa |
4 |
Distribution device model |
DF25.2C |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Soft axle control, outside bunch drum type |
Steering System | ||
1 |
Pattern |
Articulated and hydraulic steering |
2 |
Min turning radius(outside of bucket) |
5700mm |
3 |
Max turning angle |
37+/-1 |
Quality assurance:
Have established and implemented a standard procedure for quality management system and product certification.
QA/QC inspectors work independently form the production lines
Keep its supplier assessment reports and be traced by lot identification to the appropriate raw material test reports
A procedure to conducting random inspection after final packaging.
A clear procedure for handling customer feedback. “7 Days Guarantee” for customer renewing the consumable accessories.
Tool case and partly consumable accessories attached with shipment meanwhile.
After-sales and Quality Warrant Contact for every purchase order.
