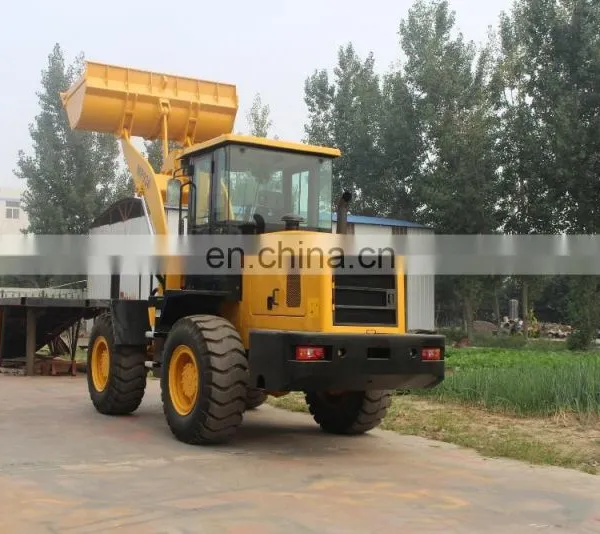

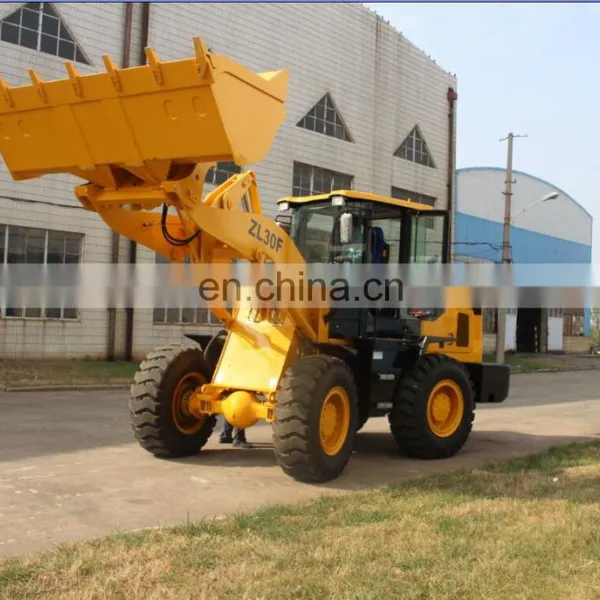

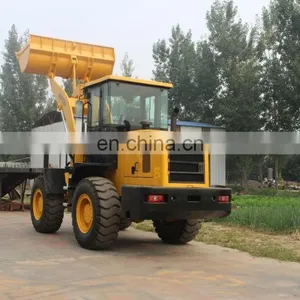

Wheel Loader Moving Type 3ton ZL30 front loader

Overall Dimension

1

Length(with bucket on ground)

7050(mm)

2.

Width(to outside of wheels)

2430(mm)

3

Height(To the top of the cab)

3120(mm)

4

Wheel base

2760(mm)

5

Tread

1800(mm)

Main Technical Specification

1

Rated load

3000(Kg)

2

Operating weight

10000KG

3

Rated bucket capacity

1.7(CBM)

4

Bucket type

Heavy-duty bolt teeth

5

Max. breakout force

135kN

6

Max. dump clearance

3020(mm)

7

Min. turning radius

5700mm

8

Driving system

Hydraulic converter

9

Traveling speed(Km/h)

4 forward and 2 reverse

Diesel engine

1

 Model

Deutz WP6G126E22I

2

Type

In-line arrangement. Water cooling

3

Rated output

92(kW)

4

Inter-bore of cylinder/stroke

105 (mm)

5

Rated speed

2300(r/min)

6

Max. Torque

860(N.M)

7

Starting type

Electric

8

Min. specific fuel consumption

162(g/Kw.h)

Transmission System

Torque Converter

1

Model

YJ320B-1

2

Type

Full-powershift,countershaft type

3

Cooling type

Pressure oil circulating

Transmission case

1

Model

MAP

2

Type

Power  shift, spur gear constantly in mesh

3

Gear shift position

4Forward and 2 reverse gears

Axle and Tire

1

Axle

Laiyang(China famous brand)

2

Main reducer pattern

Arc taper gear,modelration of first grade

3

Pattern of wheel side moderation

Single stage planetary

4

Size of tire

17.5-25

Hydraulic system

1

Implement pump

CBGV2100

2

Displacement

100ml/r

3

System working pressure

27.5MPa

4

Distribution device model

DF25.2C

Brake system

1

Service brake

Air assisted oil on four wheel

2

Parking brake

Soft axle control, outside bunch drum type

Steering  System

1

Pattern

Articulated and hydraulic steering

2

Min turning radius(outside of bucket)

5700mm

3

Max turning angle

37+/-1
