Brief description:

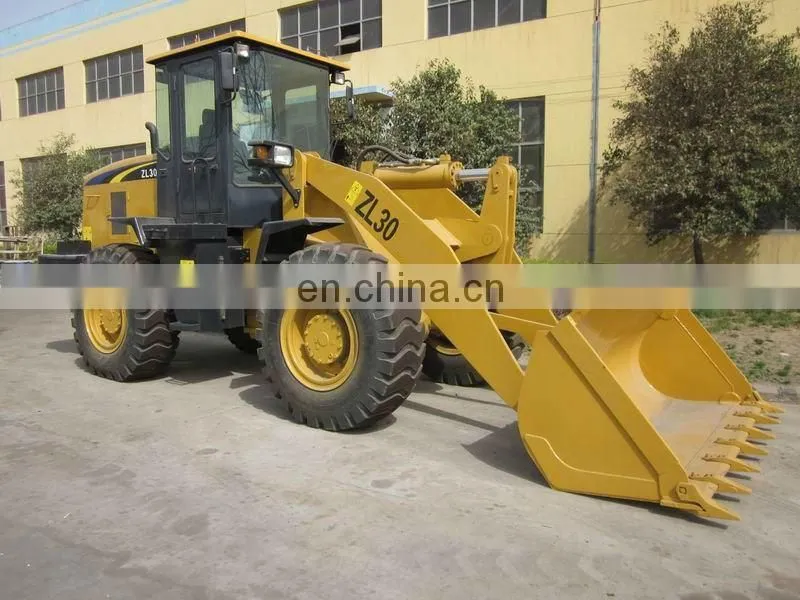

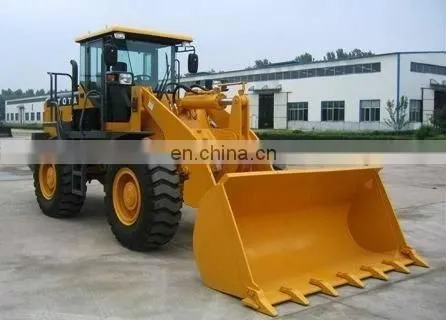

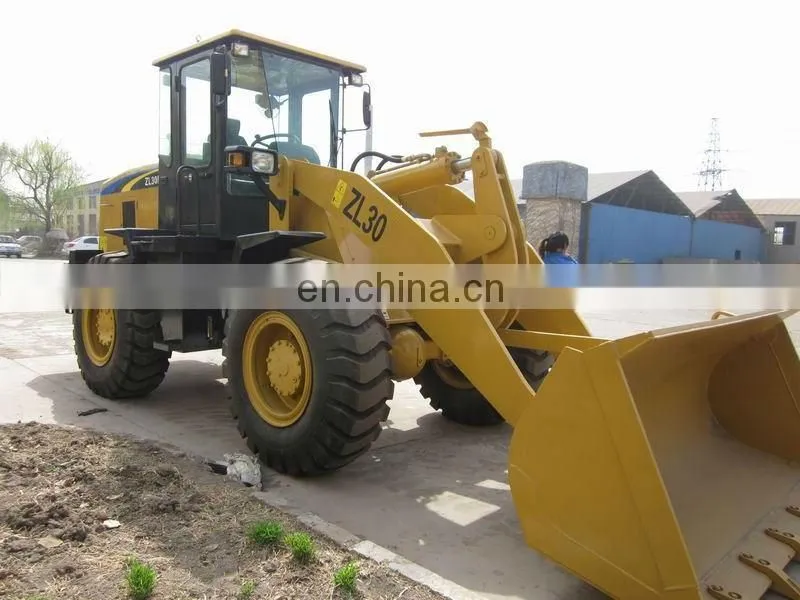

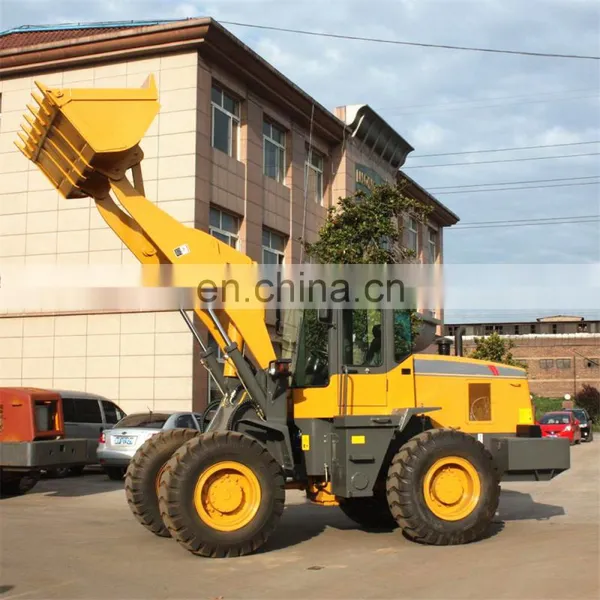

ZL30 Equipped with reliable Weichai engine
4 forward & 2 reverse power shift transmission
Combined seal cylinder obtains high seal performance and more reliability.
Overall Dimension | ||
1 |
Length(with bucket on ground) |
7050(mm) |
2. |
Width(to outside of wheels) |
2430(mm) |
3 |
Height(To the top of the cab) |
3120(mm) |
4 |
Wheel base |
2760(mm) |
5 |
Tread |
1800(mm) |
Main Technical Specification | ||
1 |
Rated load |
3000(Kg) |
2 |
Operating weight |
9500KG |
3 |
Rated bucket capacity |
1.7(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
135kN |
6 |
Max. dump clearance |
3020(mm) |
7 |
Min. turning radius |
5700mm |
8 |
Transmission |
Hydraulic converter |
|
Number of gear shift |
4 forward and 2 reverse |
9 |
Max. traveling speed(Km/h) |
36km/h |
Diesel engine | ||
1 |
Model |
WeichaiDeutzTD226B |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
92(kW) |
4 |
Inter-bore of cylinder/stroke |
105 (mm) |
5 |
Rated speed |
2300(r/min) |
6 |
Max. Torque |
860(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
162(g/Kw·h) |
Transmission System | ||
I. Torque Converter | ||
1 |
Model |
YJ320B-1 |
2 |
Type |
Full-powershift, countershaft type |
3 |
Cooling type |
Pressure oil circulating |
II. Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
4Forward and 2 reverse gears |
III. Axle and Tire | ||
1 |
Axle |
Xuzhou/Laiyang(China famous brand) |
2 |
Main reducer pattern |
Arc taper gear, moderation of first grade |
3 |
Pattern of wheel side moderation |
Single stage planetary |
4 |
Size of tire |
17.5-25 |
Hydraulic system | ||
1 |
Implement pump |
CBGV2100 |
2 |
Displacement |
100ml/r |
3 |
System working pressure |
27.5MPa |
4 |
Distribution device model |
DF25.2C |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Soft axle control, outside bunch drum type |
Steering system | ||
1 |
Pattern |
Articulated and hydraulic steering |
2 |
Min turning radius(outside of bucket) |
5700mm |
3 |
Max turning angle |
37+/-1 |
