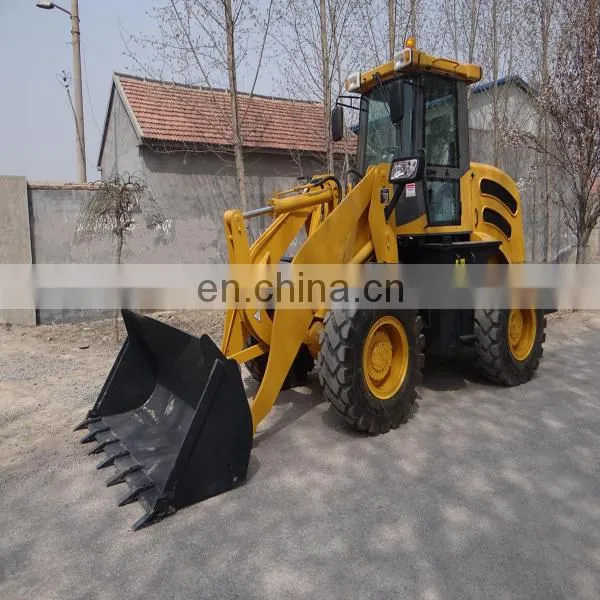

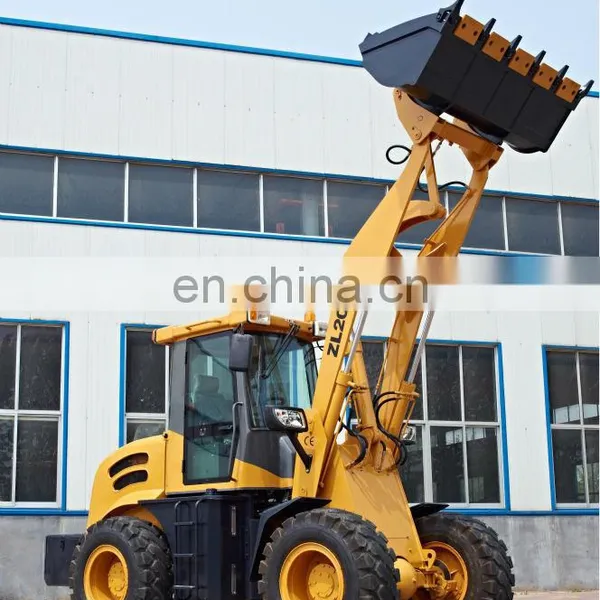

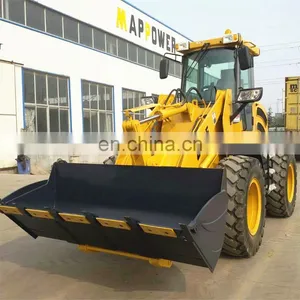

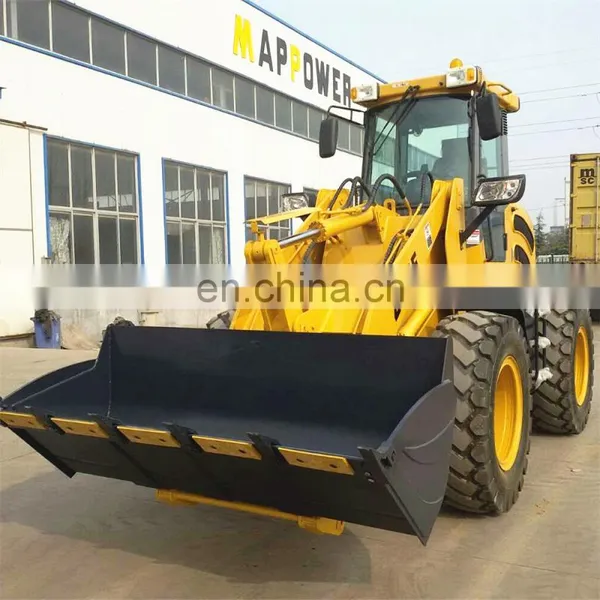

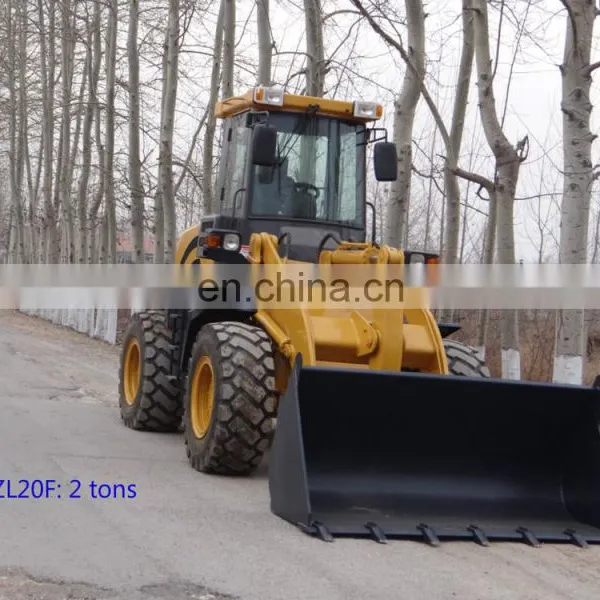

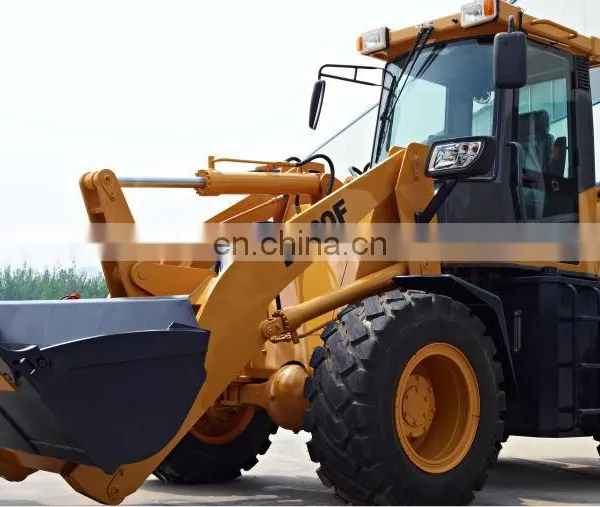

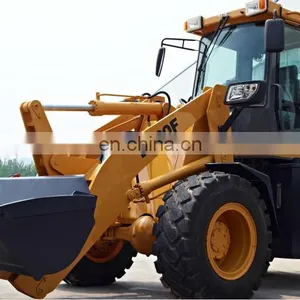

Help CenterZL20F Hydraulic Operation Mini Wheel Loader Small Construction Equipment
Related Products
-
ZL20F Quick Hitch Control Mini Front End Loader With CEUS$ 12,000 - 14,000MOQ: 1 Unit -
ZL20F Hydraulic Operation Quick Hitch Control Mini Front End Wheel LoaderUS$ 12,000 - 14,000MOQ: 1 Unit
-
ZL20F Hydraulic Operation Quick Hitch Control Mini Front End LoaderUS$ 12,000 - 14,000MOQ: 1 Unit
-
ZL16F Front End Small Wheel LoaderUS$ 9,220 - 9,730MOQ: 1 Unit
-
1.6 Ton Mini Wheel Loader Prices New Cabin And A/CUS$ 9,220 - 9,730MOQ: 1 Unit
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export. We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
hydraulic steering front end wheel loader with CE
1)Dumping height:3100mm
2)Loader Bucket :1.2CBM
3)17/16-20 Tire
4)Joystick and Pilot control
Wheel Loader CS920 with CE
Optional,
1)Joystick, quick hitch
2)Cummins engine
Tools,
Grass fork,log clamp,pipe fork,pallet fork,snow blade.
Features:
*Fully hydraulic steering, power shift hydraulic operated working device.
*The full hydraulic steering system is smooth in operation, stable and reliable in performance
*Optional attachments like pallet fork, grass fork, snow blade and snow buckets available to all materials.
*High boom lifting capacity for heavy duty handing jobs.
*The bucket is equipped with automatic leveling device, so that the operation is easier.
*Big tractive force and traction device at the rear end, which meet more needs.
Detailed factures:

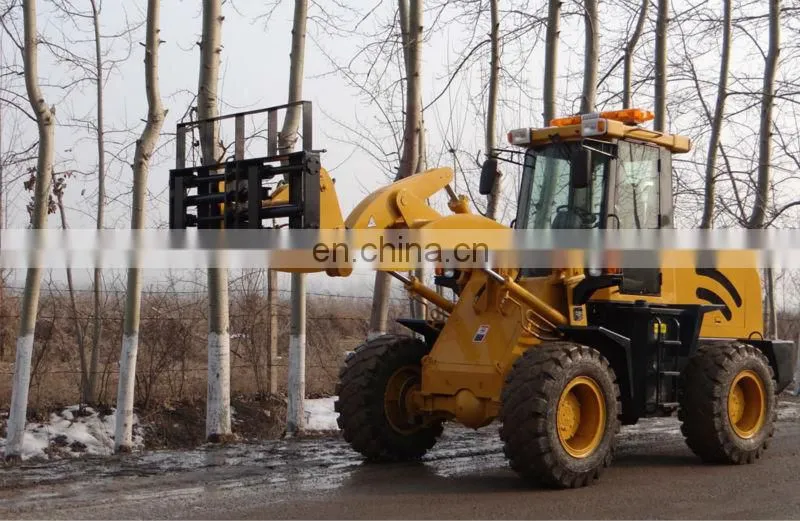

Pallet fork

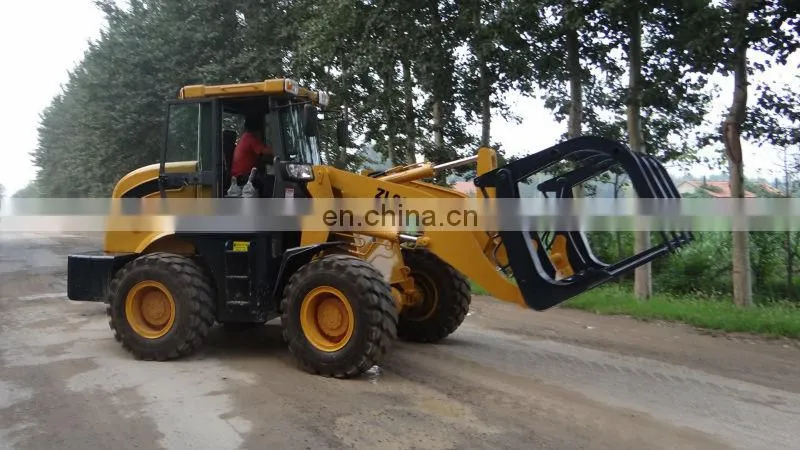

Log clamp

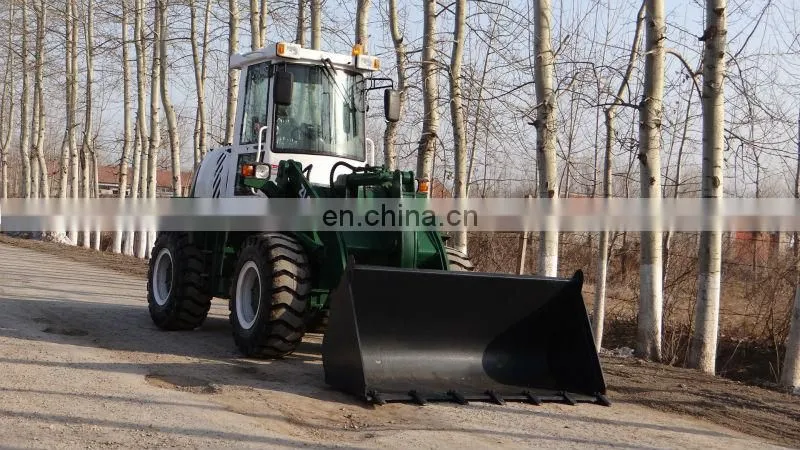

Bucket
Specification
Performance |
1 |
rated loading |
2000kg |
2 |
overall weight |
5800kg |
|
3 |
rated bucket capacity |
1.2m3 |
|
4 |
maximum tractive force |
54KN |
|
5 |
maximum breakout force |
45.4KN |
|
6 |
maximum grade ability |
30 |
|
7 |
maximum dump height |
3000mm |
|
8 |
maximum dump reach |
752mm |
|
9 |
overall dimension (L×W×H) |
5600×2100×2850mm |
|
10 |
minimum turning radius |
5251mm |
|
Engine |
11 |
model |
4105 |
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4105×125mm |
|
14 |
rated power |
58kw2200r/min |
|
15 |
maximum torque |
270N.m |
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ280A |
18 |
gearbox mode |
Countershaft power-shift |
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
20 |
maximum speed |
24km/h |
|
Drive axles |
21 |
main reducing spiral
|
Circular Arc Bevel gear, single stage |
22 |
decelerating mode |
Single stage planetary type |
|
23 |
wheel base (mm) |
2400mm |

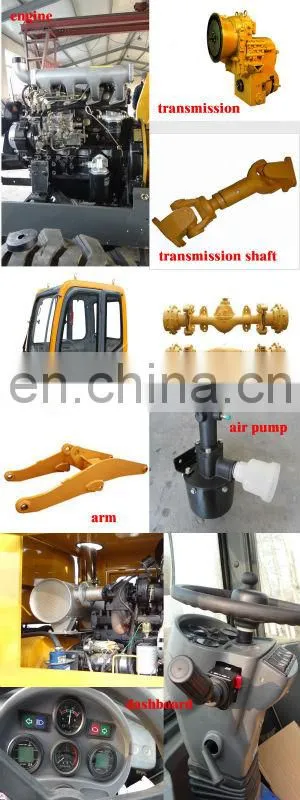

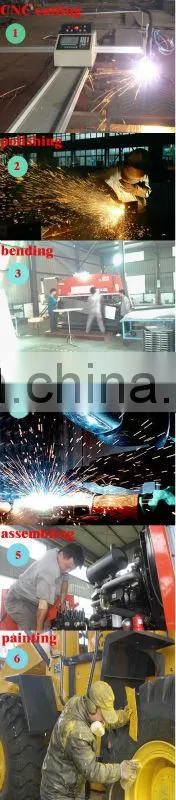

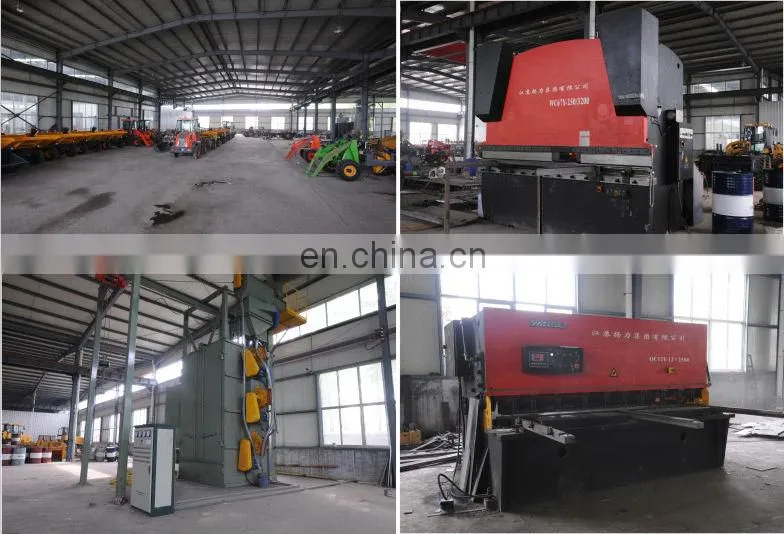

Standard Accessories: Manufacturing Process:
Customers:
Useing:
related auxiliary equipment:
Certificate:
Our team:
1 Packaging Details: wheel loaders are nude packed, 2 units for one 40'HQ
2 Delivery Detail: within 20 workdays after receipt the wheel loader deposit
Our factory
Why choose us?:
1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service
1. How to order?
-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.
-If you still don't understand, please do not hesitate to ask me.
2. Related products?
ZL06F ZL08F ZL10F ZL12F ZL15F ZL16F ZL20F
3. How do we visit you and your factory?
-First of all, welcome you or any appointed agent to vist and inspect our factory.
-You can fly to Shanghai airport, then come from Shanghai railway station to Weifang city. (3 hours)
-You can fly to Qingdao airport, then come from Qingdao railway station to Weifang city. (45 minutes)
-We can pick up you at Qingdao airport or Weifang railway station.
-Please kindly let us know your schedule in details, so that we can arrange everything for you.
4. Why you choose us?
-As manufacturer, our products have excellent quality and competitive price.
-Good after-sales services and 24 months warranty are visible.
-Strictly testing and checking before shipping.
-7 years experience in manufacturing and 7 years exporting experience in Alibaba and Made-In-China.
5. How to contact with me?
Sales:kimmy xie
Mob:-86-13721982293
skype:mappower1
-Address: Office add: R 2007 rongguanhuafu B Kuiwen, Weifang, Shangdong, China
Factory add: Shanshui Road,Changle,Weifang,Shangdong,China
