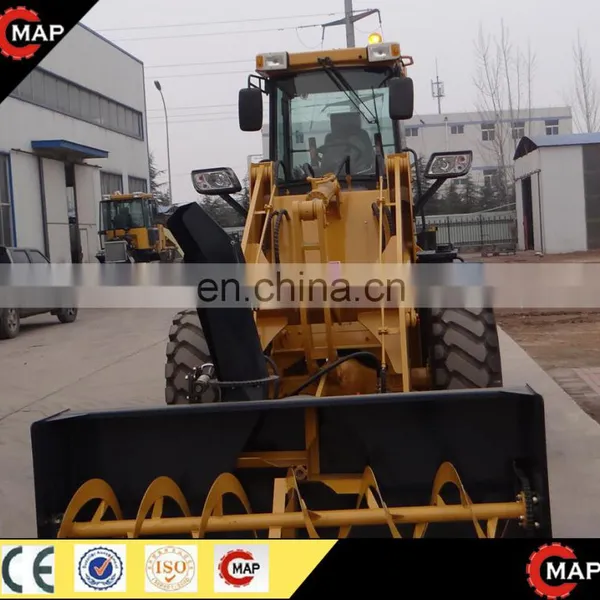

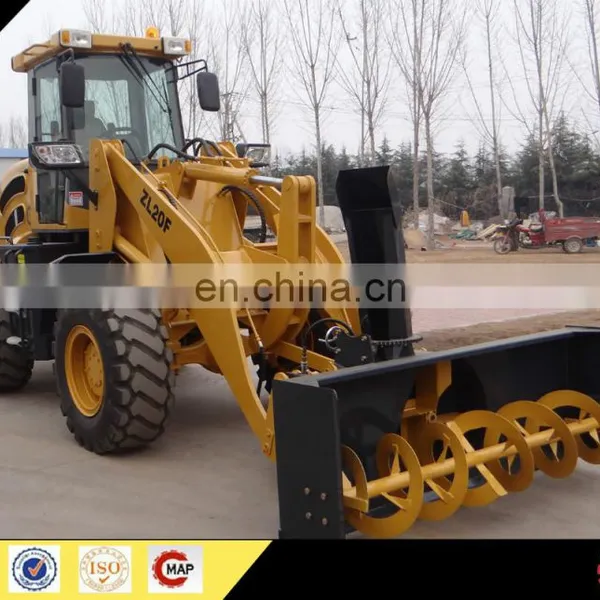

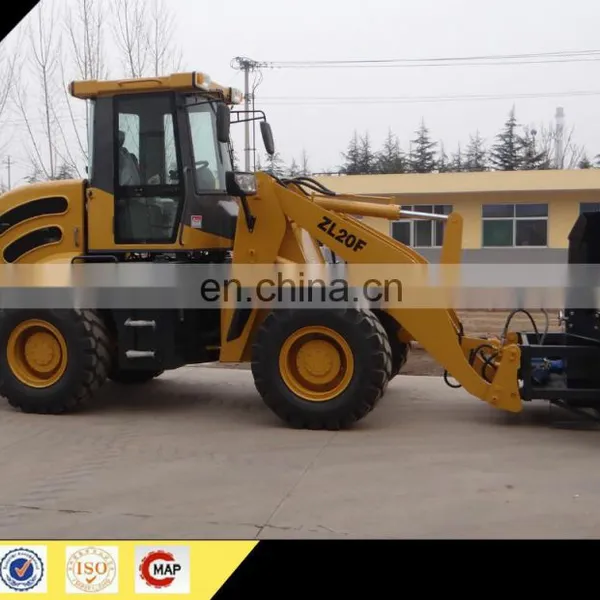

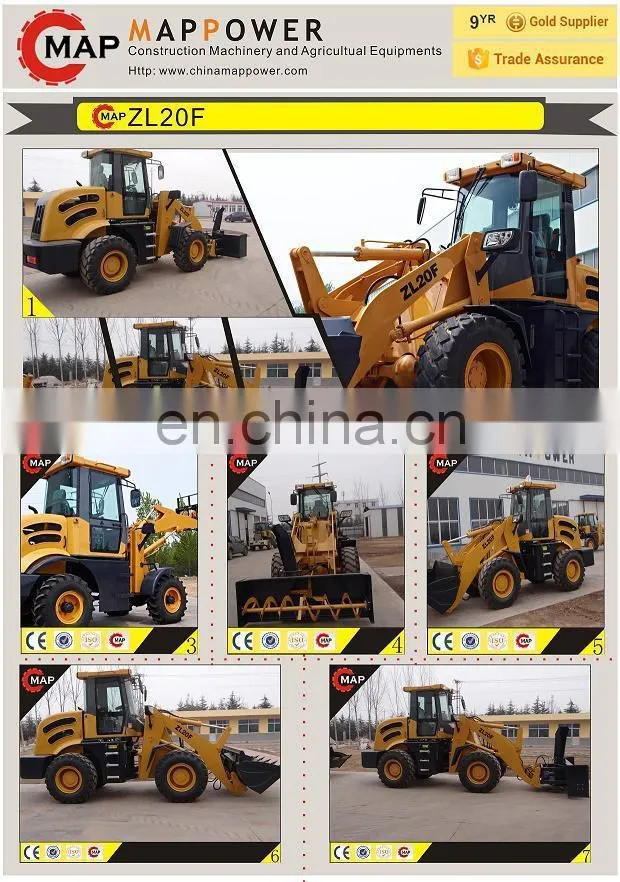

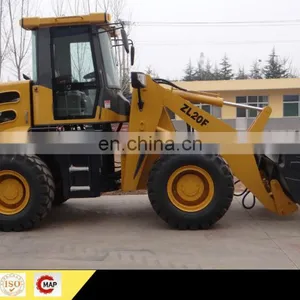

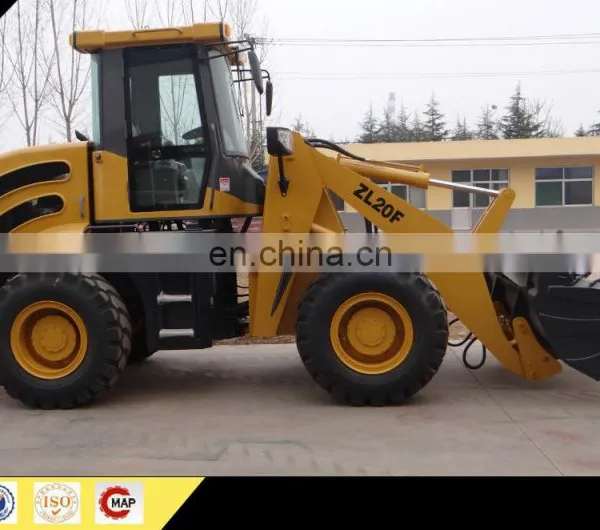

ZL20F full hydraulic small wheel loader with CE
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export. We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield, protecting road section, the municipal engineering, and underground mines and so on.
Product Description
hydraulic steering front end wheel loader with CE
1)Dumping height:3100mm
2)Loader Bucket :1.2CBM
3)17/16-20 Tire
4)Joystick and Pilot control
Wheel Loader CS920 with CE
Specification
Overall Dimension | ||
1 |
Length(with bucket on ground) |
5850(mm) |
2. |
Width(to outside of wheels) |
2050(mm) |
3 |
Height(To the top of the cab) |
2860(mm) |
4 |
Wheel base |
2400(mm) |
5 |
Tread |
1640(mm) |
6 |
Min. ground clearance |
310(mm) |
Main Technical Specification | ||
1 |
Rated load |
2000(Kg) |
2 |
Operating weight |
5800KG |
3 |
Rated bucket capacity |
1.2(CBM) |
4 |
Bucket type |
Heavy-duty bolt teeth |
5 |
Max. breakout force |
51kN |
6 |
Max. dump clearance |
2950(mm) |
7 |
Min. turning radius |
5251mm |
8 |
Driving system |
Hydraulic converter |
9 |
Traveling speed(Km/h) |
2 forward and 2 reverse |
Diesel engine | ||
1 |
Model |
YTO 4108/WeiChai 4105 |
2 |
Type |
In-line arrangement. Water cooling |
3 |
Rated output |
60(kW)/58KW |
4 |
Inter-bore of cylinder/stroke |
105×125mm |
5 |
Rated speed |
2400(r/min) |
6 |
Max. Torque |
275(N.M) |
7 |
Starting type |
Electric |
8 |
Min. specific fuel consumption |
235(g/Kw.h) |
Transmission System | ||
(A)Torque Converter | ||
1 |
Model |
YJ280 |
2 |
Type |
Fixed-spindle power shift |
3 |
Cooling type |
Pressure oil circulating |
(B)Transmission case | ||
1 |
Model |
MAP |
2 |
Type |
Power shift, spur gear constantly in mesh |
3 |
Gear shift position |
2 Forward and 2 reverse gears |
(C)Axle and Tire | ||
1 |
Type of main reducer |
spiral bevel gear, single stage |
2 |
Size of tire |
20.5/70-16,16.70-20 for optional |
Brake system | ||
1 |
Service brake |
Air assisted oil on four wheel |
2 |
Parking brake |
Hand operated |
Steering System | ||
1 |
Type |
Middle articulated frame with hydraulic power steering |
