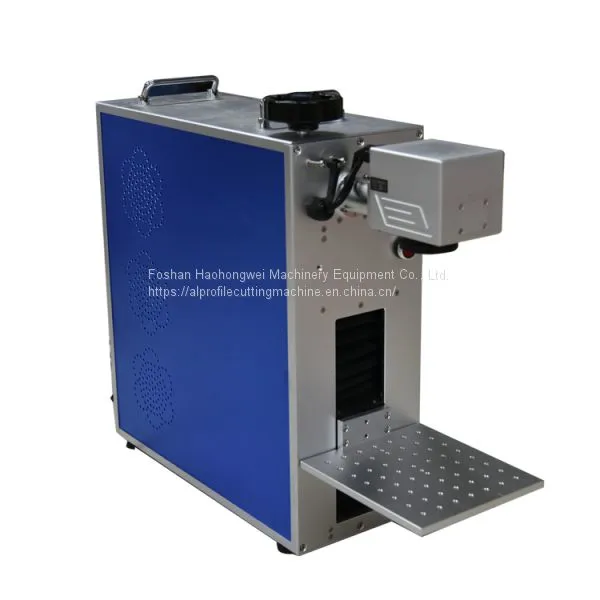

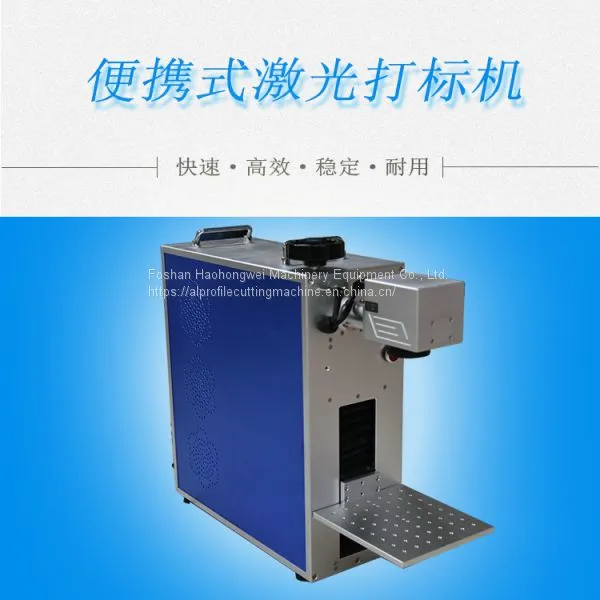

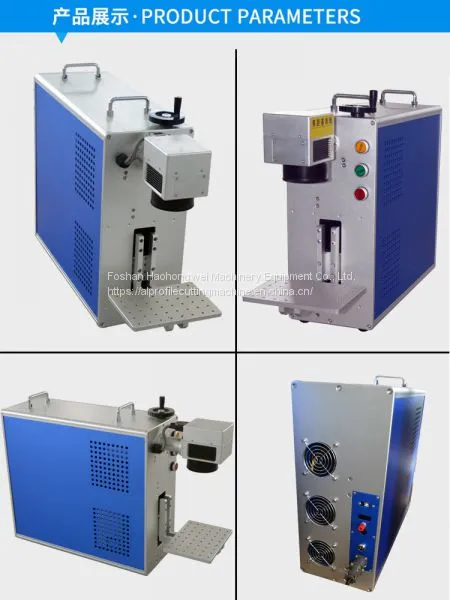

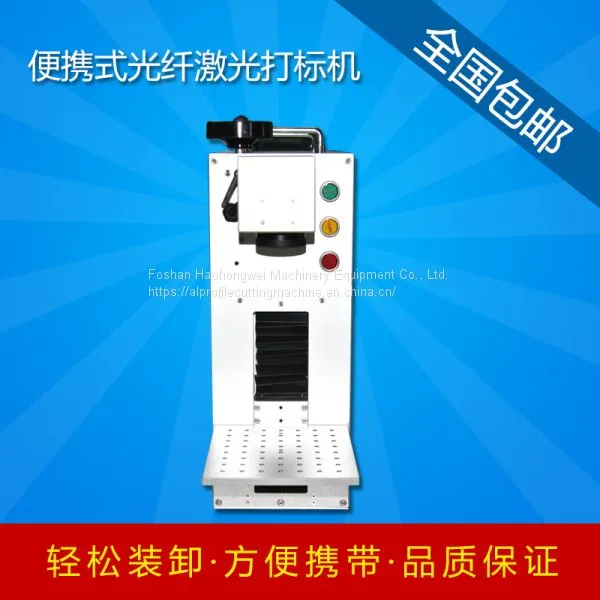

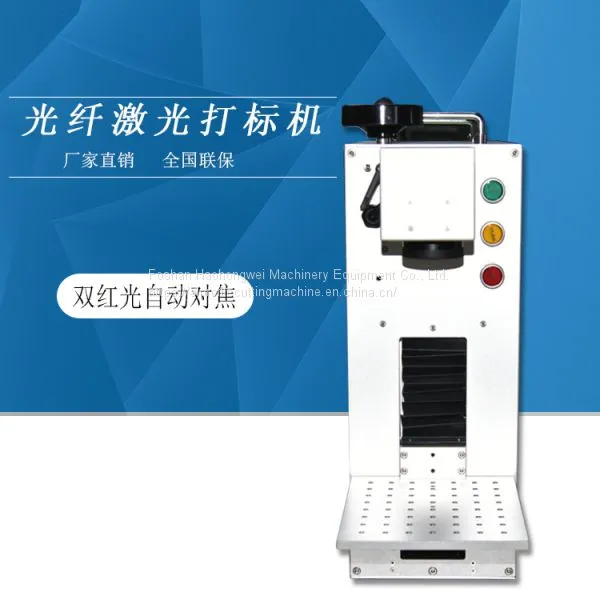

Help CenterLogo Metal Laser Printing Machine Portable Fiber Laser Marking Machine
Related Products
-
Maxphotonics Raycus IPG Portable Fiber Laser Marking Machine for Metal PlasticUS$ 5000 - 22000MOQ: 1 Set -
RaPt 20W Portable Fiber Laser Marking Machine For Jewelry MetalUS$ 5000 - 22000MOQ: 1 Set
-
Split Type 20w 30w 50w Fiber Metal Laser Marking Machine / Metal Engraving MachineUS$ 5000 - 10200MOQ: 1 Set
-
Steel Aluminum Metal Plastic Split Model Portable 20w Fiber Laser Marking MachineUS$ 5000 - 10200MOQ: 1 Set
-
Fiber Laser Type Air Cooling Split Fiber Laser Marking Enclosed Machine 20w / 30w / 50wUS$ 5000 - 10200MOQ: 1 Set
Parameter：
|
power: |
10-50W | 20W | Raycus |
| Galvanometer: | High performance scanning galvanometer | ||
| weight: | 27KG | ||
| Control interface: | USB | 30W | |
| Laser wavelength: | 1064nm | ||
| repeat frequency: | 20-80KHz | ||
| Marking line depth: | ≤0.2mm | 50W | |
| Machine power consumption: | ≤800W | ||
| Repeatability: | ±0.001mm | ||
| physical dimension: | 400*340*200 | 20W | IPG |
| cooling method: |
High precision constant temperature / closed loop air cooling |
||
| electricity demand: | 220V±22V / 50Hz / 12A | ||
| Marking height: | 200mm | 30W | |
| Power adjustment range: | 0-100% | ||
| Minimum focus spot: | 0.005mm | ||
| Minimum character height: | 0.15mm | ||
| Output beam quality: | M2＜2 | 50W | |
| Laser module life: | ＞100000小时 | ||
| Standard engraving range: | 110mm×110mm(customizable) | ||
| Maximum linear marking speed: | 12000mm/s |
Features：
Life
Fiber laser uselife is about 100000 hours.
Maintenance Free
Fiber laser is virtually Maintenance Free compared to other conventional laser, as it doesn’t have mirror to be aligned and almost no optical components, which could have been damaged.
Beam quality
The out put beam quality is exceptionally good with diffraction of m2
Cooling
Fiber laser system is air cooled rather water-cooled multi-channel diode bars.
Operating cost
It operates at very low electricity consumption and it normally cooled by just air-cooling, which leads to significantly lower operating cost.
Heat Dissipation
The total power generation and build in fiber laser occurs along a long length of fiber. Thus heat is dispersed over a large surface area unlike DPSSL where heat is normally localized, leading to failure.
Beam Delivery
The biggest benefit of fiber laser is that the Gain Medium is fiber & delivery is also through the fiber. This leads to less chances of failure at coupling point between gain medium and delivery when extended to the workplace.
Efficiency
The efficiency of fiber laser is up to 20%.
