Structure: Single-End/Double-End
Cartridge or Not: Not Cartridge
Pressure: High Pressure
Speed: High Speed Mechanical Seal
Temperature: Medium and Low Temperature
Performance: Wear
Standard: Specifically Customized
Model NO.: 08J-08D
Balance: Balanced
Specification: Inner Diameter: 15 mm to 80 mm

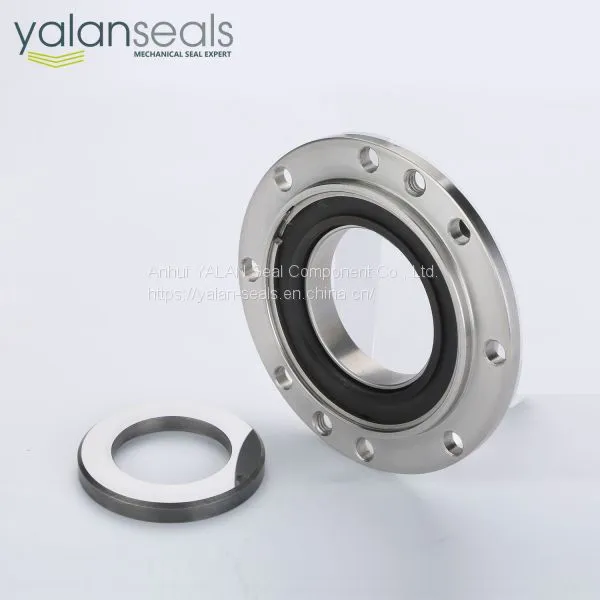

YALAN 08J-08D Mechanical Seal for Roots Blowers, High Speed Pumps and Gearboxes
Structural Features: single end, multi springs, balanced, independent rotary direction, still structure. The compensation components are pre-assembled with a compact and short structure. The load on the seal faces are balanced. The seal component is easy to install with a great balance so it works with high speed operational conditions.
Industrial Standards: Specifically Customized
Scopes of Application: widely used in Roots blowers, high speed pumps, gearboxes and other rotary devices with limited axial dimensions.
Operation Parameters:Pressure: 0 ~ 3.0 MPa or less
Temperature: - 20 ~ 180 ºC
Linear Speed: 100 m/s or less
Rotary Ring Face: 9Cr18/TC/SiC
Stationary Ring Face: Carbon/SiC
Elastomers: Viton/EPDM/FFKM/PTFE
Springs: SS304/SS316/HC-276
Metal Parts: 410S/SS304/SS316L/HC-276
Mediums: oil and other chemical mediums.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
