Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Wear
Standard: DIN24960, ISO3069, GB6556
Model NO.: M3, M37G
Balance: Unbalanced
Specification: Inner Diameter: 8 mm to 100 mm

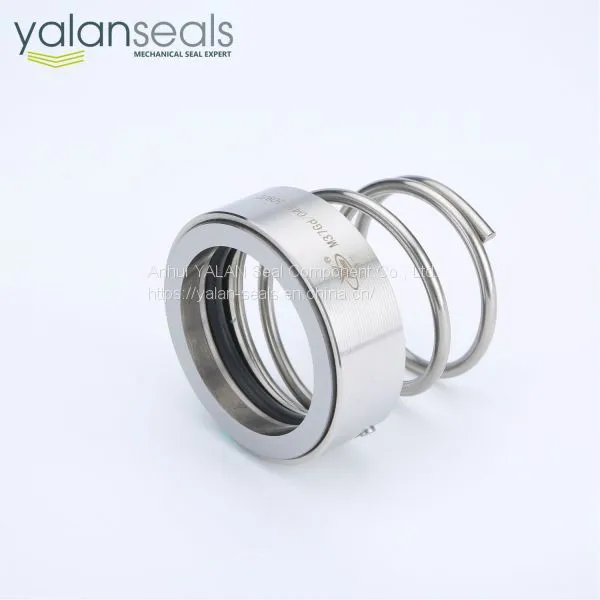

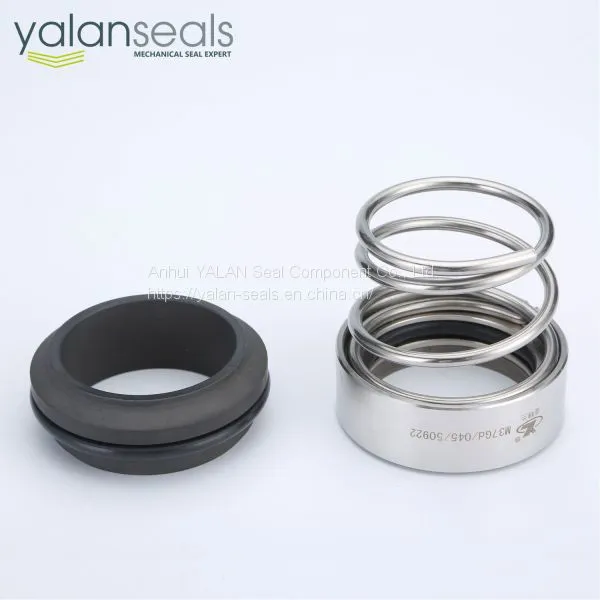

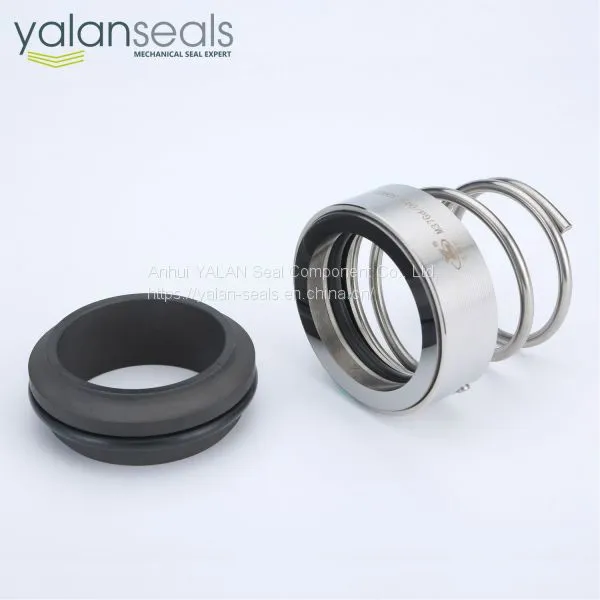

YL M3 (M37G) Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps
Structural Features: single end, unbalanced, conical spring, fixed direction of rotation, spring transmission. This seal component has a simple structure, high compatibility and stable performance with great spring compensation.
Industrial Standards: DIN24960, ISO3069, GB6556
Scopes of Application: widely used in chemical centrifugal pumps, clean water pumps, sewage pumps, temperature control pumps, submerged pumps, and heat-transfer oil pumps. Mainly used in oil refining, chemical engineering, chemical product transportation, water treatment and chemical fiber industry. This product can be an alternative to similar products from EG&G SEAL OL, Flexibox and Roten.
Operation Parameters:Pressure: 1.0 MPa or less
Temperature: - 20 ~ 180 ºC
Linear Speed: 10 m/s or less
Rotary Ring: Carbon/SiC/TC
Stationary Ring: Carbon/SiC/TC
Elastomers: NBR/Viton/EPDM/PTFE/FFKM
Springs: SS304/SS316
Metal Parts: 410S/SS304/SS316/SS316L
Mediums: oil, water, amorphism acid, alkali, salt, and organic solvents.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
