Structure: Single-End
Pressure: General Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear
Standard: DIN24960, ISO3069, ANSI B73.1M
Model NO.: ZHJ
Balance: Balanced
Specification: Inner Diameter: 35 mm to 170 mm

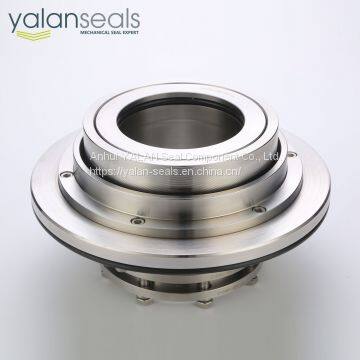

ZHJ Mechanical Seals for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps
Structural Features: single end, multiple springs, with spring protector, balanced, independent direction of rotation. The component is cartridge seal with easy installation. The compensation components are supporting the sleeve. The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component. Easy installation, no need to disassemble the seal cavity for the installation.
Industrial Standards: DIN24960, ISO3069, ANSI B73.1M
Scopes of Application: mainly used in paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants) and slurry pumps for industries such as coal washery, mining, sewage treatment, paper making, metallurgy, power plants, and chemical engineering. This seal works as an alternative to similar products of Warmann.
Operation Parameters:Pressure: 0 ~ 1.2 MPa or less
Temperature: - 20 ~ 130 ºC
Linear Speed: 10 m/s or less
Pressure of Cooling Water: 0.1 MPa or less
Solid Capacity: 30% or less
Rotary Ring Face: SiC/TC
Stationary Ring Face: SiC/TC
Elastomers: Viton/EPDM/Aflas
Springs: SS304/SS316/HC276
Metal Parts: 410S/SS304/SS316/SS316L/2507/2205
Mediums: paper pulp, coal cinder, slag, ash and other fluids with solid powder.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
