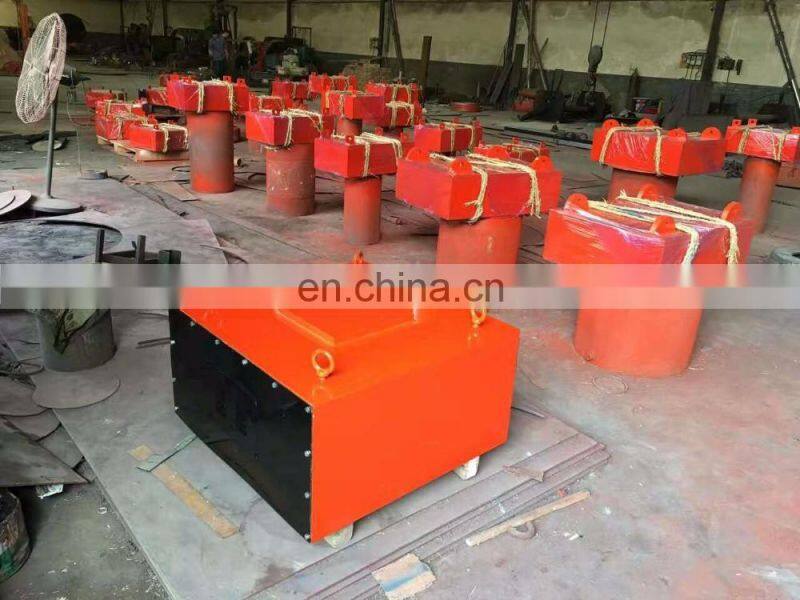

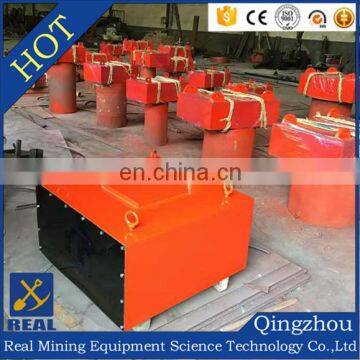

Suspension type Permanent Magnet Iron Remover
Product Description:
RCYB series is suspended over conveyor belt.It is suitable for continuous-duty occasions and remove 0.1-30kg of ferromagnetic material which mixed in the raw material. This equipment has a high magnetic field intensity,no energy consumption and a long service life. It is easy to install and use without maintenance. This equipment is widely used for the iron removal from non-magnetic materials on belt conveyors, vibrating conveyors, vibrating feeders, chutes, etc.
Features:
-- NdFeB magnets for magnetic source of reliable magnetic properties
-- In the depths of non-magnetic materials can absorb up 0.1-0.30kg iron
-- Core guaranteed 10 years under normal circumstances; Neverless than 5% demagnetization
-- Artificial regularly dumping iron, and is of small size, light weight, easy installation features

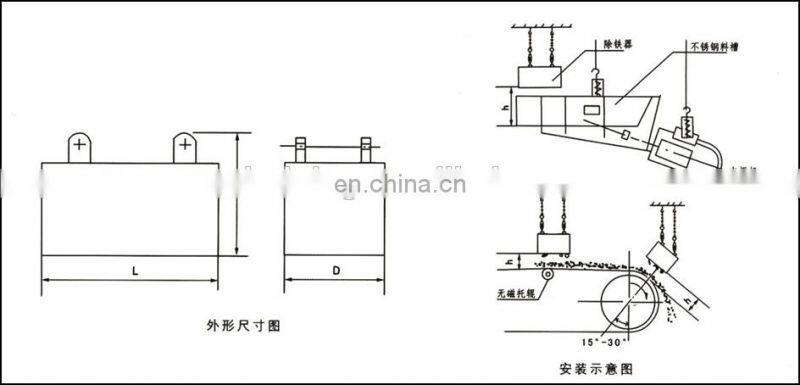

Overall dimension drawing:
Specifications:
| Models | Belt Width(mm) | Rated Lifting Height(<mm) | Material Thickness(<mm) | Belt Speed(<m/s) | Weight(kg) | Appearance Size(L*D*Hmm) | |||
| RCYB-4 | 400 | 125 | 60 | 2.5 | 115 | 400 | 300 | 230 | |
| RCYB-4-1 | 400 | 75 | 30 | 65 | 400 | 250 | 140 | ||
| RCYB-5 | 500 | 150 | 90 | 206 | 500 | 350 | 260 | ||
| RCYB-5-1 | 500 | 100 | 50 | 96 | 500 | 260 | 160 | ||
| RCYB-6 | 600 | 175 | 120 | 295 | 600 | 450 | 280 | ||
| RCYB-6-1 | 600 | 130 | 60 | 158 | 600 | 350 | 180 | ||
| RCYB-6.5 | 650 | 200 | 150 | 450 | 650 | 600 | 300 | ||
| RCYB-6.5-1 | 650 | 200 | 150 | 450 | 650 | 400 | 300 | ||
| RCYB-8 | 800 | 250 | 200 | 680 | 950 | 950 | 380 | ||
| RCYB-8-1 | 800 | 200 | 150 | 550 | 800 | 600 | 300 | ||
| RCYB-10 | 1000 | 300 | 250 | 1180 | 1100 | 1000 | 380 | ||
| RCYB-12 | 1200 | 350 | 300 | 1670 | 1300 | 1340 | 420 | ||
| RCYB-14 | 1400 | 400 | 350 | 2350 | 1500 | 1500 | 420 | ||
| RCYB-16 | 1600 | 450 | 400 | 2850 | 1750 | 1750 | 460 | ||
