Help CenterAir O Union Or Air Grip Union Manufacturer
US$ 1 - 250
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
HUAYU
Place of Origin:
Hebei, China
Model Number:
union
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacture Hammer Seal Union/drilling Mud TanksUS$ 10 - 166MOQ: 10 Meters -
Pipe Fittings Sanitary Stainless Steel Hammer Union SupplierUS$ 5 - 100MOQ: 50 Pieces
-
API Spec 6A Fig 100,200, 600,1002,1502,2002 Threaded Hammer Union/ Pipe Fittings/oilfield ToolsUS$ 5 - 100MOQ: 50 Pieces
-
High Quality and High Pressure Api FMC WECO Hammer UnionUS$ 5 - 100MOQ: 50 Pieces
-
API Standard Male/female Weco Figure 100 200 206 207 400 1002 1003 1502 Hummer UnionUS$ 5 - 100MOQ: 50 Pieces
Brand Name
HUAYU
Place of Origin
Hebei, China
Model Number
union
Material
Carbon Steel
Type
Union
Shape
Equal
Technics
Forged
Connection
Welding
Head Code
Square

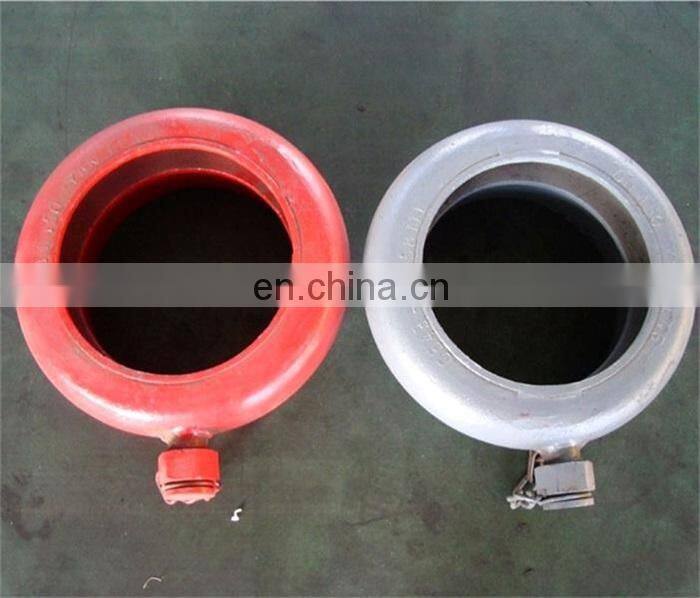

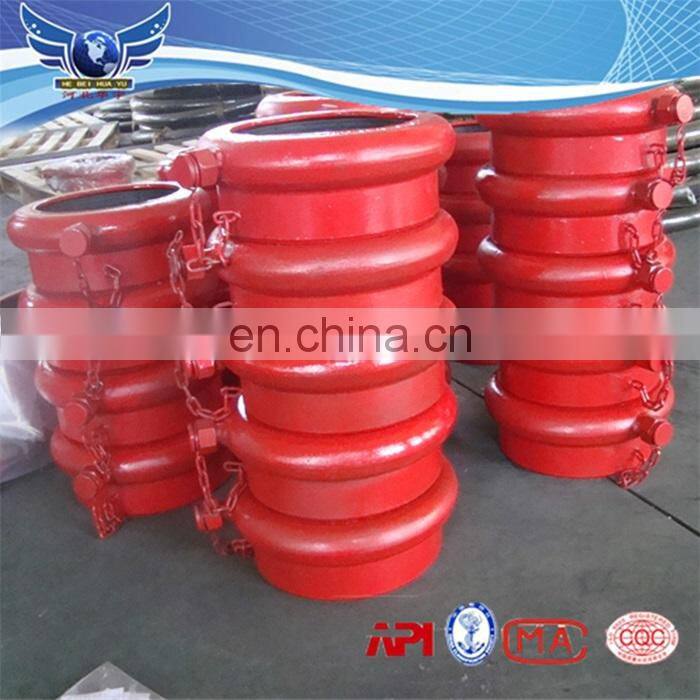

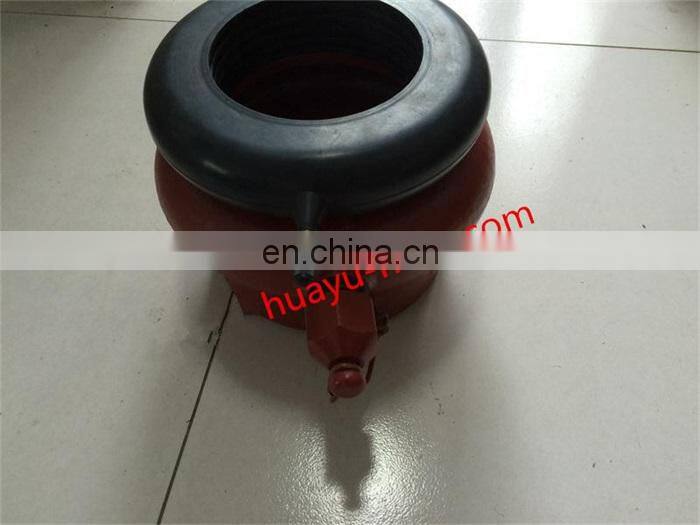

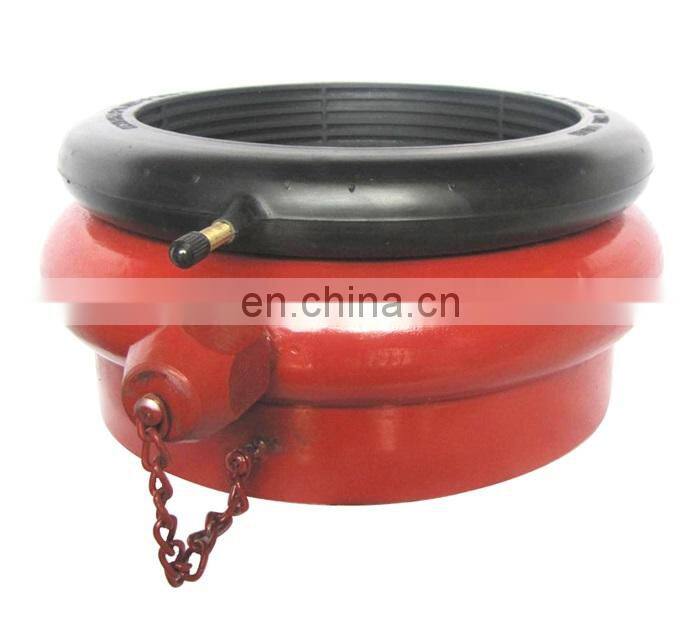

In the Air Grip unions(Air-O-unions) we have patents:
1. Medium available: mud, oil, water
2. Medium temperature: -45°C ~50°C
3. Reconversion time when deflated: 1-3 seconds.
4. Medium presssure: 0.4Mpa

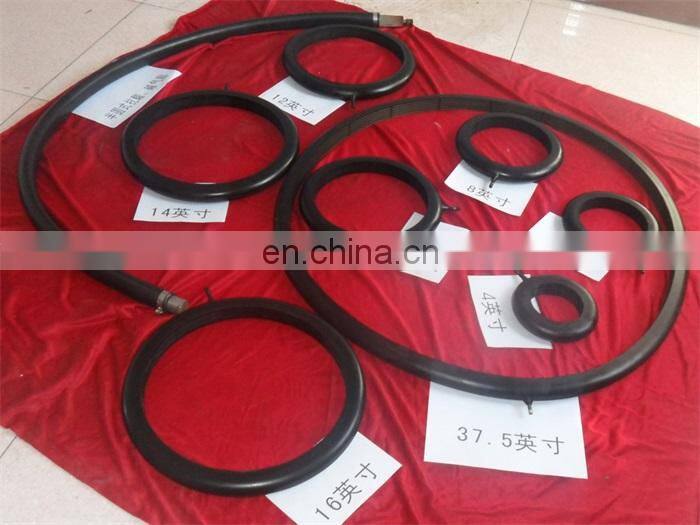

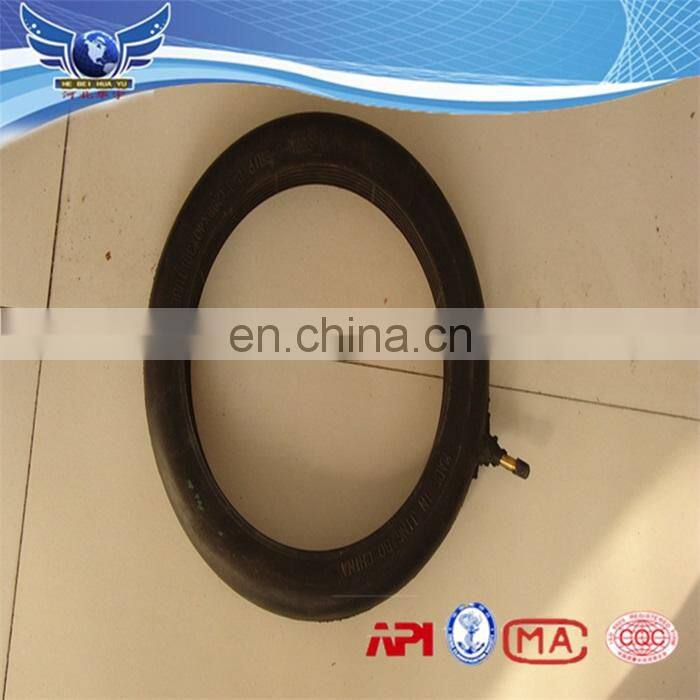

5. Structure: steel shell and air bag
6. Material: shell for 20# casting steel, tyre for rubber.
Normal Pipe |
4" |
6" |
8" |
10" |
12" |
14" |
16" |

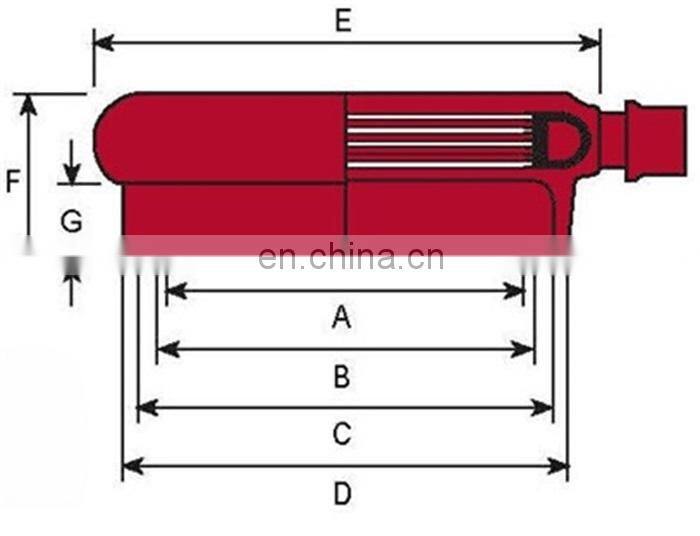

Tube I.D.(mm)A |
114 |
171 |
222 |
278 |
329 |
384 |
413 |
Body I.D.(mm)B |
117 |
176 |
227 |
283 |
333 |
388 |
416 |
Butt-weld I.D.(mm)C |
129 |
203 |
257 |
308 |
340 |
409 |
441 |
Butt-weld I.D.(mm)D |
141 |
219 |
273 |
324 |
356 |
425 |
547 |
Body O.D.(mm)E |
168 |
260 |
311 |
368 |
419 |
476 |
503 |
Height(mm)F |
80 |
102 |
102 |
108 |
108 |
108 |
108 |
Wt.(kgs)-Air bag |
0.3 |
0.65 |
0.8 |
1.0 |
1.2 |
1.5 |
1.7 |
Wt.(kgs)-Assembly |
5.5 |
8.2 |
9.2 |
12 |
13.5 |
15 |
20 |
