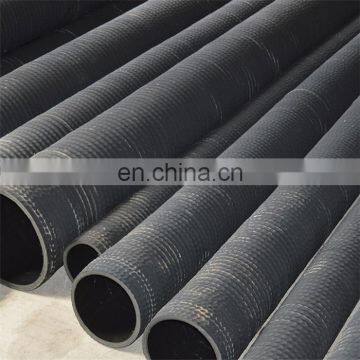

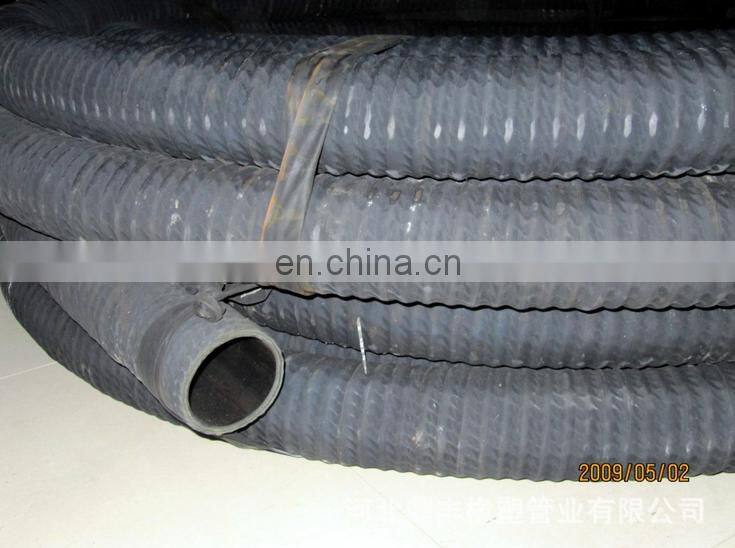

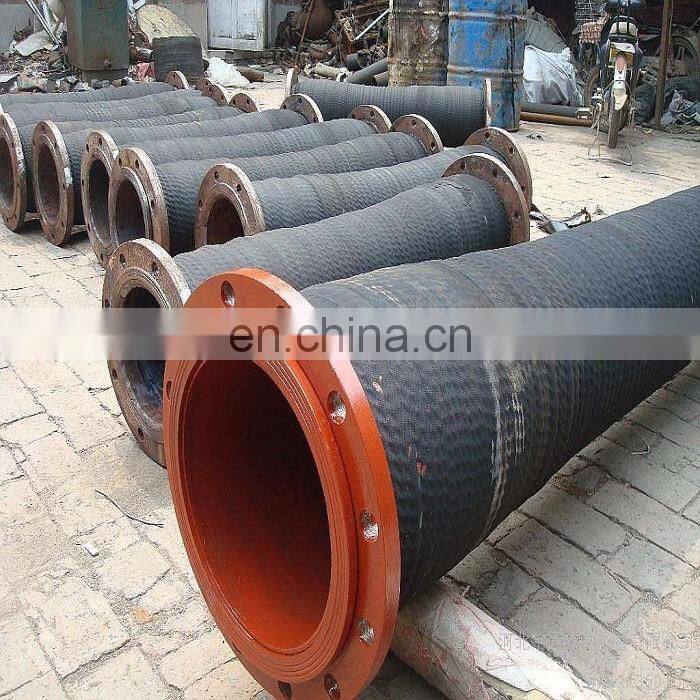

Suction rubber hose spiral water rubber hose
Construction
1. Material: EPDM/NBR synthetic rubber
2. Size: 32mm~356mm
3. Length: 6m~20m
4. Work Pressure: 3Bar
5. Certification: ISO 9001-2000
6. Reinforcement: with steel wire, and fabric inserted
7. Temperature: -30~+80’C
Application
The hose is suitable for conveying water for industrial use.(Mining, construction, factory drainage system.)
Features
It has solid structure and good bending performance. The hose has the double properties of bearing both the positive and negative pressure, can be used normally under the pressure 60-80Kpa, no deformation, no delamination, has good adaptability to different environment.
Technical Parameter
Inside Diameter (mm) |
Outside Diameter (mm) |
Working Pressure (bar) |
Layer |
Length |
||
Size |
Tolerance |
Size |
Tolerance |
|||
32 |
±1.2 |
40 |
±1.2 |
3 |
3 |
10m |
38 |
±1.2 |
46 |
±1.2 |
3 |
3 |
10m |
51 |
±1.2 |
59 |
±1.2 |
3 |
3 |
10m |
64 |
±1.5 |
72 |
±1.5 |
3 |
3 |
10m |
76 |
±1.5 |
84 |
±1.5 |
3 |
3 |
10m |
89 |
±1.5 |
97 |
±1.5 |
3 |
4 |
10m |
102 |
±1.5 |
110 |
±1.5 |
3 |
4 |
10m |
127 |
±2.0 |
137 |
±2.0 |
3 |
4 |
10m |
152 |
±2.0 |
162 |
±2.0 |
3 |
4 |
10m |
203 |
±2.5 |
213 |
±2.5 |
3 |
4 |
10m |
254 |
±2.5 |
265 |
±2.5 |
3 |
5 |
10m |
305 |
±2.5 |
320 |
±2.5 |
3 |
8 |
10m |
356 |
±2.5 |
372 |
±2.5 |
3 |
10 |
10m |
Packing details: woven bag packing or according to customer's requirment
Delivery detail: within 15 days after receive the deposit
Hebei Lianxing Rubber and Plastic Co., Ltd. is located in Hengde Industrial Park, at the junction of Shandong and Hebei. We currently employ 89 people, including 3 managers, 30 engineering technicians (including 3 senior engineers and 16 engineers). Our company covers an area of 51000m2, including 17000 m2 for work shops. Now we have a total assets of 60000000 yuan, including 40000000 yuan in fixed assets. We are an innovative company integrating research and development, production, technology innovation and sales.
We have more than 100 sets of safety production equipment including knitting machine, winding machine, flat vulcanizing machine, rubber and plastic pressure kneading machine, vulcameter without rotator, tensile testing machine, testing equipment, etc.
Main products manufactured by us:
1)Steel Wire Braid Hydraulic Hose Series:
SAE 100 R1AT/DIN EN 853 1SN, SAE 100 R2AT/ DIN EN 853 2SN;
SAE 100 R1A/ DINEN 853 1 ST, SAE100 R2A/ DIN EN 853 2ST
DIN-EN 857 1SC,DIN-EN 857 2SC;
SAE 100 R5, SAE100 R16, SAE 100 R17
2) Steel Wire Spiral Hydraulic Hose Series:
SAE 100R9, SAE 100R12, SAE 100R13, SAE 100R15,DIN EN856 4SP , DIN EN856 4SH
3) Textile Braid Hydraulic Hose: SAE 100 R3, SAE 100 R6
1. Are you a manufacturer or trading company?
We are a professional hydraulic hose fittings manufacturer with ten years' experience. We have done business with our customers well.
2. What is payment method?
For samples: T/T, western union.
For orders: T/T or L/C.
3. Do you offer free samples?
We can provide free samples and you should pay the freight. After you place an order, we will give back the freight.
4. Do you offer OEM service and can you product as our drawings?
Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings.
5. Do you accept our design on boxes?
Yes. We accept custom design on boxes.
6. What's your delivery time?
Generally, we will arrange shipment within 15 days after receiving the deposit. If urgent, we can also meet your requirement.
7. Is your price higher than other companies?
Since we have been a professional manufacturer for many years, we can control our quality and costs well. So our prices are very competitive. And we dedicate to establishing long-term and friendly relationships with all the customers.
8. How do you control the quality?
We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also guarantee the accuracy of packaging and send you shipping sample. Welcome to our factory to inspect.
