Flexible Fabric Braided Coiled Rubber Air Hose

Flexible Fabric Braided Coiled Rubber Air Hose thumbnail-1
Flexible Fabric Braided Coiled Rubber Air Hose thumbnail-2
Flexible Fabric Braided Coiled Rubber Air Hose thumbnail-3
Flexible Fabric Braided Coiled Rubber Air Hose photo-1
Flexible Fabric Braided Coiled Rubber Air Hose photo-2
Flexible Fabric Braided Coiled Rubber Air Hose photo-3
US$ 0.1 - 3 MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
shuangxu
Place of Origin:
Hebei, China
Model Number:
Air Hose
Contact Supplier Request Quote Chat Now
Fuel Composite Hose Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name shuangxu
Place of Origin Hebei, China
Model Number Air Hose
Product Description

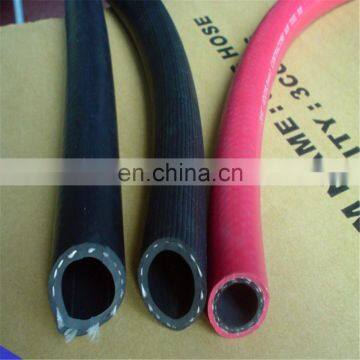

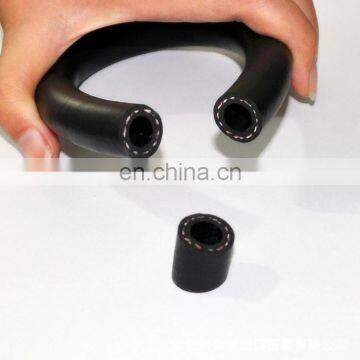

 flexible fabric braided coiled rubber air hose

Product features:

1. Reinforcement: one or two high tensile textile braid.

2. Working Temperature range: -30°C~+80°C or -20°F~+180°F.

3. Color available: black, grey, blue, yellow, red or as per customers' requests.

4. Process feature: refrigeration technique

5. Inner tube: oil resistant synthetic rubber NR/SBR.

6. Cover: environment resistant synthetic rubber

7. Advantage: high quality with competitive price (we are manufacturer/factory).

8. Main application: Air hose/Compressed air hose.

9.  Out diameter: ±0.5mm and can be made by orders.



Specification of NR/SBR flexible fabric braided coiled rubber air hose:



I.D PLY O.D MAX W.P. COVER LENGTH
mm inch mm bar psi clothed smooth M
6 1/4'' 2 13.0 20 290 √ √ 50
8 5/16'' 2 15.0 20 290 √ √ 50
10 3/8'' 2 17.0 20 290 √ √ 50
12 1/2'' 2 20.0 20 290 √ √ 50
16 5.8'' 2 24.8 12 174 √ √ 20/40
18 3/4'' 2 26.8 12 174 √ √ 20/40
20 3/4'' 2 26.8 12 174 √ √ 20/40
22 7/8'' 2 29.8 12 174 √ √ 20/40
25 1'' 2 34.0 12 174 √ √ 20/40
27 1 1/8'' 2 36.0 12 174 √   20/40
32 1 1/4'' 4 42.0 12 174 √   20/40
35 1 3/8'' 4 45.0 12 174 √   20/40
38 1 1/2'' 4 48.0 12 174 √   20/40
40 1 5/8'' 4 50.0 12 174 √   20/40
42 1 2/3'' 4 52.0 12 174 √   20/40
45 1 3/4'' 4 55.0 12 174 √   20/40
51 2'' 4 62.2 12 174 √   20/40
57 2 1/4'' 4 68.2 12 174 √   20/40
60 2 3/8'' 4 71.2 12 174 √   20/40
64 2 1/2'' 4 76.4 12 174 √   20/40
76 3'' 4 89.2 12 174 √   20/40
89 3 1/2'' 4 103.0 12 174 √   20/40
102 4'' 4 116.0 12 174 √   20/40



flexible fabric braided coiled rubber air hose



flexible fabric braided coiled rubber air hose



flexible fabric braided coiled rubber air hose







Packaging & Shipping



Packaging Details: woven bags or plastic films according to your requirements.
Delivery Detail: within 15 days at the latest





Company Information

 flexible fabric braided coiled rubber air hose



flexible fabric braided coiled rubber air hose



Hebei Lianxing Rubber and Plastic Co., Ltd. is located in Hengde Industrial Park, at the junction of Shandong and Hebei. We currently employ 89 people, including 3 managers, 30 engineering technicians (including 3 senior engineers and 16 engineers). Our company covers an area of 51000m2, including 17000 m2 for work shops. Now we have a total assets of 60000000 yuan, including 40000000 yuan in fixed assets. We are an innovative company integrating research and development, production, technology innovation and sales.

We have more than 100 sets of safety production equipment including knitting machine, winding machine, flat vulcanizing machine, rubber and plastic pressure kneading machine, vulcameter without rotator, tensile testing machine, testing equipment, etc.

The main products of our company are: high pressure wire braided hose, super high pressure wire spirally-wound hose, hydraulic hose, coal mine hydraulic support hose assembly, expansion hose (water injection hole sealing device), drilling hose, hose connectors, wear-resistant sand blast hose, cloth inserted hose, heat-resistant steam hose, rubber water hose, large diameter hose, metal hose and various kinds of hose assembly.





FAQ



Q: Can you produce customized goods ?

A: Yes, the size, diameter and length can be produced as per client's requirements.

Q: Can you print words on products as per client's requirement?

A: Yes, make label according to your exact requirement.

Q: Can you do business via Ali Online Transaction?

A: Yes, we can make the deal through AOT.

Q: What is your payment terms?

A: T/T, L/C at sight or Paypal.

Q: Do you accept OEM?

A: Yes, OEM or ODM are both OK.

Q: Where is your nearest loading port ?

A: Tianjin Xingang, China.

Q: How can you guarantee the quality or any warranty?

A: If any quality problems during use, all the products can be returned

    or according to consumer's requests.
