RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator

RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator thumbnail-1
RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator thumbnail-2
RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator thumbnail-3
RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator photo-1

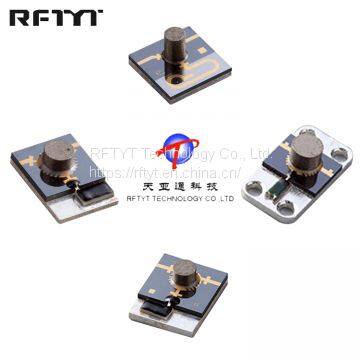

RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator photo-2
RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator photo-3
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
RFTYT
Place of Origin:
China
Model Number:
Microstrip Isolators
Contact Supplier Request Quote Chat Now
RFTYT Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RFTYT
Place of Origin China
Model Number Microstrip Isolators
RF TYT High Isolation Low Insertion Loss 8.5-10.5GHz Microstrip Isolator



Product Description

                               Microstrip is a device with microstrip line as transmission mode. It has the characteristics of small size, high frequency, good precision and good consistency. It   is suitable for micro-assembly and can be widely used in various millimeter wave radar and TR modules.



Our Products Features:

1.Good temperature behavior, High aseismatic capability.                               2.Low Insertion Loss, High power handling.

3.High quality, Low price, Fast delivery.                                                                  4.Custom design available upon request.

5.Meet ROHS standard.                                                                                              6.Guaranteed for one year standard

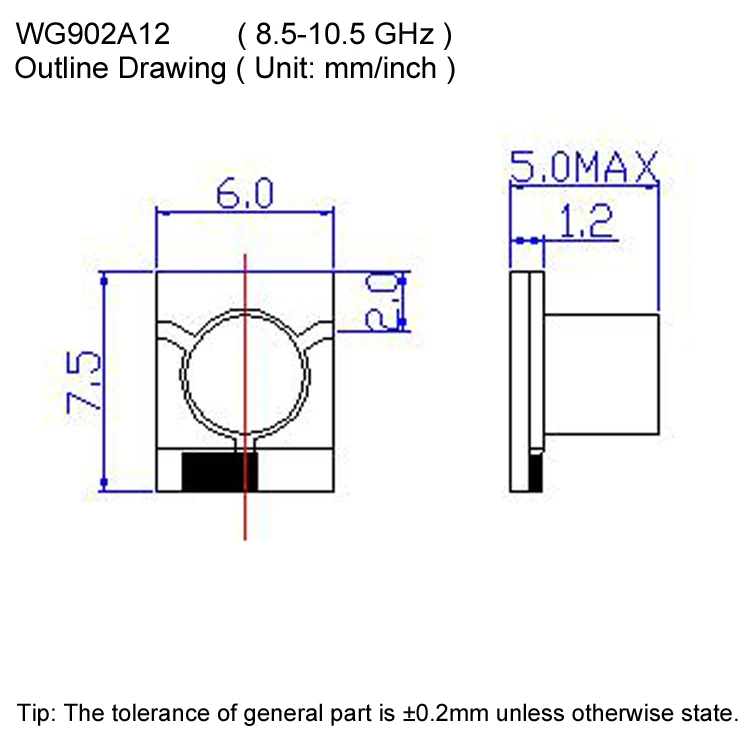

RF TYT High Isolation Microstrip Isolator

RF TYT High Isolation Microstrip Isolator





No

Part Number

C.F

B.W

Insertion Loss

ISOLATION

V.S.W.R

Power
[F/R]

Size[W*L*T]

[MHz

[MHz]

(dB)

(dB)

(W)

[mm]

01

IL07BL(R)0836AAE

836.5

25

0.65

15

1.5

10/2

7.0*7.0*2.0T

02

IL07BL(R)0881AAE

881.5

25

0.65

15

1.5

10/2

7.0*7.0*2.0T

03

IL07BL(R)0897AAE

897.5

35

0.65

13

1.5

10/2

7.0*7.0*2.0T

04

IL07BL(R)0902AAE

902.5

25

0.65

15

1.5

10/2

7.0*7.0*2.0T

05

IL07BL(R)0942AAE

942.5

35

0.65

13

1.5

10/2

7.0*7.0*2.0T

06

IL07BL(R)0947AAE

947.5

25

0.65

15

1.5

10/2

7.0*7.0*2.0T

07

IL07BL(R)1747AAE

1747

75

0.6

15

1.5

10/2

7.0*7.0*2.5T

08

IL07BL(R)1765AAE

1765

30

0.6

15

1.5

10/2

7.0*7.0*2.5T

09

IL07BL(R)1842AAE

1842

75

0.6

15

1.5

10/2

7.0*7.0*2.5T

10

IL07BL(R)1855AAE

1855

30

0.6

15

1.5

10/2

7.0*7.0*2.5T

11

IL07BL(R)1880AAE

1880

60

0.6

15

1.5

10/2

7.0*7.0*2.5T

12

IL07BR1950AAE

1950

60

0.6

15

1.5

10/2

7.0*7.0*2.5T

13

IL07BL(R)1960AAE

1960

60

0.6

15

1.5

10/2

7.0*7.0*2.5T

14

IL07BL(R)2140AAE

2140

60

0.6

15

1.5

10/2

7.0*7.0*2.5T





Forms are specify frequency range and other ranges available

(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)

Tip:These informations are needed for your enquiry.
*1.The frequency range that you need.                 *2.Power capacity (Forward ,Reverse,Peak,etc.).                          *3.Joint form
 4.Your special requirements (Insertion loss.Isolation.VSWR.Temperature.Dimension.etc.)


Low Insertion Loss Microstrip IsolatorLow Insertion Loss Microstrip Isolator
Packaging & Shipping

FAQ

Q1. How many years have you engaged in this business?

A1: Our company have engaged in this business more than 20 years, and we  professional in microwave passive devices (radio frequency isolators, circulators, RF resistors, attenuators, coaxial loads and attenuators) and microwave passive components research, production, sales and services.



Q2. What’s your payment terms?

A2: Our payment term is T/T , L/C.



Q3. What is your MOQ (minimum order quantity) ?

A3: 1 piece.



Q4. How do you ensure the quality of products?

A4: Each products we made are based on international standards.Meanwhile,  every product is strictly checked  before loading.



Q5. What price you can offer?

A5: EXW, FOB, CFR/ CIF, etc.



Q6.What’s your delivery time ?

A6: Production finished within 1-30 days after receiving the deposit.



Q7. Can you do OEM for us ?

A7: Yes,we can do OEM according the customer quality standard and packing .



Contact infomation

 8.5-10.5GHz Microstrip Isolator


Product Tags: RF TYT High Isolation Microstrip Isolator , Low Insertion Loss Microstrip Isolator , 8.5-10.5GHz Microstrip Isolator
