RFTYT SHF WG1220 Small Size Performance Stability Drop in Isolator
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
10MHz-26.5GHz Power(Max) 2000W Drop in Isolator
| Model | Frequency range | Power (max) | Reflected power | Size |
Connector Type |
|---|---|---|---|---|---|
| WG6466E | 30 - 230MHz | 150W | 10-150W | 64.0*66.0*22.0 mm | TAB |
| WG6060E | 30-230MHz | 100W | 10-100W | 60.0*60.0*25.5 mm | TAB |
| WG7070X | 130-200MHz | 500W | 10-250W | 70.0*70.0*15.0 mm | TAB |
| WG5050X | 160-330MHz | 500W | 10-100W | 50.8*50.8*15.0 mm | TAB |
| WG4545X | 300-1100MHz | 500W | 10-100W | 45.0*45.0*13.0 mm | TAB |
| WG3546X | 300-1850MHz | 300W | 100W|30,20dB | 35.0*46.0*11.0 mm | TAB |
| WG3538X | 300-1850MHz | 300W | 10-100W | 35.0*38.0*11.0 mm | TAB |
| WG2532X | 350-3600MHz | 250W | 100W|30,20dB | 25.4*31.7*10.0 mm | TAB |
| WG2525X | 350-4000MHz | 250W | 10-100W | 25.4*25.4*10.0 mm | TAB |
| WG2027X | 600-3600MHz | 150W | 100W|30,20dB | 20.0*27.5*8.6 mm | TAB |
| WG2020X | 600-4000MHz | 150W | 20W | 20.0*20.0*8.6 mm | TAB |
| WG1925X | 800-3600MHz | 100W | 100W|30,20dB | 19.0*25.4*8.6 mm | TAB |
| WG1919X | 800-4000MHz | 60W | 20W | 19.0*19.0*8.6 mm | TAB |
| WG6466E | 950-2000MHz(full) | 100W | 10-100W | 64.0*66.0*26.0 mm | TAB |
| WG1313T | 1800-6000MHz | 60W | 10W | 12.7*12.7*7.2 mm | TAB(Through hole) |
| WG1313M | 1800-6000MHz | 60W | 10W | 12.7*12.7*7.2 mm | TAB(Screw hole) |
| WG3234A | 2.0-4.0 GHz(full) | 100W | 20W | 32.0*34.0*21.0 mm | SMA/N/TAB |
| WG1626D | 3.7 -5.0 GHz | 60W | 5W | 16.0*26.0*10.5 mm | TAB |
| WG1623D | 5.0 - 7.0 GHz | 100W | 5W | 16.0*23.0*9.7 mm | TAB |

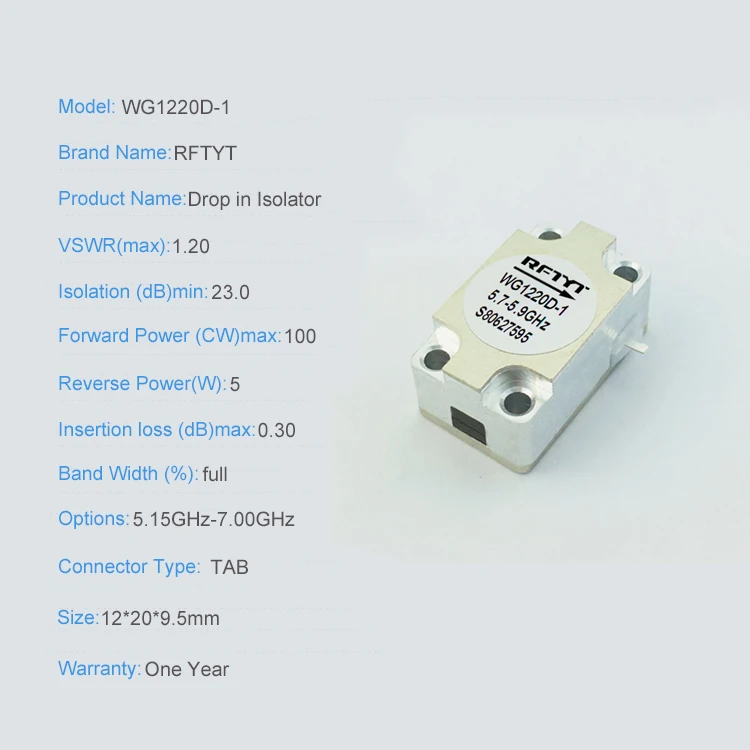

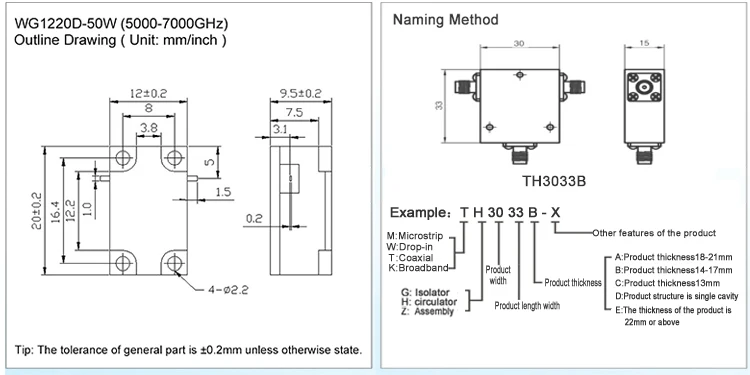

| WG1220D | 5.0 - 7.0 GHz | 50W | 5W | 12.0*20.0*9.5 mm | TAB |
| WG0915D | 7.0 - 18.0GHz | 30W | 5W | 8.9*15.0*7.8 mm | TAB |
For more detail specifications, please contact us or go to the official website. (WWW.RFTYT.COM)
Forms are specify frequency range and other ranges available
(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)
