Home > Electrical & Electronics > Antenna > Communication Antenna > RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator

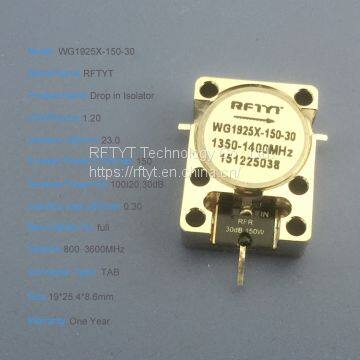

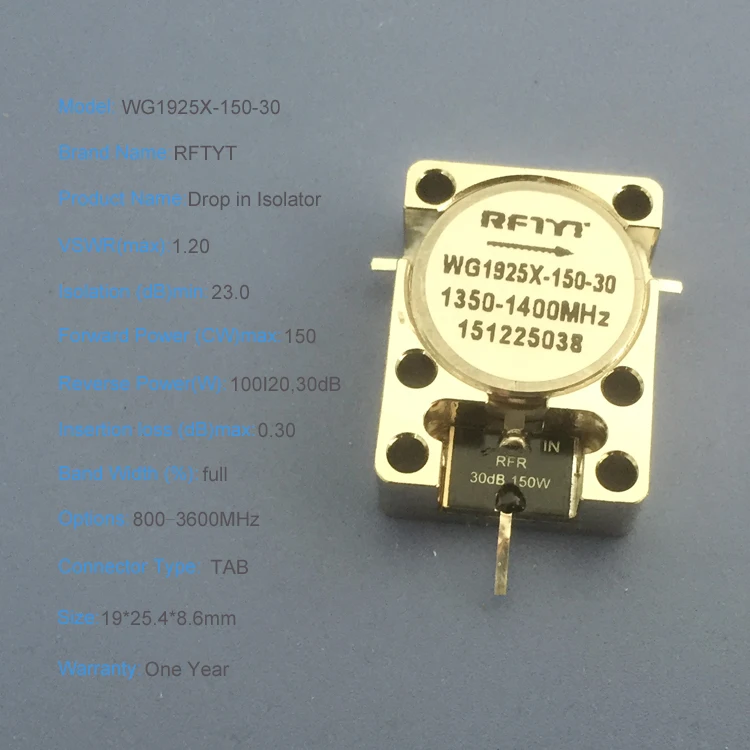

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator

Name: RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator
Brand: RFTYT
SKU: 159601529
Availability: InStock

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator thumbnail-1

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator thumbnail-2

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator thumbnail-3

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator photo-1

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator photo-2

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator photo-3

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

RFTYT

Place of Origin:

China

Model Number:

WG1925X

Contact Supplier Request Quote Chat Now

RFTYT Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Brand Name RFTYT

Place of Origin China

Model Number WG1925X

RFTYT WG1925 0.8-3.6 GHz L LS S Band RF Drop In Isolators Circulator

Product Description

Our Products Features:

1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.

3.High quality, Low price, Fast delivery. 4.Custom design available upon request.

5.Meet ROHS standard. 6.Guaranteed for one year standard

10MHz-26.5GHz Power(Max) 2000W Drop in Isolator

Model	Frequency range	Power (max)	Reflected power	Size (mm)	Connector Type
WG6466E	30 - 230MHz	150W	10-150W	64.066.022.0	TAB
WG6060E	30-230MHz	100W	10-100W	60.060.025.5	TAB
WG7070X	130-200MHz	500W	10-250W	70.070.015.0	TAB
WG5050X	160-330MHz	500W	10-100W	50.850.815.0	TAB
WG4545X	300-1100MHz	500W	10-100W	45.045.013.0	TAB
WG3546X	300-1850MHz	300W	100W\|30,20dB	35.046.011.0	TAB
WG3538X	300-1850MHz	300W	10-100W	35.038.011.0	TAB
WG2532X	350-3600MHz	250W	100W\|30,20dB	25.431.710.0	TAB
WG2525X	350-4000MHz	250W	10-100W	25.425.410.0	TAB
WG2027X	600-3600MHz	150W	100W\|30,20dB	20.027.58.6	TAB
WG2020X	600-4000MHz	150W	20W	20.020.08.6	TAB

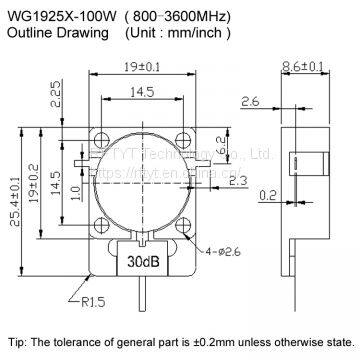

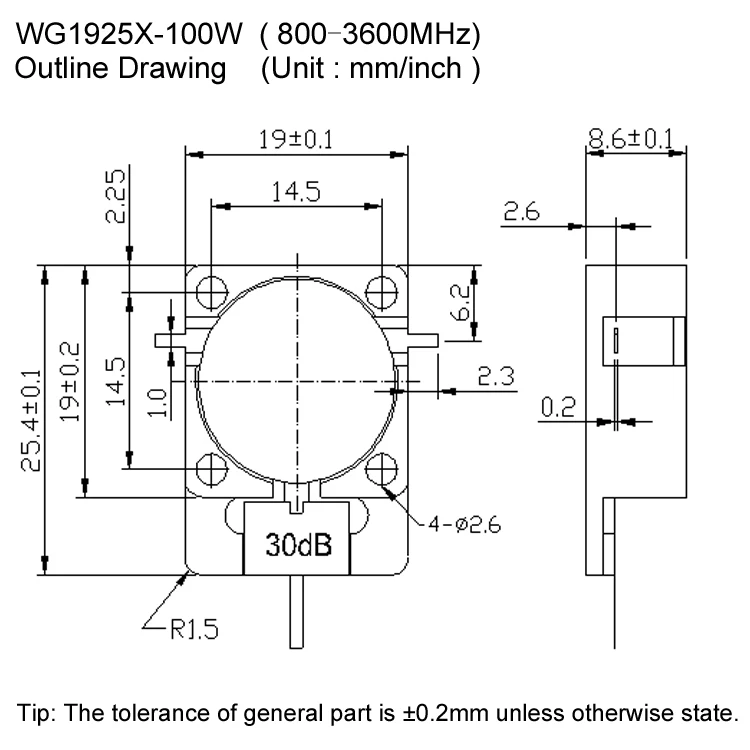

WG1925X	800-3600MHz	100W	100W\|30,20dB	19.025.48.6	TAB
WG1919X	800-4000MHz	60W	20W	19.019.08.6	TAB
WG6466E	950-2000MHz(full)	100W	10-100W	64.066.026.0	TAB
WG1313T	1800-6000MHz	60W	10W	12.712.77.2	TAB(Through hole)
WG1313M	1800-6000MHz	60W	10W	12.712.77.2	TAB(Screw hole)
WG3234A	2.0-4.0 GHz(full)	100W	20W	32.034.021.0	SMA/N/TAB
WG1626D	3.7 -5.0 GHz	60W	5W	16.026.010.5	TAB
WG1623D	5.0 - 7.0 GHz	100W	5W	16.023.09.7	TAB
WG1220D	5.0 - 7.0 GHz	50W	5W	12.020.09.5	TAB
WG0915D	7.0 - 18.0GHz	30W	5W	8.915.07.8	TAB

For more detail specifications, please cgo to the official website.

(WWW.RFTYT.COM)

Forms are specify frequency range and other ranges available

(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)

Tip:These informations are needed for your enquiry.

*1.The frequency range that you need. *2.Power capacity (Forward ,Reverse,Peak,etc.). *3.Joint form

4.Your special requirements (Insertion loss.Isolation.VSWR.Temperature.Dimension.etc.)

Packaging & Shipping

FAQ

Q1. How many years have you engaged in this business?

A1: Our company have engaged in this business more than 20 years, and we professional in microwave passive devices (radio frequency isolators, circulators, RF resistors, attenuators, coaxial loads and attenuators) and microwave passive components research, production, sales and services.

Q2. What’s your payment terms?

A2: Our payment term is T/T , L/C.

Q3. What is your MOQ (minimum order quantity) ?

A3: 1 piece.

Q4. How do you ensure the quality of products?

A4: Each products we made are based on international standards.Meanwhile, every product is strictly checked before loading.

Q5. What price you can offer?

A5: EXW, FOB, CFR/ CIF, etc.

Q6.What’s your delivery time ?

A6: Production finished within 1-30 days after receiving the deposit.

Q7. Can you do OEM for us ?

A7: Yes,we can do OEM according the customer quality standard and packing .

Contact infomation

Product Tags: RFTYT WG1925 RF Drop In Isolators Circulator , 0.8-3.6 GHz RF Drop In Isolators Circulator , L LS S Band RF Drop In Isolators Circulator
