Hot Sell Insulating Glass Production Line Automatic Double Glass Making Machine
US$ 26500 - 35000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YBKE
Place of Origin:
China
Model Number:
YB-LINE-2000
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulating Glass Production Line Hot Roller Pressing MachineUS$ 34100 - 45000MOQ: 1 Set -
Double Glazing Equipments Gas Filling Machine Insulating Glass Production LineUS$ 76000 - 86000MOQ: 1 Set
-
Horizontal IG Line Insulating Glass Double Glazing Hollow Glass Machine LineUS$ 30000 - 45000MOQ: 1 Set
-
Height Vertical Double Glazing Making MachineUS$ 26500 - 35000MOQ: 1 Set
-
Float Coated Glass Processing Machine Insulatng Glass Production LineUS$ 34100 - 45000MOQ: 1 Set
Brand Name
YBKE
Place of Origin
China
Model Number
YB-LINE-2000
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
A year
Weight
5000kg
Dimension(L*W*H)
22000x1560x3380mm
Production Capacity
600-800pic/days
Condition
New
Voltage
380v
Power(W)
20.6kw
Machine Type
Insulating Glass Production Line

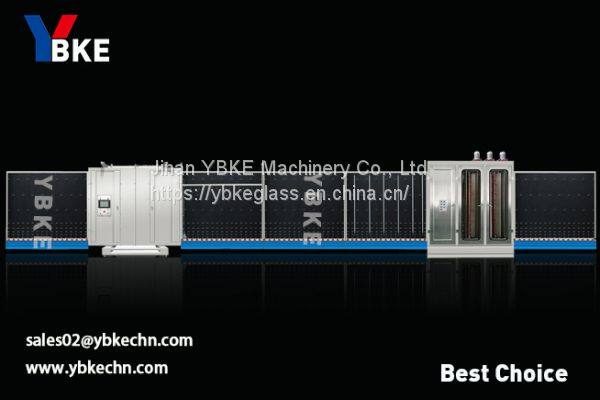

For Automatic IG Flat press Production line, It is automatic style. It includes Glass Transporter Part, Glass washing and drying part, Glass inspecting part, Aluminum frame installment part, Flat press panel part and Tilting part.
Based on product Insulating glass size, we have differnt kinds.
And also we have another roller press production line. It is one kind of Semiautomatic style.
| Max. Glass size | 2000x3300mm |
| Min. Glass size | 300x500mm |
| Max. Insulating Glass thick | 45mm |
| Max.washing glass thick | 3-12mm |
| Max. in Accelerating | 48m/min |
| Brush | 6Pieces |
| Power | 380v.50Hz |
| Power rate | 20.6kw |
| SIze of line | 22000x1560x3380mm |
| Weight | 3800kg |
