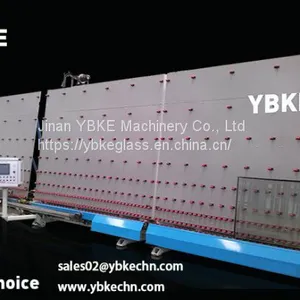

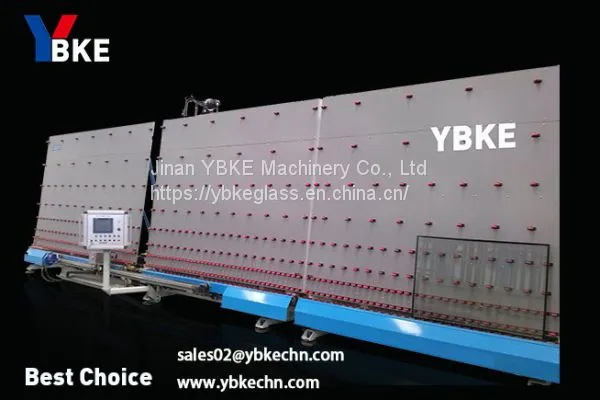

Help CenterInsulating Glass Machinery Two Component Coating Machine IG Machinery
Related Products
-
Hot Sells Automatic Glue Sealant Sealing Machine for Insulating GlassUS$ 39400 - 43000MOQ: 1 Set -
Insulated Glass Manual Hot Melt Extruder Coating Machine With CE CertificationUS$ 6000 - 7000MOQ: 1 Set
-
Two Component Sealant Coating Machine Two Component Sealant Spreading MachineUS$ 3500 - 4500MOQ: 1 Set
-
Insulated Glass Making Machine Butyl Sealant Coating MachineUS$ 6000 - 7500MOQ: 1 Set
-
03 Horizontal Insulating Glass Double Glass Butyl Extruder MachineUS$ 2900 - 3200MOQ: 1 Set
The machine is suitable for glass deep processing enterprise ,high automation ,
Reduce labor intensity, save manpower, improve production efficiency .
Whole machine adopt man-machine touch screen interface, the operation
is convenient and easy.
After coating sealant ,the glass edge and corner is full without air bubbles ,
smooth surface, no need to pare the corner.
Using two sets of independent sealant supply system ( including the mixing
device ), two kinds of sealants switch fast ,in one-button operation easily.
(optional) .
The third section can pre-store glass to improve the efficiency effectively.
Servo control system adopts world famous brand, the performance is stable.
Synchronous belt transmission to make the glass being transferred smoothly
with accurate positioning.
Special V type transmission belt to avoid the sealant sticking on the belt,
ensure the glass edge clean.
| Max.Glass.Size | 2500*3300mm |
| Min. Glass. size | 400*400mm |
| IG Thicknesses | 12-56mm |
| Glass from the ground | 460-560mm |
| Coating speed | 5m-40m/min |
| Coating Depth | ˃18mm |
| Pressure | ˂350kg/cm2 |
| Degree Angle | 60-90 |
| Power supply | 15kw |
| Air supply | 0.5-0.7Mpa |
| Dimension(L*W*H) | 9500*3500*3800 |
| Weight | 5000kg |
