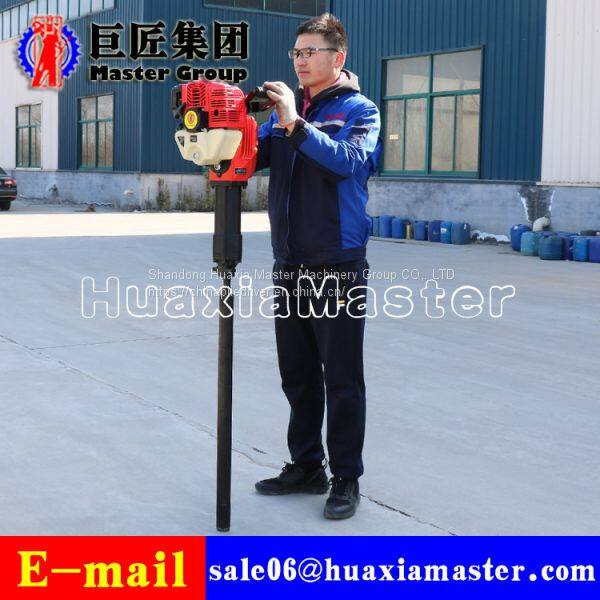

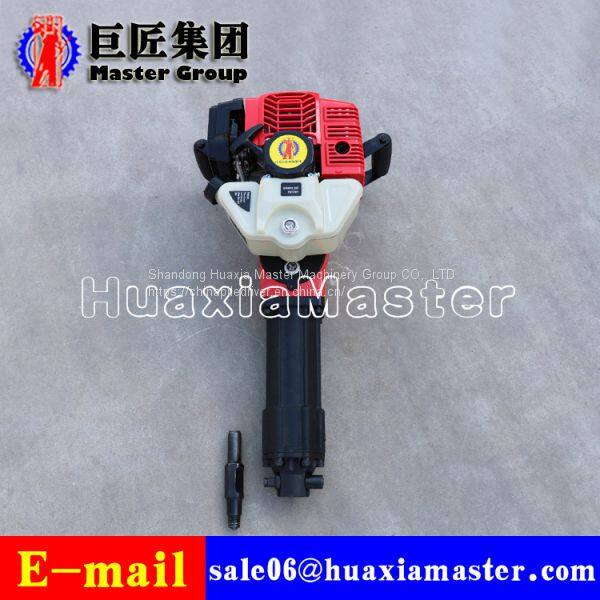

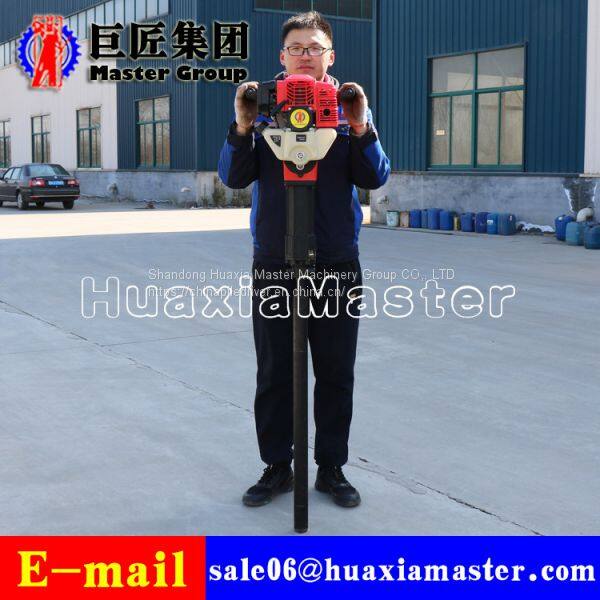

QTZ-2 Portable Soil Sampling Rig
1. The brief introduction of QTZ-2 portable drilling rig
QTZ-2 portable soil drilling rig is a upgraded product of the QTZ-1 portable soil drilling rig.The rig adopts the more power, and the impact force is stronger and the drilling depth is deeper, which can drill up to 10~15 meters.
2. The applications of QTZ-2 portable soil drilling rig
l Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
l Groundwater survey; coastal geological survey; wetland environment investigation.
l Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
1. The technical parameters of QTZ-2 portable soil drilling rig
QTZ-2 portable earth drilling rig | ||
|
Power |
power |
3.3HP |
lighter way |
backflush pull rope |
|
oil consumption |
0.55 l/h |
|
Impact times |
1650r/min |
|
Impact energy |
35J-65J |
|
Core depth |
10m-15m |
|
Host weight |
25kg |
|

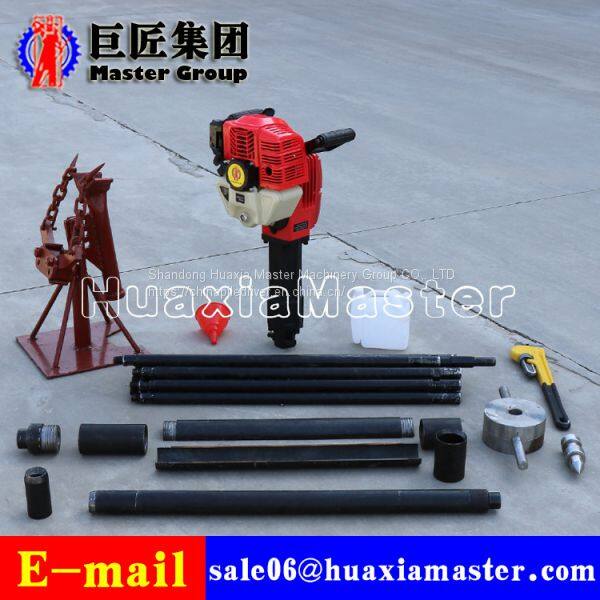

4.The Configurations List of QTZ-2
Item |
Parameter |
Platform |
Quantity |
Portable earth drill |
QTZ-2 |
set |
1 |
Side buckle impact take over |
32*150 |
pc |
1 |
Tapered tap |
32*80 |
pc |
13 |
Drill pipe |
32*700 |
pc |
13 |
Taper tap |
32*100 |
pc |
13 |
Reducing nipple |
32*50 |
pc |
1 |
Collar |
50*150 |
pc |
1 |
Open tube |
50*600 |
pc |
1 |
Double-edged pipe boots |
50*100 |
pc |
2 |
Reducing nipple |
32*70 |
pc |
1 |
Collar |
70*150 |
pc |
1 |
Open tube |
70*600 |
pc |
1 |
Inner edge pipe boots |
70*100 |
pc |
1 |
Outer edge pipe boots |
70*100 |
pc |
1 |
Portable sounding hammer |
10kg |
pc |
1 |
Sounding the reducing nipple |
32 |
pc |
1 |
Double sided hand |
32 |
pc |
1 |
Touch probe |
32 |
pc |
1 |
Puller |
three force arm |
set |
1 |
The ratio of oil |
25:1 |
pc |
1 |
Oil funnel |
pc |
1 |
|
Pipe wrench |
80mm |
hold |
1 |
Special internal six party |
multi-function |
1 |
|
Wrench |
24/27 |
1 |
|
Internal six party |
#6 |
1 |
|
Six prismatic wrench |
1 |
||
Spark plug wrench |
1 |
||
Screw driver |
1 |
||
Spare spark plug |
1 |
