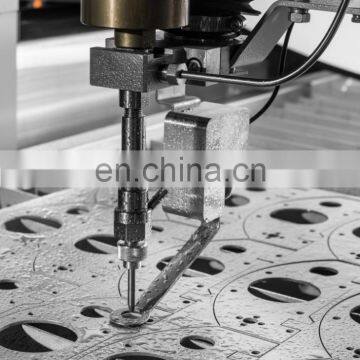

CNC high pressure waterjet marble cutting machine
It takes ordinary tap water and pressurize it to 60,000 psi (4,000 bars) and force it through a very small hole. Mix the water with garnet abrasive and you have a very thin stream of water traveling very fast that will rapidly erode most materials. It can be used to cut nearly any material in the world, any metal, stone, glass, tile, plastic, rubber, composites and etc.
CNC waterjet glass machine can cut almost any material. Pure water jets can quickly and accurately cut soft materials such as rubber, foam and other gasket material. Abrasive water jets can cut almost any other material over a very wide range of thichness:
The features cnc glass machine
1 It does not cause heat effect or detormation or tiny cracks
2 It can cut any complex and flat figures
3 Narrow kerfs
4 Smooth incision
5 Minimize dust and toxic fumes, provice healthier working environment
6 It can be adjested easily and quickly by the designs and materials
7 Low processing cost in unit time
8 Components are of high quality and spare parts are cheap
9 Drilling holes to avoid water permeate the composite materials
10 Reduce setting time and fixture cost
The cutting speed for cnc waterjet glass machine
The cutting speed of CNC waterjet glass machine varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration. Generally for APW waterjet, you could find the following speed just for your reference.
| Material | Thickness(mm) | Cutting speed of 300Mpa pump(mm/min) | Cutting speed of 380Mpa pump(mm/min) |
| Marble | 20 | 300 | 380 |
| 30 | 200 | 300 | |
| Granite | 20 | 250 | 330 |
| 30 | 150 | 200 | |
| Glass Brick | 12 | 800 | 960 |
| Glass | 5 | 1200 | 1500 |
| 10 | 500 | 600 | |
| 20 | 350 | 420 | |
| Glue Chipped Glass | 10 | 450 | 540 |
| Sponge | 50 | 5000 | 6000 |
| Foam | 50 | 5000 | 6000 |
| Wood | 10 | 1000 | 1200 |
| 50 | 200 | 240 | |
| Steel | 2 | 600 | 720 |
| 4 | 400 | 500 | |
| 6 | 300 | 420 | |
| 8 | 200 | 300 | |
| 10 | 120 | 200 | |
| 15 | 75 | 120 | |
| 20 | 30 | 50 | |
| 60 | 12 | 20 | |
| Laminates | 10 | 1500 | 1800 |
| Aluminum | 5 | 350 | 500 |
| Copper | 5 | 350 | 420 |
Glass Fiber Reinforced Plastic | 2 | 1200 | 1500 |
CNC waterjet marble glass machine is made up of several key componnents, such as intensifier pump; cutting table with cutting head; CNC controller; auto abrasive delivery system.
Dual-Core Waterjet Debut
APW pioneered “Dual-Core” waterjet, which integrated SIEMENS motor, imported REXROTH hydraulic pump and hydraulic valves assembly, American A&V intensifier, American high pressure tube and stainless steel water tank. This dual intensifiers design (for mini waterjet cutting machine ) represents another landmark in APW history.
They has been widely used in all APW waterjet series. UP to now, APW is still the only waterjet manufacturer holding this advanced technology in China.
Imported components
We adopt the imported component for the glass machine like Rexroth hydraulic pump; USA intensifier; Siemens motor;Omron PLC; Yaskawa servo drive; Yuken direction control valves etc. The whole parts of Intensifier are assembled in USA (not just some parts), most of the smaller parts are also imported from USA to ensure its good stability during cutting, durability and long working service life.
CNC waterjet glass machine be packed in standard packing, suitable for long distance ocean transportation and well protected against damage, moisture, shock, rust and handing.
CNC waterjet glass machine have got the consistant high praise from the customer at home and abroad during the 15 years development, there are many successful stories related to APW cnc waterjet glass cutting machine, we are looking forward to seeing you in our picture wall.
